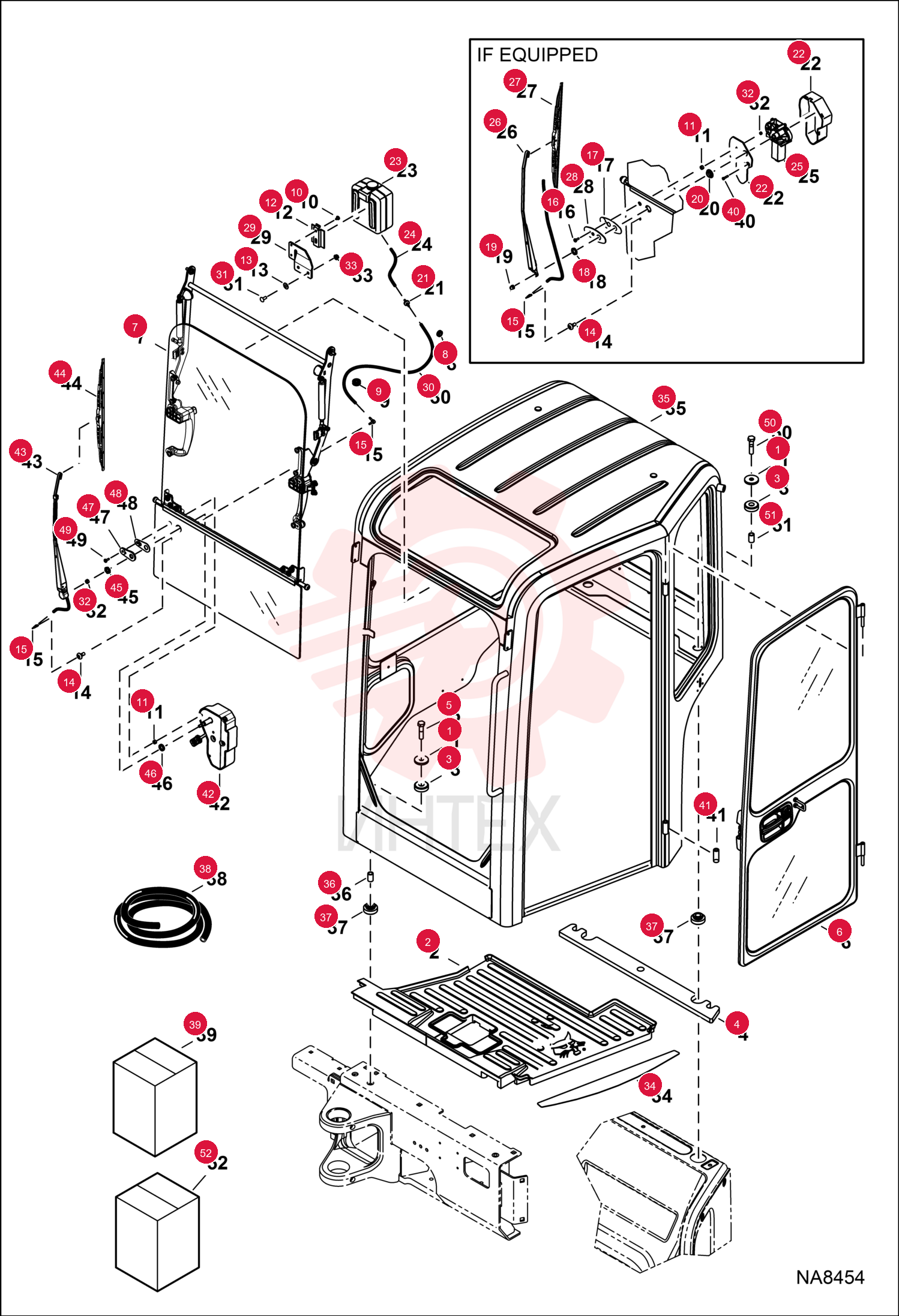

WASHER 6805244 (2)

WASHER 6805244 (2)

WASHER 6805244 (2)

1 6805244

  • 6805244 - WASHER

2 7232439

  • 7232439 - MAT
  • FLOOR

3 7187368

  • 7187368 - SEAL
  • CROSSMEMBER

4 7CM1460

  • 7CM1460 - SCREW

5 7188990

  • 7188990 - DOOR
  • CAB ASSY
  • Was 7157151

6 515069

  • 515069 - GROMMET

7 6587887

  • 6587887 - GROMMET

8 26GM6016

  • 26GM6016 - BOLT
  • Was 6589675

9 6664085

  • 6664085 - BUSHING NYLON

10 6664557

  • 6664557 - BRACKET

11 6675859

  • 6675859 - RETAINER

12 6676499

  • 6676499 - GROMMET WIPER

13 6676917

  • 6676917 - ELBOW INTERIOR

14 6676500

  • 6676500 - ELBOW EXTERIOR

15 6677837

  • 6677837 - BOLT

16 6677839

  • 6677839 - GASKET

17 6677842

  • 6677842 - NUT

18 6677843

  • 6677843 - NUT

19 6677847

  • 6677847 - GROMMET

20 6682462

  • 6682462 - VALVE
  • CHECK

21 6685140

  • 6685140 - COVER

22 6691499

  • 6691499 - TANK ASSEMBLY
  • W/ 6664554 pump

23 6664554

  • 6664554 - PUMP
  • WIPER WASHER

24 7008934

  • 7008934 - MOTOR
  • WIPER
  • shaft w/ 18mm thread

25 7008936

  • 7008936 - ARM
  • WIPER

26 7008937

  • 7008937 - BLADE
  • WIPER WINDOW

27 7009047

  • 7009047 - PLATE

28 7220329

  • 7220329 - BRACKET
  • TANK
  • Was 7172778

29 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

30 53DM8

  • 53DM8 - NUT HX THDLK PREAPPL
  • Was 4DM5

31 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

32 7180283

  • 7180283 - TREAD
  • SAFETY

33 6989497

  • 6989497 - INSTRUCTIONS

34 7240692

  • 7240692 - KIT
  • CAB
  • Includes decals and 6990465 instruction - Was 7184146

35 6990465ENUS

  • 6990465ENUS - INSTRUCTIONS
  • Was 6990465

36 7240688

  • 7240688 - KIT
  • CAB
  • Includes top
  • side
  • & rear windows & 6989497 instruction - Order decals as needed

37 6708310

  • 6708310 - HOSE
  • BULK/FT 100
  • clear - 0.154" ID - sold per foot

38 7174043

  • 7174043 - MOUNT
  • LOAD ISOLATOR ASSY
  • Ref. 3
  • 36
  • & 37 - includes 1 top assy

39 6681911

  • 6681911 - SCREW

40 6719341

  • 6719341 - TUBE
  • HINGE

41 7248444

  • 7248444 - MOTOR
  • WIPER
  • shaft w/ 16mm thread

42 7248446

  • 7248446 - ARM
  • WIPER

43 7248447

  • 7248447 - BLADE
  • WIPER

44 7249625

  • 7249625 - NUT
  • Was 7255635

45 7255630

  • 7255630 - GASKET WINDOW
  • Was 7249632

46 7249647

  • 7249647 - PLATE
  • FACE

47 7254926

  • 7254926 - GASKET
  • Was 7249648

48 7270387

  • 7270387 - SCREW

49 7CM1480

  • 7CM1480 - BOLT

50 7188968

  • 7188968 - MOUNT
  • CAB
  • Ref. 3
  • 37 & 51 - includes 1 rear assy
