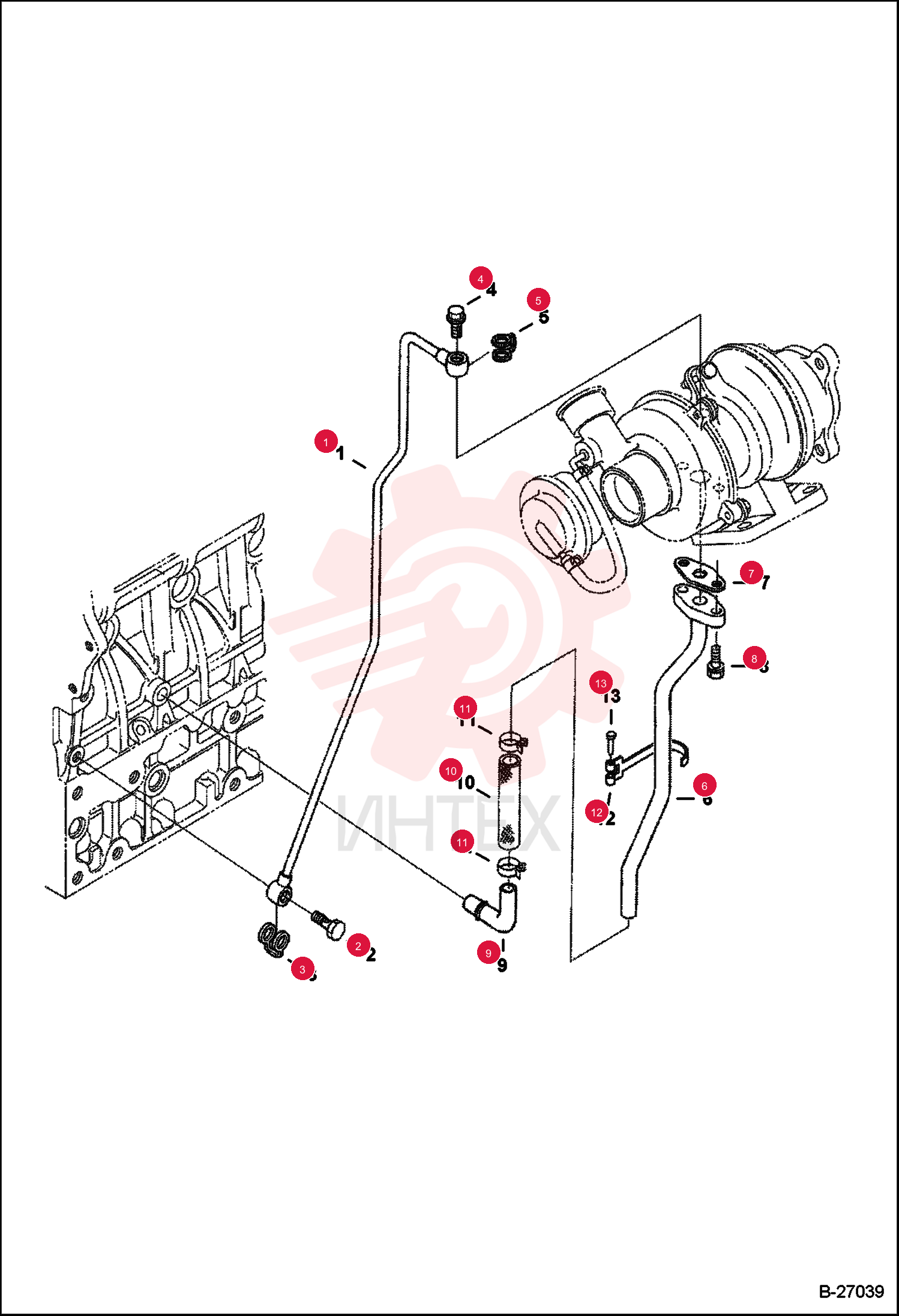

PIPE, OIL 6698239 (2)

PIPE, OIL 6698239 (2)

PIPE, OIL 6698239 (2)

1 6698239

  • 6698239 - PIPE
  • OIL

2 7022765

  • 7022765 - BOLT
  • EYE
  • Was 7022765

3 6689331

  • 6689331 - GASKET

4 6685598

  • 6685598 - BOLT
  • eye joint

5 7000642

  • 7000642 - WASHER
  • SEALING COPPER

6 7010202

  • 7010202 - PIPE
  • OIL

7 6680570

  • 6680570 - GASKET
  • oil return tube

8 1CM614

  • 1CM614 - SCREW HEX CAP
  • Was 4CM614

9 6684884

  • 6684884 - PIPE
  • oil return

10 6685600

  • 6685600 - PIPE
  • oil return

11 6675618

  • 6675618 - CLAMP

12 6685601

  • 6685601 - CLAMP

13 6680576

  • 6680576 - PIN
  • band
