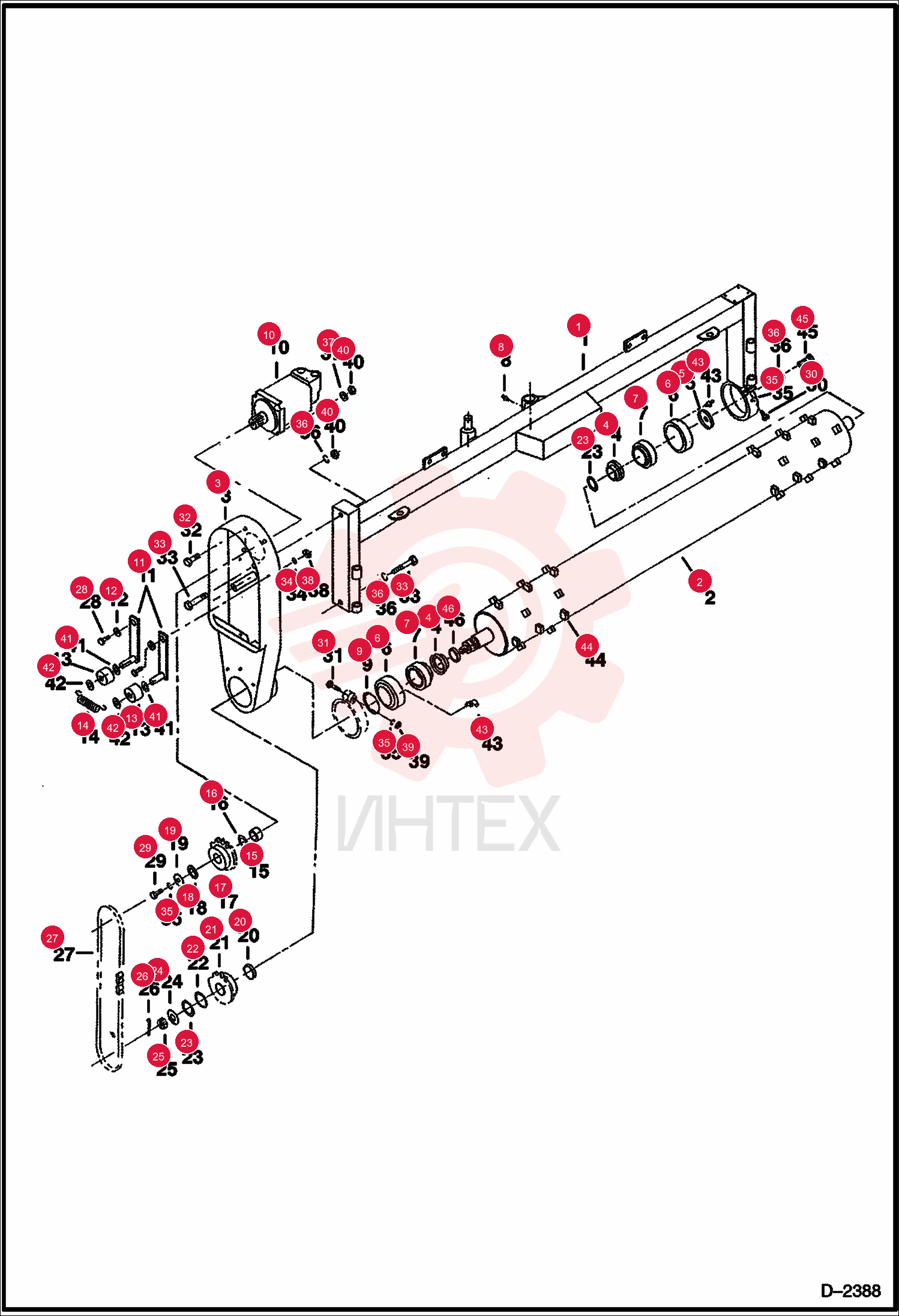

FRAME 6666982 (2)
1 6666982
- 6666982 - FRAME
2 6674517
- 6674517 - ROLLER ASSEMBLY
- W/Ref. 44 - with carbide teeth
3 6666980
- 6666980 - HOUSING
4 6670735
- 6670735 - COLLAR
5 6670736
- 6670736 - BRG CAP
6 6666948
- 6666948 - HOUSING
7 6666947
- 6666947 - BEARING
8 10H35
- 10H35 - FTG GREASE STRAIGHT
9 6667117
- 6667117 - O-RING
10 6666934
- 6666934 - MOTOR ASSEMBLY
11 6666977
- 6666977 - ARM
12 6666976
- 6666976 - BUSHING
13 6666975
- 6666975 - ROLLER
14 6666974
- 6666974 - SPRING
15 6666973
- 6666973 - COLLAR
16 6666992
- 6666992 - BUSHING
17 6666991
- 6666991 - SPROCKET
18 6666990
- 6666990 - BUSHING
19 6666989
- 6666989 - WASHER
20 6670737
- 6670737 - SLEEVE
21 6670738
- 6670738 - SPROCKET
22 6670739
- 6670739 - BUSHING
23 6670740
- 6670740 - BUSHING
24 6670741
- 6670741 - WASHER
25 6670742
- 6670742 - NUT
- Slotted jam
26 1F624
- 1F624 - PIN
27 6666984
- 6666984 - CHAIN
- #60
28 6515191
- 6515191 - LINK
- connector
29 17C520
- 17C520 - BOLT 5
30 17C612
- 17C612 - SCREW HEX CAP
31 17C620
- 17C620 - BOLT
32 17C632
- 17C632 - BOLT 5
33 17C832
- 17C832 - BOLT
34 17C848
- 17C848 - BOLT
35 4E5
- 4E5 - WASHER
36 4E6
- 4E6 - WASHER
37 4E8
- 4E8 - WASHER
38 28E8
- 28E8 - WASHER
39 85D5
- 85D5 - NUT PRETRQ HEX LOCK
40 85D6
- 85D6 - NUT PRETRQ HEX LOCK
41 85D8
- 85D8 - NUT PRETRQ HEX LOCK
42 6666983
- 6666983 - WASHER
43 6670743
- 6670743 - WASHER
- pinned
44 12H25
- 12H25 - FITTING
45 6674518
- 6674518 - TOOTH
- carbide - hardening not required
46 18C816
- 18C816 - BOLT
47 6670744
- 6670744 - SPACER
