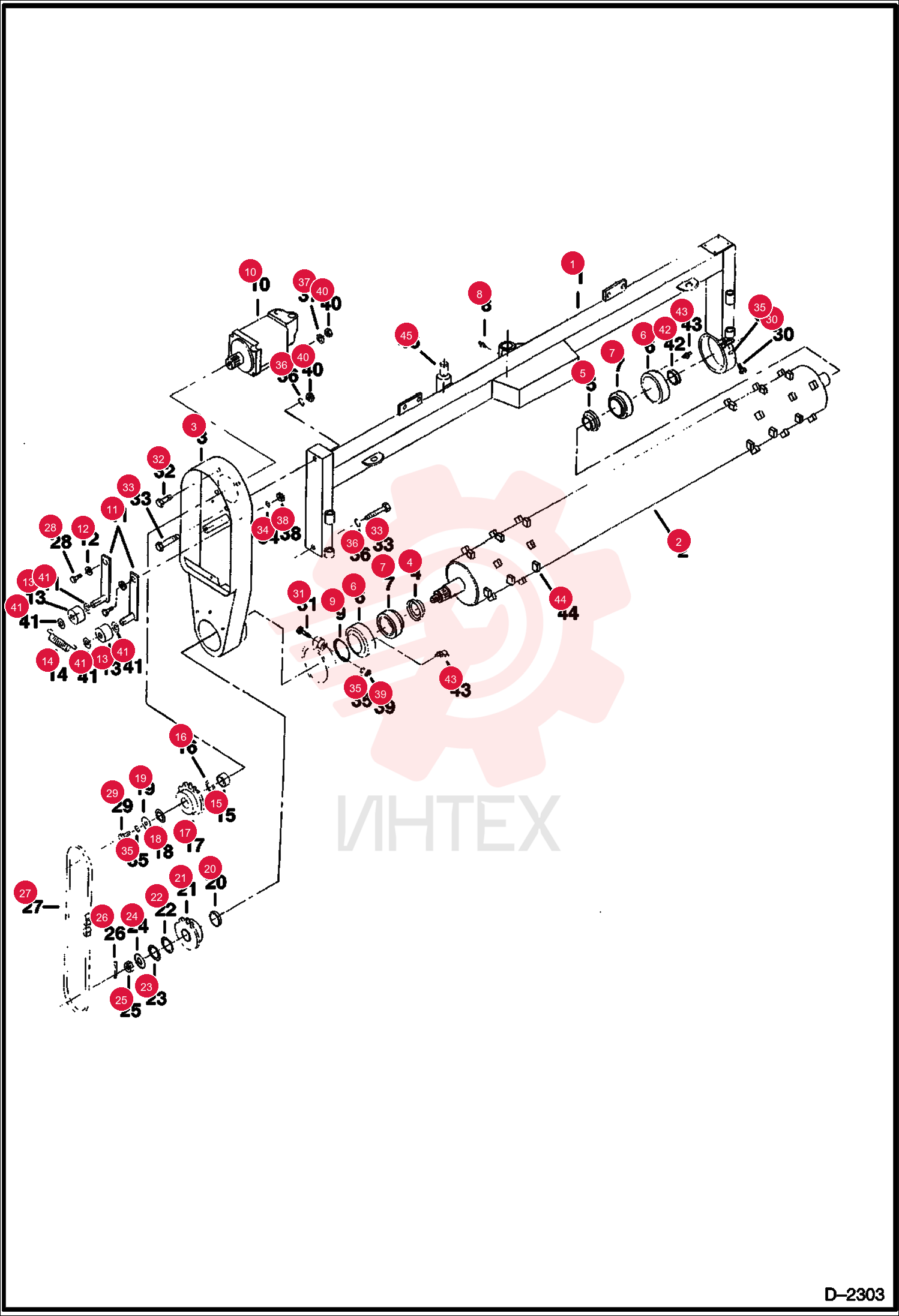

FRAME 6666982 (1)
1 6666982
- 6666982 - FRAME
2 6675241
- 6675241 - ROLLER ASSEMBLY
- W/Ref. 44 - with carbide teeth
3 6666980
- 6666980 - HOUSING
4 6666979
- 6666979 - COLLAR
5 6666978
- 6666978 - COLLAR
6 6666948
- 6666948 - HOUSING
7 6666947
- 6666947 - BEARING
- W/Ref. 42
8 10H35
- 10H35 - FTG GREASE STRAIGHT
9 6667117
- 6667117 - O-RING
10 6666934
- 6666934 - MOTOR ASSEMBLY
11 6666977
- 6666977 - ARM
12 6666976
- 6666976 - BUSHING
13 6666975
- 6666975 - ROLLER
14 6666974
- 6666974 - SPRING
15 6666973
- 6666973 - COLLAR
16 6666992
- 6666992 - BUSHING
17 6666991
- 6666991 - SPROCKET
18 6666990
- 6666990 - BUSHING
19 6666989
- 6666989 - WASHER
20 6666988
- 6666988 - SLEEVE
21 6666987
- 6666987 - SPROCKET
22 6666986
- 6666986 - BUSHING
23 6666985
- 6666985 - BUSHING
24 25E27
- 25E27 - WASHER
25 3D12
- 3D12 - NUT
- Slotted
26 1F524
- 1F524 - PIN
27 6666984
- 6666984 - CHAIN
- #60
28 17C520
- 17C520 - BOLT 5
29 17C612
- 17C612 - SCREW HEX CAP
30 17C620
- 17C620 - BOLT
31 17C632
- 17C632 - BOLT 5
32 17C832
- 17C832 - BOLT
33 17C848
- 17C848 - BOLT
34 4E5
- 4E5 - WASHER
35 4E6
- 4E6 - WASHER
36 4E8
- 4E8 - WASHER
37 28E8
- 28E8 - WASHER
38 85D5
- 85D5 - NUT PRETRQ HEX LOCK
39 85D6
- 85D6 - NUT PRETRQ HEX LOCK
40 85D8
- 85D8 - NUT PRETRQ HEX LOCK
41 6666983
- 6666983 - WASHER
42 12H25
- 12H25 - FITTING
43 6674518
- 6674518 - TOOTH
- carbide - hardening not required
44 6686862
- 6686862 - MOUNT
- CYLINDER
- cylinder - replaces pin as cylinder mount - includes mount
- bolt & instructions
