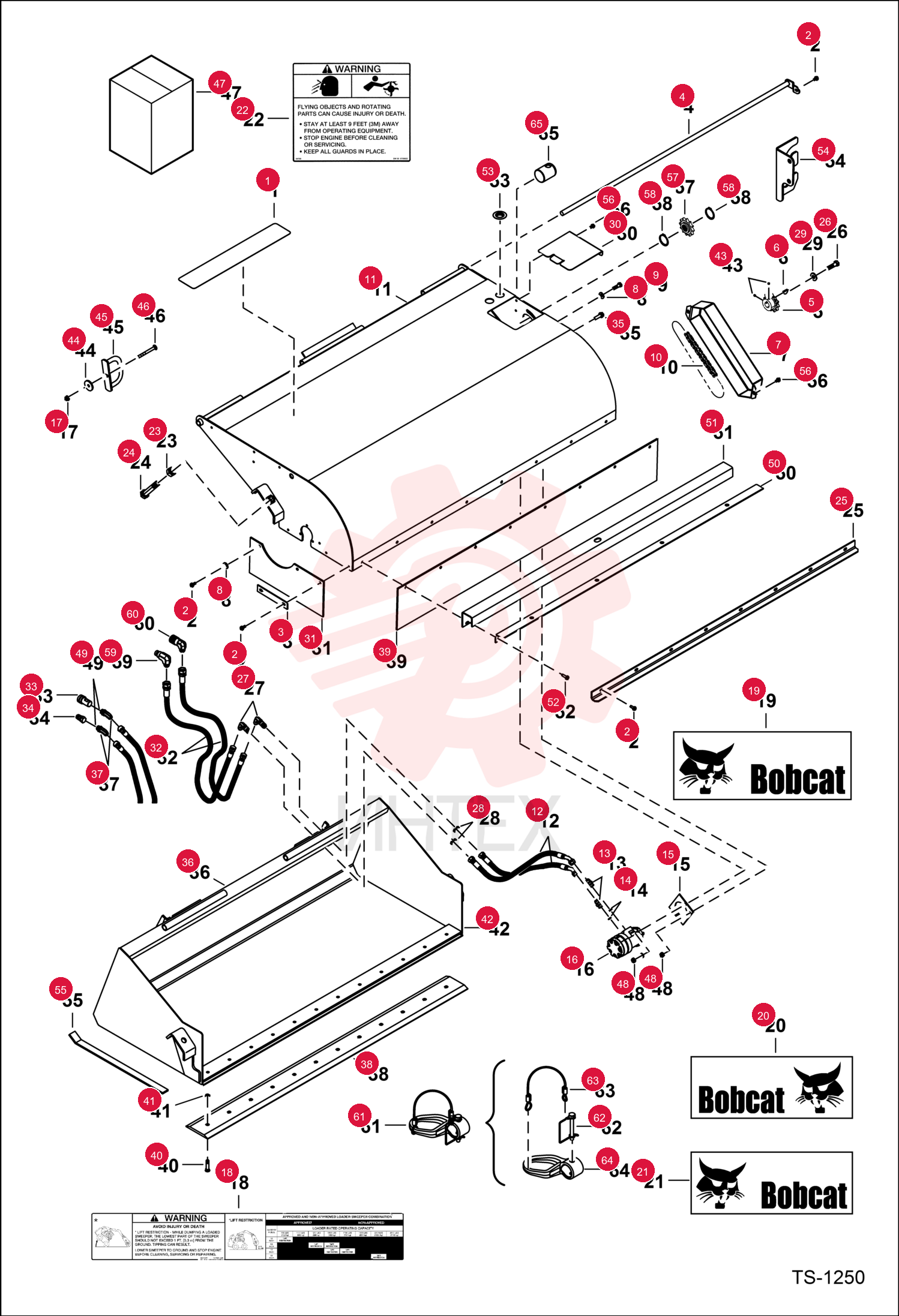

STEP 6905990
1 6905990
- 6905990 - STEP
2 84G3716
- 84G3716 - SCREW THD ROLLING TT
3 6707160
- 6707160 - PLATE
4 6594364
- 6594364 - HINGE PIN
- 72"
5 6591249
- 6591249 - HINGE PIN
- 60"
6 6594792
- 6594792 - PIN
- HINGE
- 54''
7 6813246
- 6813246 - SPROCKET
- SWEEPER
- 12 Teeth - Use with keyed motor shaft - Was 6594342
8 6634899
- 6634899 - KEY
- WOODRUFF
- woodruff - Use W/Ref. 5
9 6707162
- 6707162 - GUARD
- COVER SPROCKET
- chain
10 27E8
- 27E8 - WASHER 10
11 17C828
- 17C828 - BOLT
- Was 17C832
12 6594642
- 6594642 - CHAIN
- DRIVE
13 6515191
- 6515191 - LINK
- press fit connector
14 6632387
- 6632387 - LINK
- CONNECTING
- W/clip connector
15 6707830
- 6707830 - FRAME
- 54''
16 6707841
- 6707841 - FRAME
- SWEEPER 72"
- 72"
17 6707151
- 6707151 - FRAME
- 60"
18 6537694
- 6537694 - HOSE
- Use for all sweepers
19 15KB1010
- 15KB1010 - FITTING
- HYD CONNECTOR
- W/Ref. 14 - Was 15K000007B
20 79K10
- 79K10 - O RING 10
21 7125868
- 7125868 - MOUNT
- 6
- 35 mm (.25") thick - Use with Eaton 104-3155-006 & 104-3938-006 motor
22 6594341
- 6594341 - PLATE
- 4
- 3 mm (.17") thick - Use with Eaton 103-1037-010 motor
23 85D6
- 85D6 - NUT PRETRQ HEX LOCK
24 7130142
- 7130142 - DECAL
- WARNING
- - no-text
25 7127607
- 7127607 - DECAL
- WARNING
- - Was 6707991
26 6809831
- 6809831 - DECAL
- LOGO BOBCAT AND HEAD
- front cover - Was 6727307
27 6727323
- 6727323 - DECAL
- LOGO BOBCAT AND HEAD
- LH
28 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
- Use on both sides
29 6727324
- 6727324 - DECAL
- LOGO BOBCAT AND HEAD
- RH
30 7130144
- 7130144 - DECAL
- WARNING
- - no-text
31 6708822
- 6708822 - DECAL
- WARNING
32 63D16
- 63D16 - NUT
- Was 61D16
33 6594345
- 6594345 - BOLT
34 6707845
- 6707845 - BRACKET
- 72" - Use on sweepers without Ref. 51
35 6707157
- 6707157 - BRACKET
- 60" - Use on sweepers without Ref. 51
36 6707834
- 6707834 - BRACKET
- 54" - Use on sweepers without Ref. 51
37 17C828
- 17C828 - BOLT
- Use W/Ref. 5 - Was 17C412
38 88F7
- 88F7 - ELBOW
39 86F7
- 86F7 - NUT 5
40 6817775
- 6817775 - WASHER
- Use W/Ref. 5
41 6707156
- 6707156 - COVER
- motor
42 6707161
- 6707161 - SHIELD
- SWEEPER RUBBER
- rubber
43 7170596
- 7170596 - HOSE
- HYD
- 1448 mm (57") long - .875" thread & 1.063" thread - Use with 90 degree couplers
44 6708220
- 6708220 - HOSE
- HYD ASSY
- 1448 mm (57") long - .875" threads - Use with straight couplers
45 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
46 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
47 6598758
- 6598758 - COUPLER FF FEMALE
- straight
48 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
49 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
50 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
51 31C816
- 31C816 - BOLT
- Was 35C820
52 500031SUB
- 500031SUB - BUCKET
- 72"
- 72" - W/Ref. 38
- 40
- 41 & 42 - Was 6707844
53 500030SUB
- 500030SUB - BUCKET
- 60" - W/Ref. 38
- 40
- 41 & 42 - Was 6707146
54 97K12
- 97K12 - O-RING
- flared end
55 6715651
- 6715651 - ELBOW
- Use with flush face couplers - tapered boss face
56 17KB1012
- 17KB1012 - FITTING
- HYD ELBOW
- Use with flush face couplers - flat boss face - Was 1302104B
57 17K7
- 17K7 - ELBOW
- Use with poppet couplers - flat boss face
58 6805368
- 6805368 - EDGE
- CUTTING BOLT-ON 72"
- 54" - Use 39C1032 bolt & 93D10 nut - holes in weld-on edge may have to be drilled to 17
- 5 mm (.688") dia when ordering bolt-on edge
- as the cutting edges now use a larger (5/8") bolt & nut - Was 6706554
59 6805367
- 6805367 - EDGE
- CUTTING BOLT-ON 60"
- 54" - Use 39C1032 bolt & 93D10 nut - holes in weld-on edge may have to be drilled to 17
- 5 mm (.688") dia when ordering bolt-on edge
- as the cutting edges now use a larger (5/8") bolt & nut - Was 6706554
60 6805366
- 6805366 - EDGE
- CUTTING BOLT ON BEVELED REV 53.88"
- 54" - Use 39C1032 bolt & 93D10 nut - holes in weld-on edge may have to be drilled to 17
- 5 mm (.688") dia when ordering bolt-on edge
- as the cutting edges now use a larger (5/8") bolt & nut - Was 6706554
61 6707847
- 6707847 - SHIELD
- SWEEPER RUBBER
- 72" - rubber
62 6707159
- 6707159 - SHIELD
- SWEEPER RUBBER
- 60" - rubber
63 6707836
- 6707836 - SHIELD
- 54" - rubber
64 39C1032
- 39C1032 - BOLT
- 5/8" - Use (9) with 54" bucket
- (10) with 60" bucket & (12) with 72" bucket
65 6704903
- 6704903 - BOLT 5
- 1/2"
66 85D10
- 85D10 - NUT
- 5
- Use Qty. 10 with 60" bucket
67 93D10
- 93D10 - NUT
- 5/8" - Use Qty. 9 with 54"bucket & Qty. 12 with 72" bucket - Was 85D000010B
68 85D8
- 85D8 - NUT PRETRQ HEX LOCK
- 1/2" - Use (9) with 54" bucket
- (10) with 60" bucket & (12) with 72" bucket
69 6707843
- 6707843 - MOUNT
- CUTTING EDGE
- 72"
70 6707150
- 6707150 - MOUNT
- CUTTING EDGE
- 60"
71 6707831
- 6707831 - MOUNT
- CUTTING EDGE
- 54"
72 15G505
- 15G505 - SCREW
- Use W/Ref. 5
73 872229
- 872229 - WASHER
74 6706160
- 6706160 - GUIDE
- HOSE ASSY
75 37C648
- 37C648 - BOLT
- 540's
- 640's & 740s
76 37C664
- 37C664 - BOLT
- 7753
- 853 & 840's
77 37C656
- 37C656 - BOLT
- 750's
78 6716685BR
- 6716685BR - KIT
- TRANSLATION
- translation - BR=Portugese (Brazil) - translation kit includes safety manual
- operators manual and decal kit
79 6716685AR
- 6716685AR - KIT
- TRANSLATION
- translation - AR=Spanish (Argentine) - translation kit includes safety manual
- operators manual and decal kit
80 6716684JP
- 6716684JP - KIT
- DECAL
- decal - JP=Japanese
81 6716684BR
- 6716684BR - KIT
- DECAL
- decal - BR=Portugese (Brazil)
82 6716684AR
- 6716684AR - KIT
- DECAL
- decal - AR=Spanish (Argentine)
83 7184256
- 7184256 - CANOPY U-BOLT NUT 8
- Was 85D8
84 99K12
- 99K12 - O-RING
- tapered boss face
85 79K12
- 79K12 - O RING 10
- for flat boss face
86 6716813
- 6716813 - BRACE 72"
- 72" - Use with Ref. 51
87 6716815
- 6716815 - BRACE 60"
- 60" - Use with Ref. 51
88 6716817
- 6716817 - BRACE 54"
- 54" - Use with Ref. 51
89 6716812
- 6716812 - BRACE 72"
- 72"
90 6716816
- 6716816 - BRACE 54"
- 54"
91 6716814
- 6716814 - BRACE 60"
- 60"
92 84G3720
- 84G3720 - SCREW THD ROLLING TT
93 6676173
- 6676173 - PLUG
94 6808305
- 6808305 - BRACKET
95 6730269
- 6730269 - SKID BAR
96 84G3712
- 84G3712 - SCREW THD ROLLING TT
97 7165291
- 7165291 - SPROCKET
- splined
98 21J20
- 21J20 - RING
- SNAP
- Use W/Ref. 57
99 7246795
- 7246795 - COUPLER
- FF MALE
- - 90 degree - Was 7168432
100 7246781
- 7246781 - COUPLER
- FF FEMALE
- - 90 degree - Was 7168433
101 7161953
- 7161953 - GUIDE
- HOSE ASSY
- Ref. 62-64
102 7161559
- 7161559 - PIN
- SNAPPER
103 6558310
- 6558310 - SLEEVE
104 6558309
- 6558309 - CABLE BULK/FT
- bulk - sold per foot
105 7170300
- 7170300 - PIN
- PIVOT
