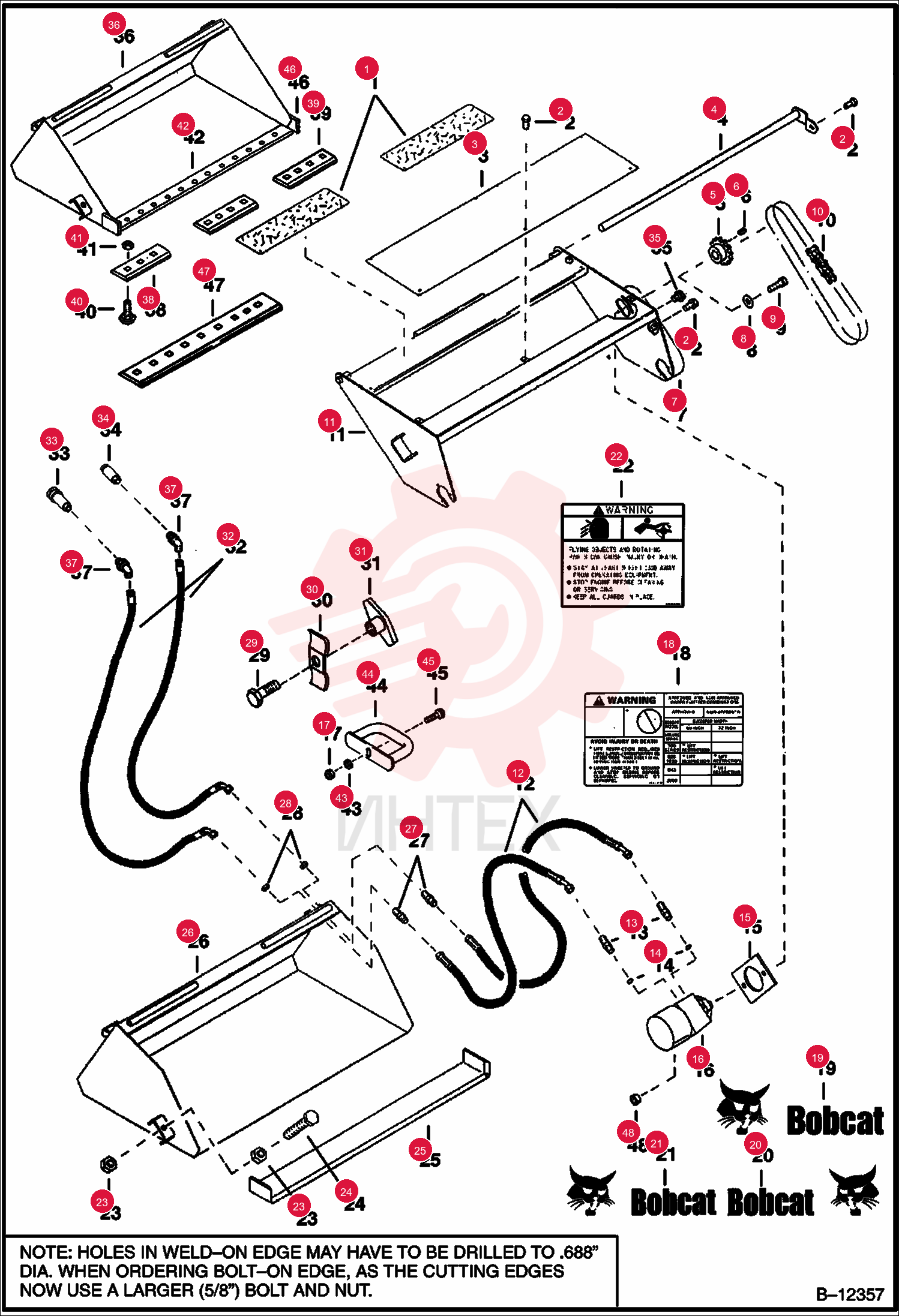

TREAD, SAFETY 6569233
1 6569233
- 6569233 - TREAD
- SAFETY
2 84G3712
- 84G3712 - SCREW THD ROLLING TT
3 6594388
- 6594388 - COVER
- 72" (1828
- 8mm)
4 6594382
- 6594382 - COVER
- 60" (1524mm)
5 6594797
- 6594797 - COVER
- 54" (1371
- 6mm)
6 6594792
- 6594792 - PIN
- HINGE
- 54" (1371
- 6mm)
7 6591249
- 6591249 - HINGE PIN
- 60" (1524mm)
8 6594364
- 6594364 - HINGE PIN
- 72" (1828
- 8mm)
9 6813246
- 6813246 - SPROCKET
- SWEEPER
- 12 Teeth - Was 6594342
10 15G505
- 15G505 - SCREW
11 6634899
- 6634899 - KEY
- WOODRUFF
- woodruff
12 6594348
- 6594348 - CHAIN G A
13 6594483
- 6594483 - HINGE
- guard
14 27E8
- 27E8 - WASHER 10
15 17C828
- 17C828 - BOLT
16 6594642
- 6594642 - CHAIN
- DRIVE
17 6515191
- 6515191 - LINK
- connector
- press fit
18 6632387
- 6632387 - LINK
- CONNECTING
- connector
- W/Clip
19 6594789
- 6594789 - FRAME
- 54" (1371
- 6mm)
20 6705476
- 6705476 - FRAME
- 60" (1524mm)
21 6705478
- 6705478 - FRAME
- 72" (1828
- 8mm)
22 6537694
- 6537694 - HOSE
- Was 6594372
23 15K7
- 15K7 - FITTING
- W/Ref. 14
24 79K10
- 79K10 - O RING 10
25 6594341
- 6594341 - PLATE
26 85D6
- 85D6 - NUT PRETRQ HEX LOCK
- Was 85D000008B
27 6531055
- 6531055 - DECAL
- WARNING
- warning - Was 6594379
28 6809831
- 6809831 - DECAL
- LOGO BOBCAT AND HEAD
- Was 6727307
29 6727323
- 6727323 - DECAL
- LOGO BOBCAT AND HEAD
30 6727324
- 6727324 - DECAL
- LOGO BOBCAT AND HEAD
31 6708822
- 6708822 - DECAL
- WARNING
- - Was 6577324
32 7130144
- 7130144 - DECAL
- WARNING
- - no-text
33 61D16
- 61D16 - LCKNUT
34 6594345
- 6594345 - BOLT
35 6594397
- 6594397 - EDGE
- CUTTING WELD ON 55.09"
- 54" (1371
- 6mm)
36 6577904
- 6577904 - EDGE
- CUTTING WELD-ON 60"
- 60" (1524mm) - Was 6594393
37 6594356
- 6594356 - EDGE
- CUTTING WELD ON BEVELED 73"
- 72" (1828
- 8mm)
38 45K7
- 45K7 - CONNECTR
39 86F7
- 86F7 - NUT 5
40 17C680
- 17C680 - BOLT
41 6563353
- 6563353 - CLAMP
42 6647668
- 6647668 - KNOB
- plastic
43 6594371
- 6594371 - HOSE
44 6598758
- 6598758 - COUPLER FF FEMALE
- straight
45 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
46 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
47 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
48 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
49 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
50 35C820
- 35C820 - BOLT
- Was 6511995
51 17K7
- 17K7 - ELBOW
- Use with poppet couplers
52 17KB1012
- 17KB1012 - FITTING
- HYD ELBOW
- Use with flush face couplers - Was 1302104B
53 39C1032
- 39C1032 - BOLT
- 5/8" - Use Qty. 9 with 54" (1372mm) bucket
- Qty. 10 with 60" (1524mm) bucket & Qty. 12 with 72" (1829mm) bucket
54 6704903
- 6704903 - BOLT 5
- 1/2" - Use Qty. 9 with 54" (1372mm) bucket
- Qty. 10 with 60" (1524mm) bucket & Qty. 12 with 72" (1829mm) bucket
55 85D8
- 85D8 - NUT PRETRQ HEX LOCK
- 1/2" - Use Qty. 9 with 54" (1372mm) bucket
- Qty. 10 with 60" (1524mm) bucket & Qty. 12 with 72" (1829mm) bucket
56 93D10
- 93D10 - NUT
- 5/8" - Use Qty. 9 with 54" (1372mm) bucket
- Qty. 10 with 60" (1524mm) bucket & Qty. 12 with 72" (1829mm) bucket - Was 85D000010B
57 6707831
- 6707831 - MOUNT
- CUTTING EDGE
- 54" (1372mm) - Was 6704039
58 6707150
- 6707150 - MOUNT
- CUTTING EDGE
- 60"(1524mm) - Was 6704030
59 6707843
- 6707843 - MOUNT
- CUTTING EDGE
- 72"(1829mm) - Was 6704008
60 872229
- 872229 - WASHER
61 6706160
- 6706160 - GUIDE
- HOSE ASSY
62 37C660
- 37C660 - BOLT
63 6704007
- 6704007 - BRACKET
64 6805367
- 6805367 - EDGE
- CUTTING BOLT-ON 60"
- Uses 39C1032 bolt & 93D10B nut - SEE NOTE - Was 6706554
65 6805368
- 6805368 - EDGE
- CUTTING BOLT-ON 72"
- Uses 39C1032 bolt & 93D10B nut - SEE NOTE - Was 6706554
66 6805366
- 6805366 - EDGE
- CUTTING BOLT ON BEVELED REV 53.88"
- Uses 39C1032 bolt & 93D10B nut - SEE NOTE - Was 6706554
67 85D8
- 85D8 - NUT PRETRQ HEX LOCK
