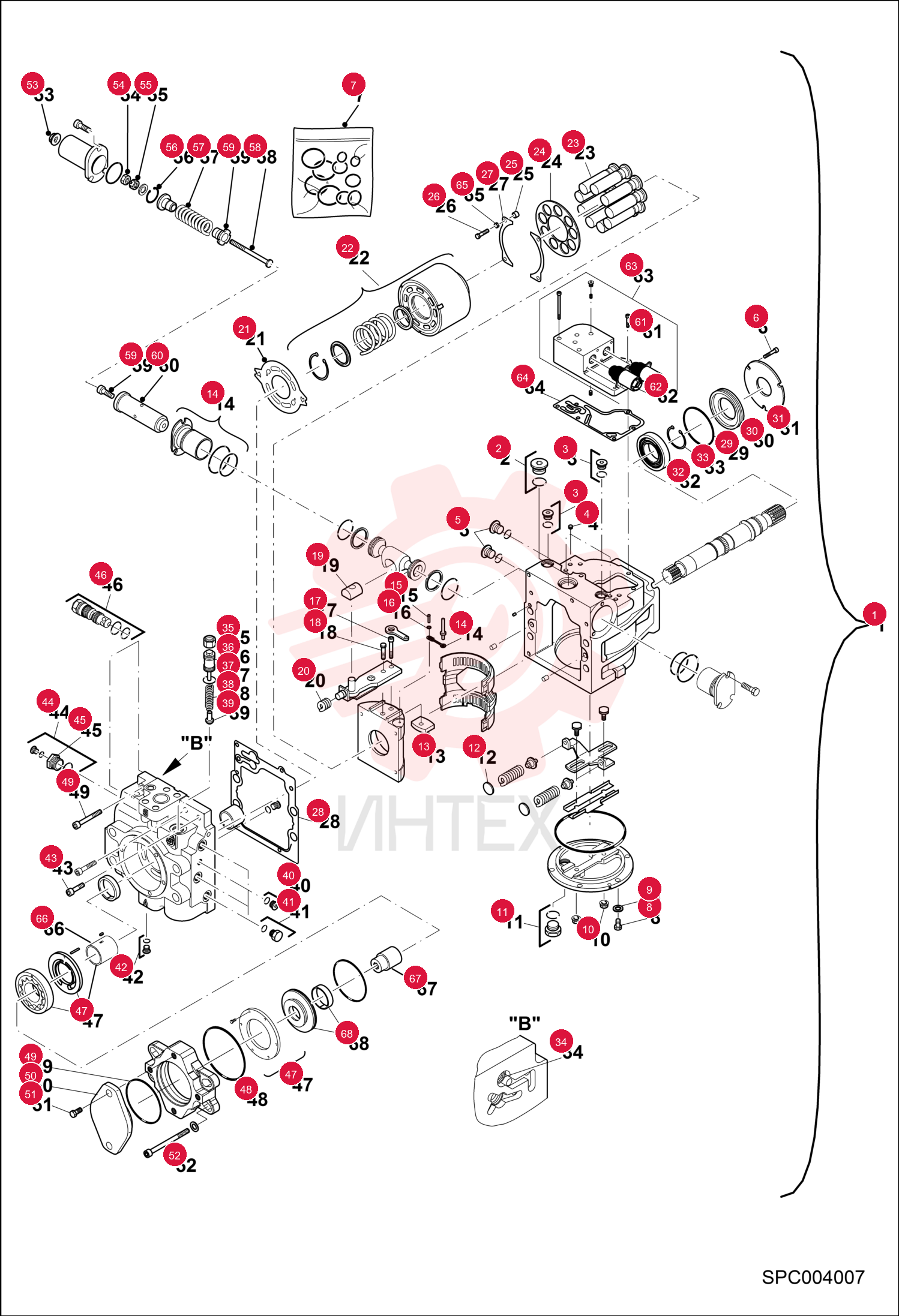

HYDROSTATIC PUMP 6910534 (4)
1 6910534
- 6910534 - HYDROSTATIC PUMP
2 7031336
- 7031336 - PLUG
3 71748.8
- 71748.8 - Plug
4 71641.5
- 71641.5 - Filter
5 71674.6
- 71674.6 - Plug
6 6912067
- 6912067 - SCREW
7 92598.2
- 92598.2 - Seal Kit
8 71717.3
- 71717.3 - Screw
9 71716.5
- 71716.5 - Washer
10 71715.7
- 71715.7 - Seal-lock nut
11 7031336
- 7031336 - PLUG
12 71713.2
- 71713.2 - Washer
13 71678.7
- 71678.7 - Guide
14 71679.5
- 71679.5 - Pin
15 71682.9
- 71682.9 - Pin
16 71681.1
- 71681.1 - Washer
17 71687.8
- 71687.8 - Screw
18 71686.0
- 71686.0 - Screw
19 71685.2
- 71685.2 - Slide nut
20 71684.5
- 71684.5 - Spring
21 98654.7
- 98654.7 - Valve plate
22 6662172
- 6662172 - BLOCK
- CYL
23 98649.7
- 98649.7 - Piston
24 98650.5
- 98650.5 - Plate
25 98652.1
- 98652.1 - Spacer
26 98653.9
- 98653.9 - Screw
27 98651.3
- 98651.3 - Guide
28 6910729
- 6910729 - SEAL
29 6910730
- 6910730 - O'RING
30 6909984
- 6909984 - HOUSING
31 6910732
- 6910732 - SEAL SUPPORT
32 6662144
- 6662144 - BEARING
33 6910740
- 6910740 - CLIP
34 71748.8
- 71748.8 - Plug
35 71633.2
- 71633.2 - Nut
36 71750.4
- 71750.4 - Screw
37 71632.4
- 71632.4 - O-ring
38 71749.6
- 71749.6 - Spring
39 71629.0
- 71629.0 - Cone
40 71748.8
- 71748.8 - Plug
41 6921561
- 6921561 - PLUG
42 71674.6
- 71674.6 - Plug
43 71664.7
- 71664.7 - Screw
44 6912568
- 6912568 - PLUG
45 6912070
- 6912070 - SUPPORT HEAD FILTER
46 81296.6
- 81296.6 - Valve
47 93222.8
- 93222.8 - Charge Pump Assembly
48 7022990
- 7022990 - O-RING
49 71765.2
- 71765.2 - O-ring
50 71766.0
- 71766.0 - Cover
51 71767.8
- 71767.8 - Screw
52 6662163
- 6662163 - SCREW
53 71730.6
- 71730.6 - Nut
54 71729.8
- 71729.8 - Nut
55 71731.4
- 71731.4 - Snap Ring
56 71723.1
- 71723.1 - Spring
57 71727.2
- 71727.2 - Screw
58 71722.3
- 71722.3 - Screw
59 71721.5
- 71721.5 - Sleeve
60 6912067
- 6912067 - SCREW
61 97400.6
- 97400.6 - Valve
62 81615.7
- 81615.7 - Block
63 97332.1
- 97332.1 - Gasket
64 71694.4
- 71694.4 - Washer
65 71760.3
- 71760.3 - COVER ASSEMBLY
