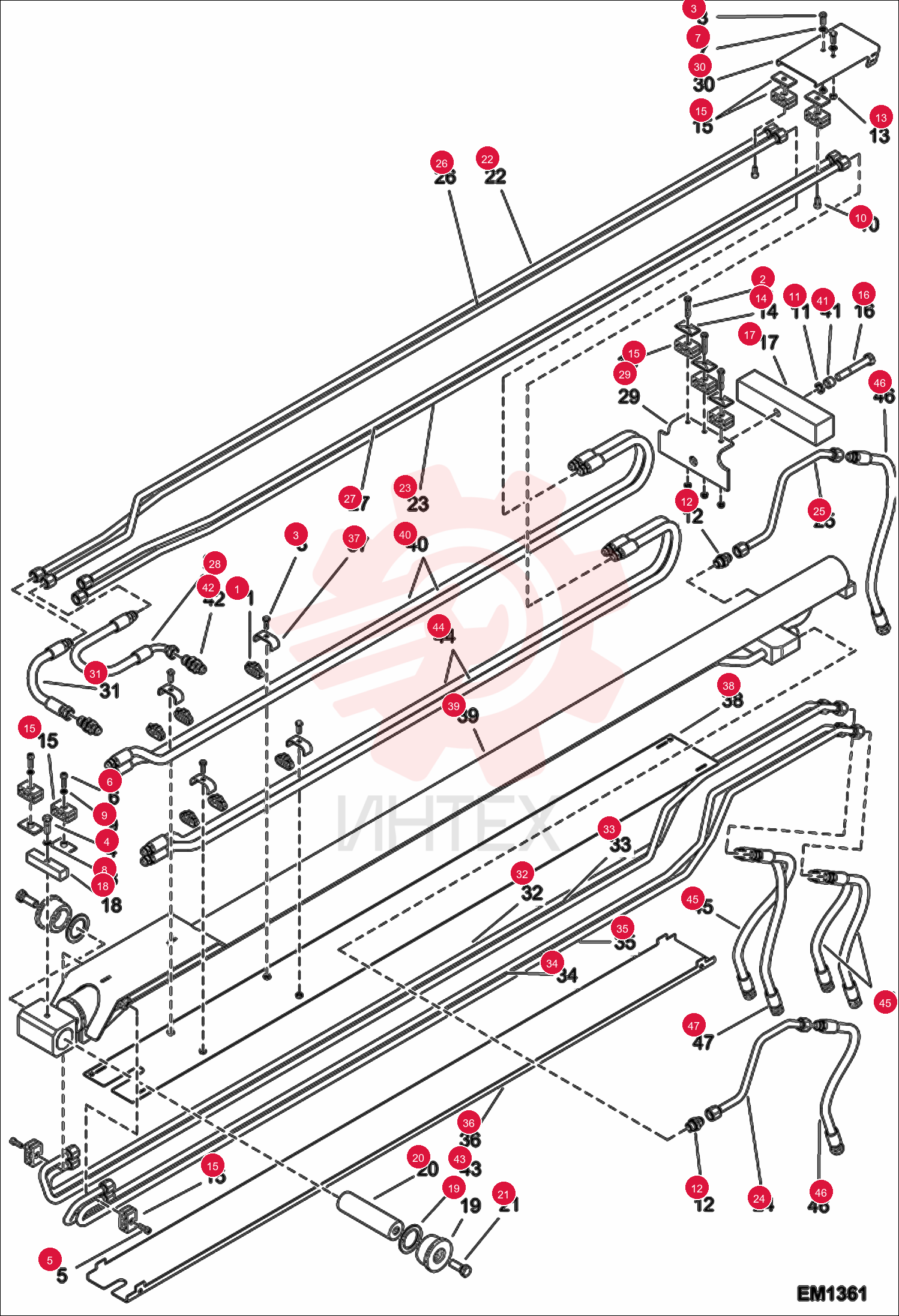

STRAP, TIE 6624289 (1)
1 6624289
- 6624289 - STRAP
- TIE
2 01508.1
- 01508.1 - Screw
3 4CM825
- 4CM825 - BOLT HEX HEAD
4 1CM1040
- 1CM1040 - BOLT
5 01634.5
- 01634.5 - Screw
6 01635.2
- 01635.2 - Screw
7 01697.2
- 01697.2 - Washer
8 01720.2
- 01720.2 - Washer
9 11463.7
- 11463.7 - Washer
10 11968.5
- 11968.5 - Screw
11 13778.6
- 13778.6 - Washer
12 7244942
- 7244942 - FITTING HYDRAULIC CONNECTOR
13 01681.6
- 01681.6 - Nut
14 7228311
- 7228311 - PLATE
15 55932.8
- 55932.8 - Clamp
16 77492.7
- 77492.7 - Screw
17 80366.8
- 80366.8 - Bracket
18 80379.1
- 80379.1 - Bracket
19 80394.0
- 80394.0 - Bearing
20 80395.7
- 80395.7 - Pin
21 84625.3
- 84625.3 - Screw
22 84773.1
- 84773.1 - Pipe
23 84776.4
- 84776.4 - Pipe
24 85433.1
- 85433.1 - Pipe
25 85434.9
- 85434.9 - Pipe
26 85452.1
- 85452.1 - Pipe
27 85453.9
- 85453.9 - Pipe
28 88431.2
- 88431.2 - Hose
29 88507.9
- 88507.9 - Plate
30 89402.2
- 89402.2 - Bracket
31 89457.6
- 89457.6 - Hose
32 92817.6
- 92817.6 - Pipe
33 92818.4
- 92818.4 - Pipe
34 92819.2
- 92819.2 - Pipe
35 92820.0
- 92820.0 - Pipe
36 92822.6
- 92822.6 - Protector
37 95639.1
- 95639.1 - Bracket
38 96447.8
- 96447.8 - Plate
39 96460.1
- 96460.1 - Telescope cylinder
40 96464.3
- 96464.3 - Hose
41 100357-03X
- 100357-03X - PIN
42 100375-52H
- 100375-52H - UNION
43 6913647
- 6913647 - WASHER
44 6916495
- 6916495 - Hose + cable + sleeve
45 6908561
- 6908561 - HOSE TJ 7/8 12
- 7 MJ 7/8 L610
46 7247278
- 7247278 - HOSE HYDRAULIC
47 76366.4
- 76366.4 - Hose
