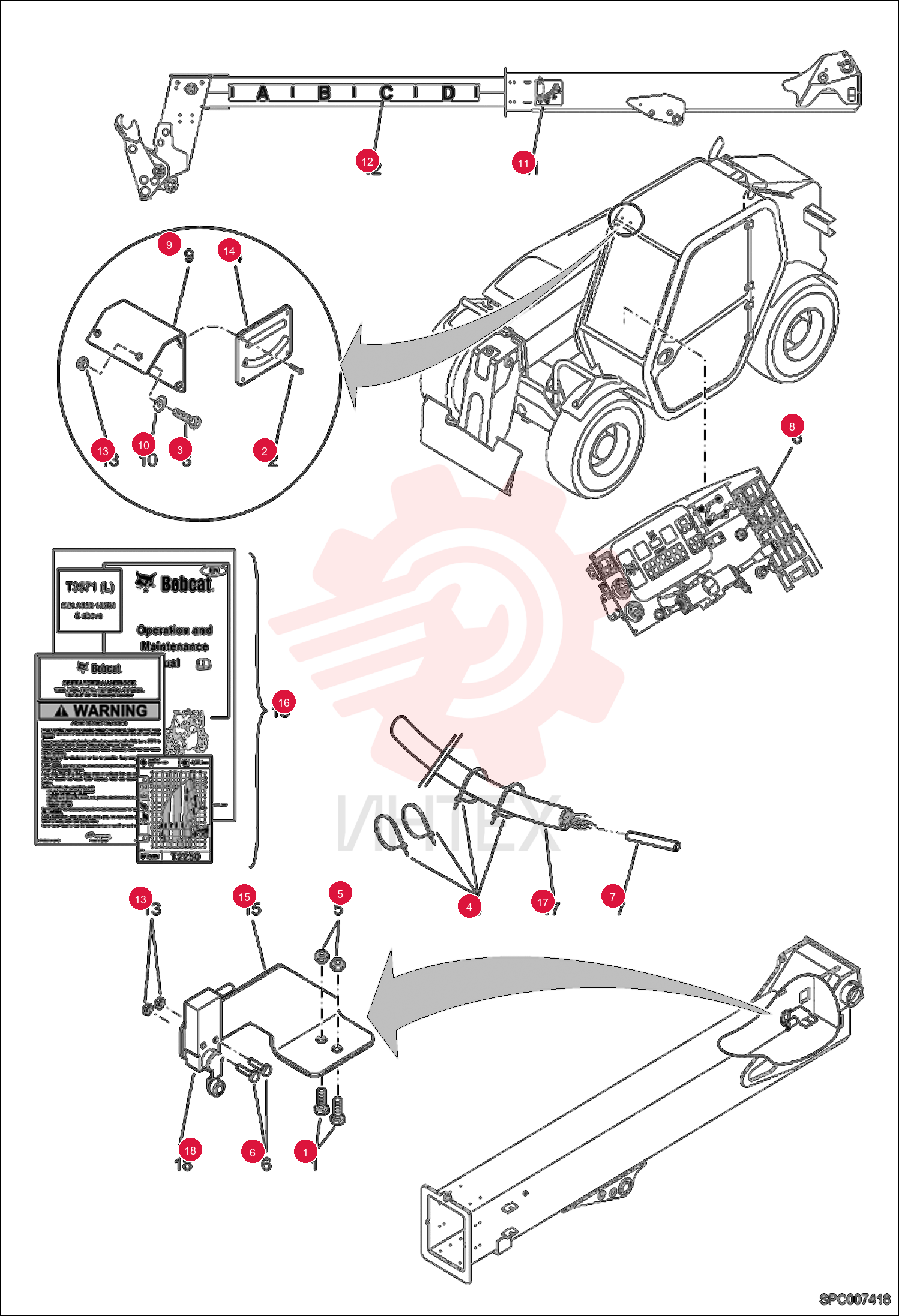

BOLT HEX HEAD 4CM825 (3)

BOLT HEX HEAD 4CM825 (3)

BOLT HEX HEAD 4CM825 (3)

1 4CM825

  • 4CM825 - BOLT HEX HEAD

2 7220283

  • 7220283 - SCREW

3 15354.4

  • 15354.4 - Screw

4 7214998

  • 7214998 - STRAP TIE

5 01681.6

  • 01681.6 - Nut

6 53100.4

  • 53100.4 - Screw

7 80250.4

  • 80250.4 - SHRINK SLEEVE

8 92299.7

  • 92299.7 - Plug

9 92303.7

  • 92303.7 - Bracket

10 94574.1

  • 94574.1 - Washer

11 96658.0

  • 96658.0 - Letters A B C D

12 7199735

  • 7199735 - LOCK HEX NUT M4

13 7220190

  • 7220190 - LEVEL CLINOMETER

14 6914403

  • 6914403 - Support

15 6927124

  • 6927124 - WIRE HARNESS

16 6927132

  • 6927132 - SWITCH
