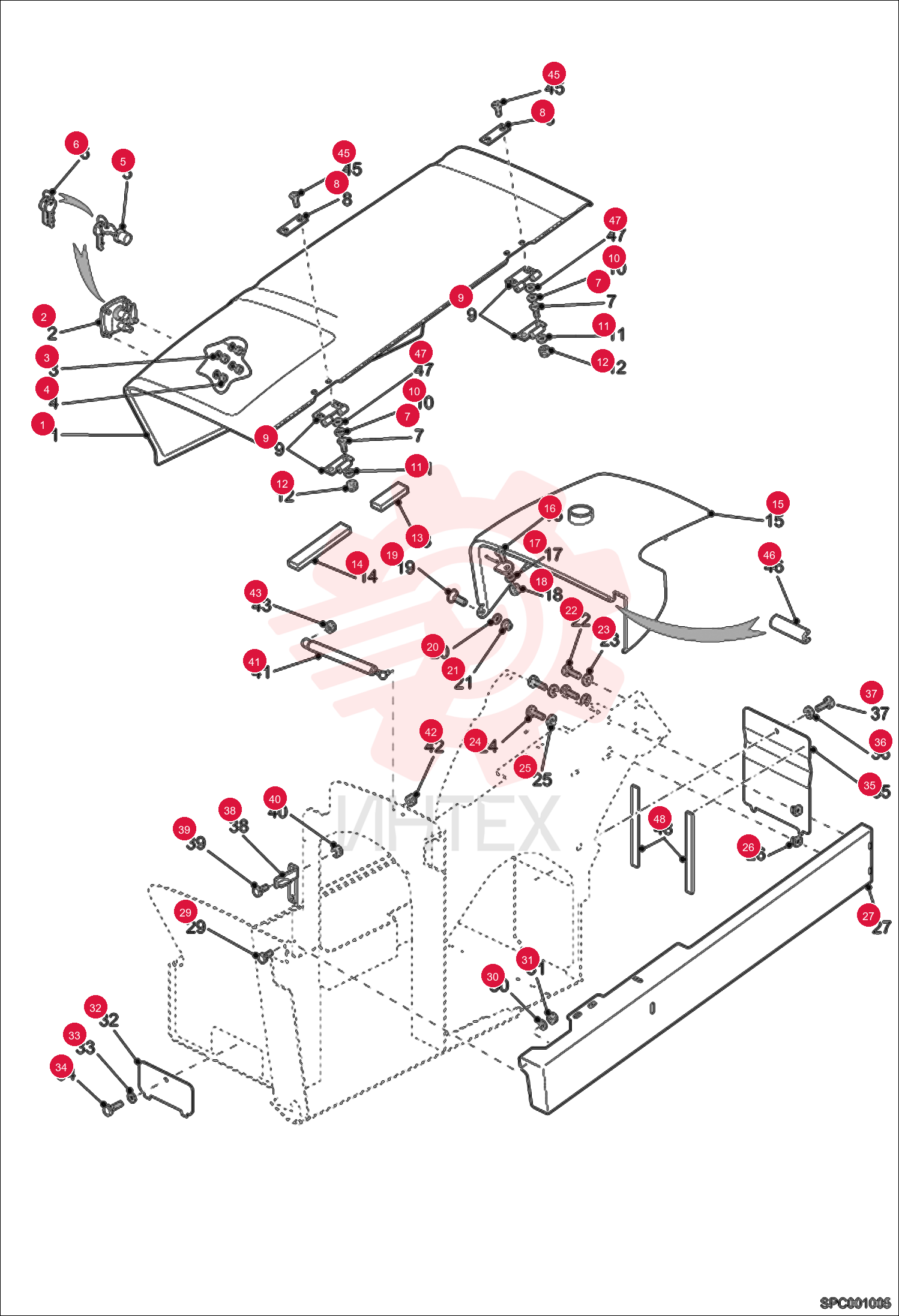

Engine cover 98765.1

Engine cover 98765.1

Engine cover 98765.1

1 98765.1

  • 98765.1 - Engine cover

2 6909609

  • 6909609 - LATCH - ENGINE COMPARTMENT

3 13416.3

  • 13416.3 - Washer

4 01666.7

  • 01666.7 - Nut

5 6926414

  • 6926414 - SET OF KEYS

6 000324-65N

  • 000324-65N - SCREW FHC M10-25

7 6909020

  • 6909020 - PLATE

8 6912485

  • 6912485 - HOOD HINGE

9 01682.4

  • 01682.4 - Nut

10 000350-03W

  • 000350-03W - WASHER

11 7252655

  • 7252655 - NUT LOCK

12 6914790

  • 6914790 - SEAL
  • BULK/METER

13 6914790

  • 6914790 - SEAL
  • BULK/METER

14 98777.6

  • 98777.6 - Cover

15 4CM825

  • 4CM825 - BOLT HEX HEAD

16 000350-02V

  • 000350-02V - WASHER

17 01681.6

  • 01681.6 - Nut

18 23GM825

  • 23GM825 - SCREW

19 000350-02V

  • 000350-02V - WASHER

20 01681.6

  • 01681.6 - Nut

21 4CM825

  • 4CM825 - BOLT HEX HEAD

22 01718.6

  • 01718.6 - Washer

23 4CM825

  • 4CM825 - BOLT HEX HEAD

24 01718.6

  • 01718.6 - Washer

25 015369-50X

  • 015369-50X - NUT

26 6911253

  • 6911253 - DRILL PLATE

27 4CM825

  • 4CM825 - BOLT HEX HEAD

28 000350-02V

  • 000350-02V - WASHER

29 01681.6

  • 01681.6 - Nut

30 6908165

  • 6908165 - PLATE

31 01718.6

  • 01718.6 - Washer

32 4CM825

  • 4CM825 - BOLT HEX HEAD

33 98053.2

  • 98053.2 - Plate
  • engine basket
  • front

34 01718.6

  • 01718.6 - Washer

35 4CM825

  • 4CM825 - BOLT HEX HEAD

36 6915513

  • 6915513 - LOCK PLATE

37 4CM820

  • 4CM820 - SCREW HEX HD 8.8

38 01681.6

  • 01681.6 - Nut

39 83757.5

  • 83757.5 - Gas Cylinder

40 01681.6

  • 01681.6 - Nut

41 01681.6

  • 01681.6 - Nut

42 000324-65N

  • 000324-65N - SCREW FHC M10-25

43 6917964

  • 6917964 - SEAL

44 7225260

  • 7225260 - WASHER

45 6912269

  • 6912269 - FOAM
