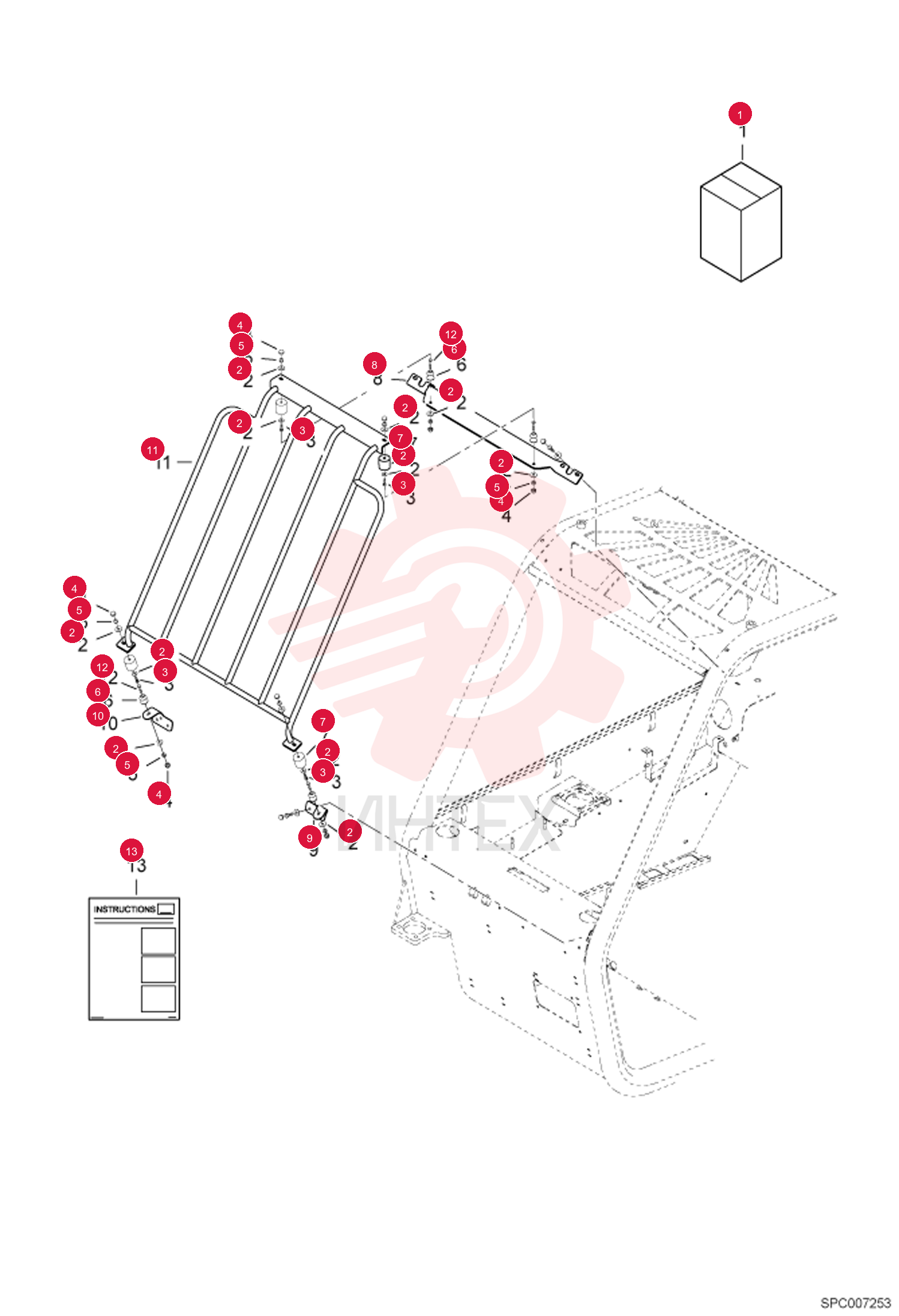

KIT WINDSCREEN GRILL 6912988 (3)

KIT WINDSCREEN GRILL 6912988 (3)

KIT WINDSCREEN GRILL 6912988 (3)

1 6912988

  • 6912988 - KIT WINDSCREEN GRILL

2 01591.7

  • 01591.7 - Screw

3 63332.1

  • 63332.1 - Cap

4 100345-06W

  • 100345-06W - NUT

5 100520-18G

  • 100520-18G - FEMALE ABUTMENT

6 100520-19H

  • 100520-19H - MALE ABUTMENT

7 6914643

  • 6914643 - SUPPORT

8 6914651

  • 6914651 - L.H. SUPPORT

9 6914652

  • 6914652 - R.H. SUPPORT

10 6924352

  • 6924352 - PROTECTIVE GRID

11 01593.3

  • 01593.3 - Screw

12 6901696

  • 6901696 - INSTRUCTIONS
