Bobcat
/
T40140
/

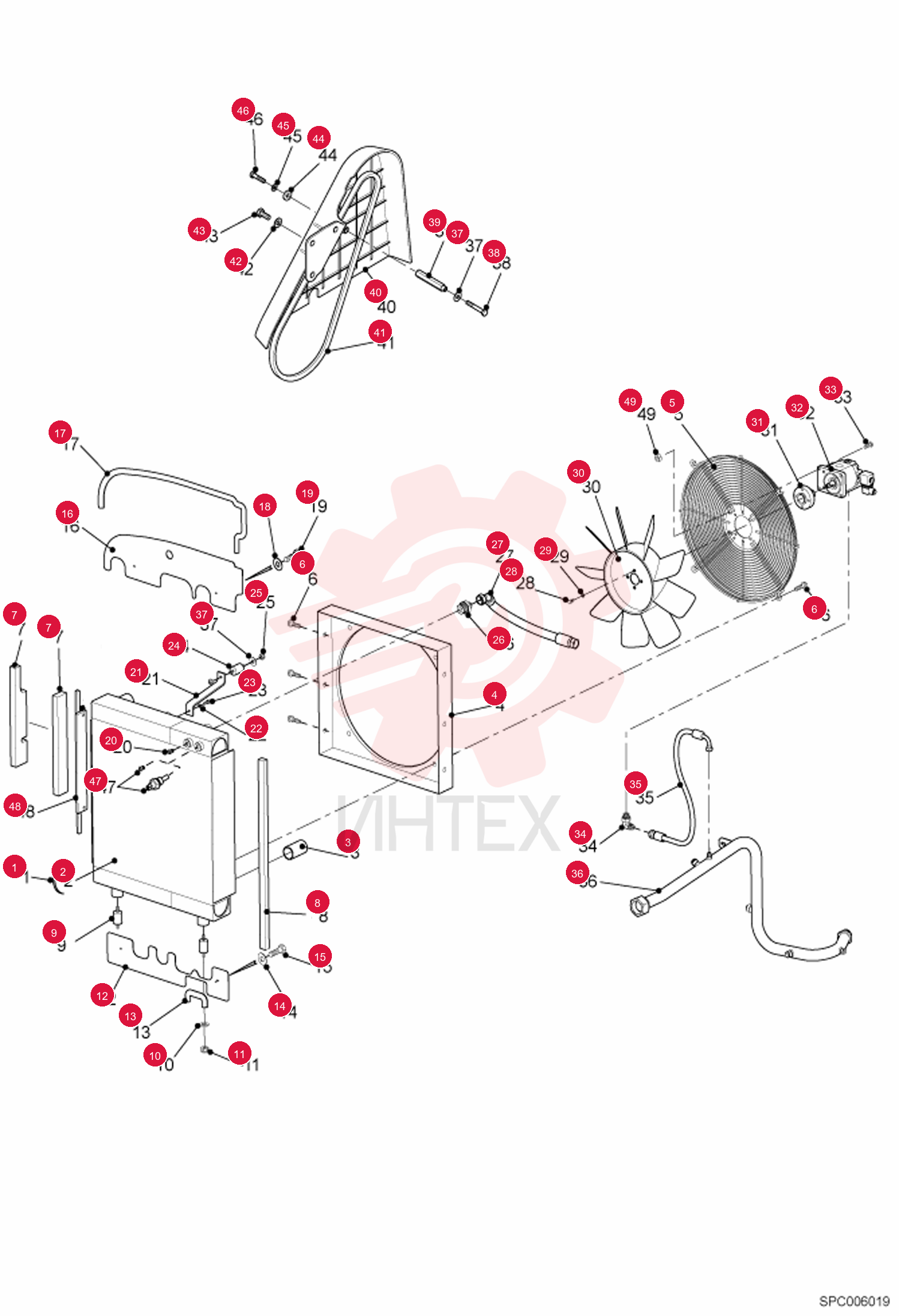

RADIATOR 6914085 (3)

RADIATOR 6914085 (3)

RADIATOR 6914085 (3)

1 6914085

  • 6914085 - RADIATOR

2 6912542

  • 6912542 - RADIATOR

3 7008310

  • 7008310 - FITTING

4 6912543

  • 6912543 - HOUSING

5 6912544

  • 6912544 - GRATE FAN

6 6912550

  • 6912550 - SCREW H M 8-20 DIN 6921

7 7196170

  • 7196170 - GASKET

8 88395.9

  • 88395.9 - Insulation

9 6910966

  • 6910966 - BUSHING
  • RUBBER
  • RADIATOR

10 89519.3

  • 89519.3 - Washer

11 4DM8

  • 4DM8 - NUT HEX

12 6914199

  • 6914199 - PLATE

13 6911213

  • 6911213 - SEAL

14 01717.8

  • 01717.8 - Washer

15 01590.9

  • 01590.9 - SCREW

16 6914200

  • 6914200 - PLATE

17 6911746

  • 6911746 - BEAD L1010 BULK/METER

18 01717.8

  • 01717.8 - Washer

19 01590.9

  • 01590.9 - SCREW

20 6911759

  • 6911759 - PLUG MALE M14X1.25 ALLEN

21 34765.8

  • 34765.8 - Copper ring

22 6910985

  • 6910985 - BRACKET
  • RADIATOR

23 89519.3

  • 89519.3 - Washer

24 4CM820

  • 4CM820 - SCREW HEX HD 8.8

25 6910966

  • 6910966 - BUSHING
  • RUBBER
  • RADIATOR

26 01681.6

  • 01681.6 - Nut

27 68609.7

  • 68609.7 - Union

28 6928048

  • 6928048 - HOSE

29 4CM816

  • 4CM816 - SCREW HEX HD 8.8

30 89519.3

  • 89519.3 - Washer

31 7101769

  • 7101769 - FAN

32 6911798

  • 6911798 - FLANGE FAN

33 6916978

  • 6916978 - HYDRAULIC MOTOR

34 01598.2

  • 01598.2 - Screw

35 010370-93A

  • 010370-93A - ELBOW PIECE

36 6910622

  • 6910622 - HOSE TJ3/4 9.5 TJ90 9/16 L800

37 6910972

  • 6910972 - MANIFOLD PIPE

38 000350-20Q

  • 000350-20Q - WASHER

39 01602.2

  • 01602.2 - Screw

40 6915334

  • 6915334 - SPACER

41 6915517

  • 6915517 - BELT PROTECTOR

42 79527.8

  • 79527.8 - Engine Drive Belt

43 000350-03W

  • 000350-03W - WASHER

44 1CM1025

  • 1CM1025 - BOLT

45 97610.0

  • 97610.0 - Washer

46 01697.2

  • 01697.2 - Washer

47 01578.4

  • 01578.4 - Screw

48 100374-14H

  • 100374-14H - PLUG

49 6914214

  • 6914214 - PLATE

50 01681.6

  • 01681.6 - Nut
