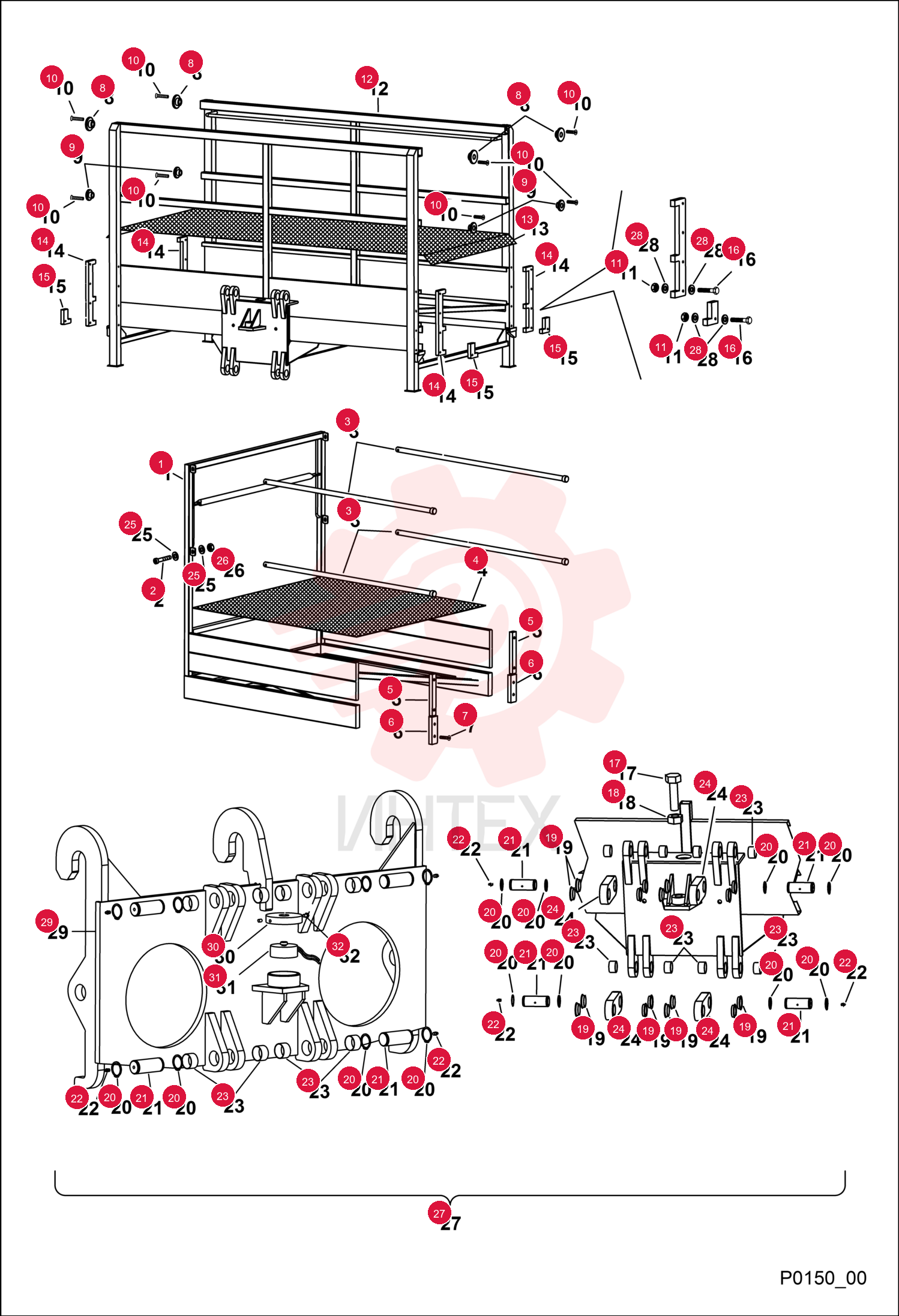

FRAME 7018044 (4)

FRAME 7018044 (4)

FRAME 7018044 (4)

1 7018044

  • 7018044 - FRAME

2 7018135

  • 7018135 - HOSE
  • HYD

3 7018046

  • 7018046 - PIPE

4 7018047

  • 7018047 - PLATE

5 7018048

  • 7018048 - PAD
  • WEAR

6 7018049

  • 7018049 - PAD
  • WEAR

7 7018050

  • 7018050 - SCREW

8 7018051

  • 7018051 - BUSHING

9 7018052

  • 7018052 - BUSHING

10 7018053

  • 7018053 - SCREW

11 7014561

  • 7014561 - NUT
  • SELF LOCKING

12 7018054

  • 7018054 - FRAME

13 7018062

  • 7018062 - PLATE

14 7018055

  • 7018055 - PAD
  • WEAR

15 7018056

  • 7018056 - SHIM

16 7018057

  • 7018057 - SCREW

17 7018063

  • 7018063 - SCREW

18 7018064

  • 7018064 - NUT

19 7018065

  • 7018065 - BUSHING

20 7018066

  • 7018066 - RING
  • SNAP

21 7018067

  • 7018067 - PIN

22 7018068

  • 7018068 - NIPPLE
  • GREASE

23 7018069

  • 7018069 - BUSHING

24 7018070

  • 7018070 - LINK

25 7018133

  • 7018133 - WASHER FLAT

26 7018059

  • 7018059 - NUT

27 7271661

  • 7271661 - BASKET

28 7018061

  • 7018061 - WASHER

29 7027880

  • 7027880 - PLATE

30 7018084

  • 7018084 - COVER

31 7018085

  • 7018085 - SENSOR
  • LOAD

32 7019721

  • 7019721 - PIN
  • DOWEL
