TR40250 Evo
/

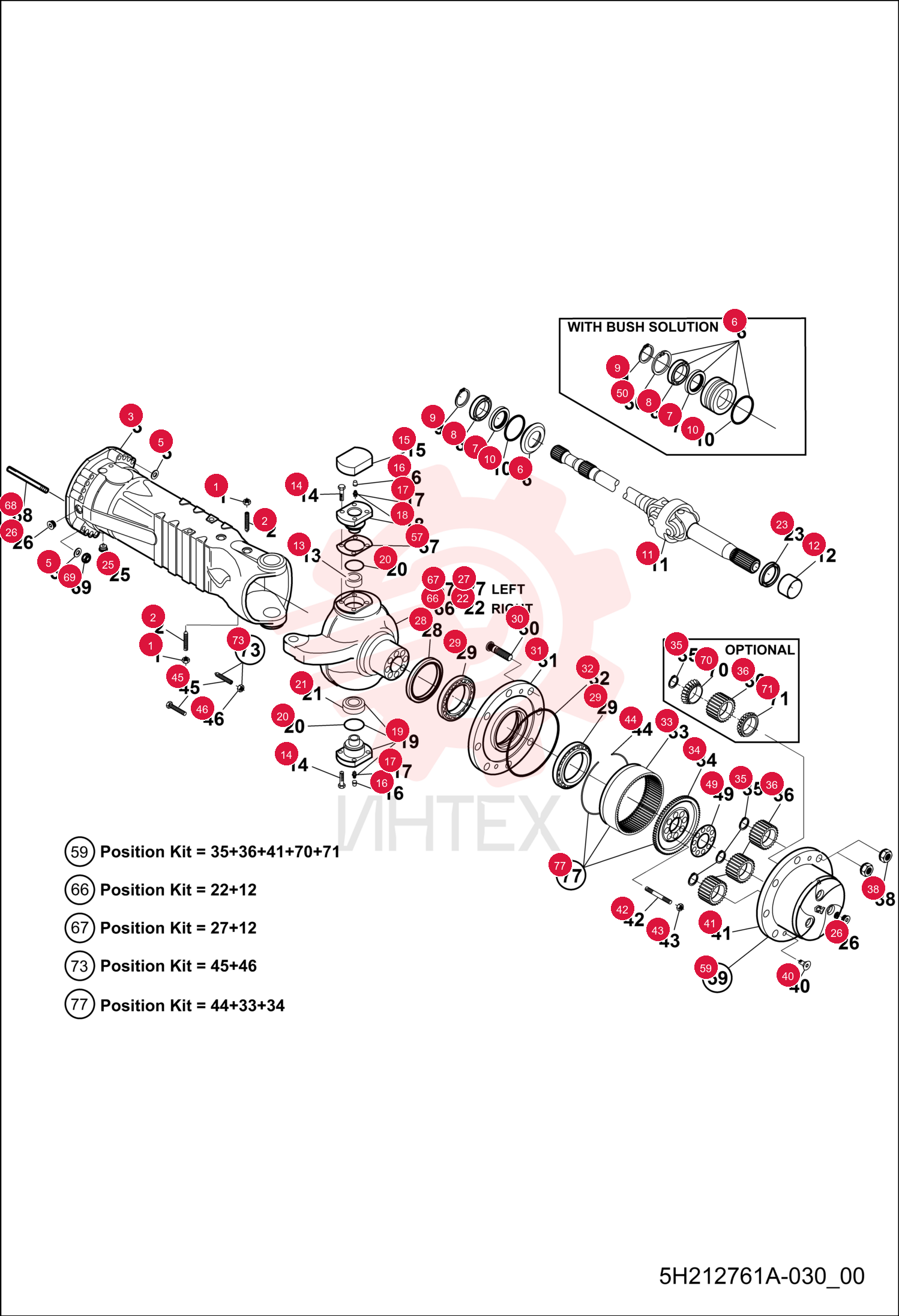

NUT 7014334 (3)

NUT 7014334 (3)

NUT 7014334 (3)

1 7014334

  • 7014334 - NUT

2 7014381

  • 7014381 - SCREW

3 7014436

  • 7014436 - ARM

4 7014349

  • 7014349 - WASHER

5 7014443

  • 7014443 - BUSHING
  • REDUCTION

6 7014507

  • 7014507 - SEAL

7 7271669

  • 7271669 - BEARING

8 7271694

  • 7271694 - SEEGER RING

9 7026853

  • 7026853 - O - RING

10 7279424

  • 7279424 - DOUBLE UNIVERSAL JOINT

11 7014442

  • 7014442 - COUPLER

12 7279423

  • 7279423 - JOINT

13 7014480

  • 7014480 - BEARING

14 7014431

  • 7014431 - BUSHING

15 7279420

  • 7279420 - SCREW

16 7014382

  • 7014382 - SCREW

17 7014430

  • 7014430 - COVER

18 7014509

  • 7014509 - PLUG

19 7020125

  • 7020125 - NIPPLE
  • GREASE

20 7014469

  • 7014469 - PIN
  • PIVOT

21 7014468

  • 7014468 - PIN
  • PIVOT

22 7014459

  • 7014459 - SEAL
  • DUST

23 7014479

  • 7014479 - BEARING

24 7014465

  • 7014465 - HOUSING
  • STEERING

25 7014462

  • 7014462 - RING
  • SEAL

26 7014387

  • 7014387 - PLUG
  • MAGNETIC

27 7014386

  • 7014386 - PLUG

28 7014466

  • 7014466 - HOUSING
  • STEERING

29 7014440

  • 7014440 - RING
  • SEAL

30 7014330

  • 7014330 - BEARING

31 7014516

  • 7014516 - STUD
  • HOLLOW

32 7014407

  • 7014407 - HUB
  • WHEEL

33 7279426

  • 7279426 - O-RING

34 7279427

  • 7279427 - RING GEAR

35 7014409

  • 7014409 - SUPPORT
  • RING GEAR

36 7014511

  • 7014511 - RING
  • SEAL

37 7279428

  • 7279428 - PLANET

38 7019575

  • 7019575 - NUT
  • WHEEL

39 7279429

  • 7279429 - SCREW

40 7014408

  • 7014408 - CARRIER
  • PLANET GEAR

41 7027013

  • 7027013 - BOLT STUD

42 7320668

  • 7320668 - BOLT STUD

43 7279430

  • 7279430 - NUT

44 7014478

  • 7014478 - CIRCLIP

45 7271535

  • 7271535 - SCREW

46 7271546

  • 7271546 - NUT

47 7014406

  • 7014406 - PLATE
  • LOCKING

48 7014322

  • 7014322 - CIRCLIP

49 7014432

  • 7014432 - SHIM

50 7014433

  • 7014433 - SHIM

51 7014434

  • 7014434 - SHIM

52 7014444

  • 7014444 - KIT
  • PLANET GEAR CARRIER

53 7014470

  • 7014470 - KIT
  • STEERING HOUSING LH

54 7014471

  • 7014471 - KIT
  • STEERING HOUSING RH

55 7014439

  • 7014439 - STUD

56 7014335

  • 7014335 - NUT

57 7014333

  • 7014333 - BEARING

58 7014332

  • 7014332 - BEARING

59 7014463

  • 7014463 - KIT
  • SCREW

60 7014410

  • 7014410 - SUPPORT
  • RING GEAR
