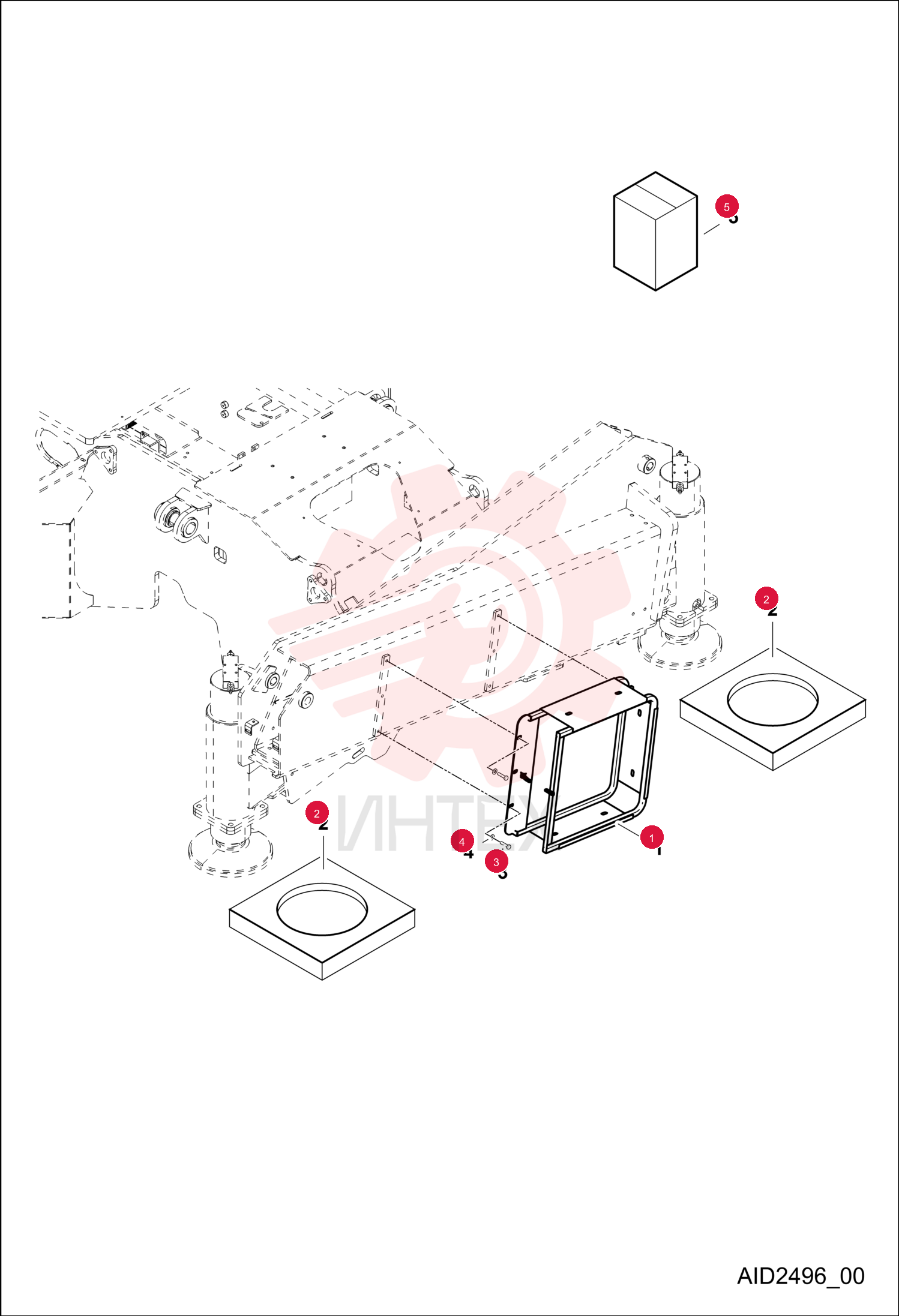

SUPPORT 7312325

SUPPORT 7312325

SUPPORT 7312325

1 7312325

  • 7312325 - SUPPORT

2 7312326

  • 7312326 - BOARD

3 7312327

  • 7312327 - SCREW

4 7020214

  • 7020214 - WASHER

5 7314118

  • 7314118 - KIT OF PLATFORMS FOR OUTRIGGER
