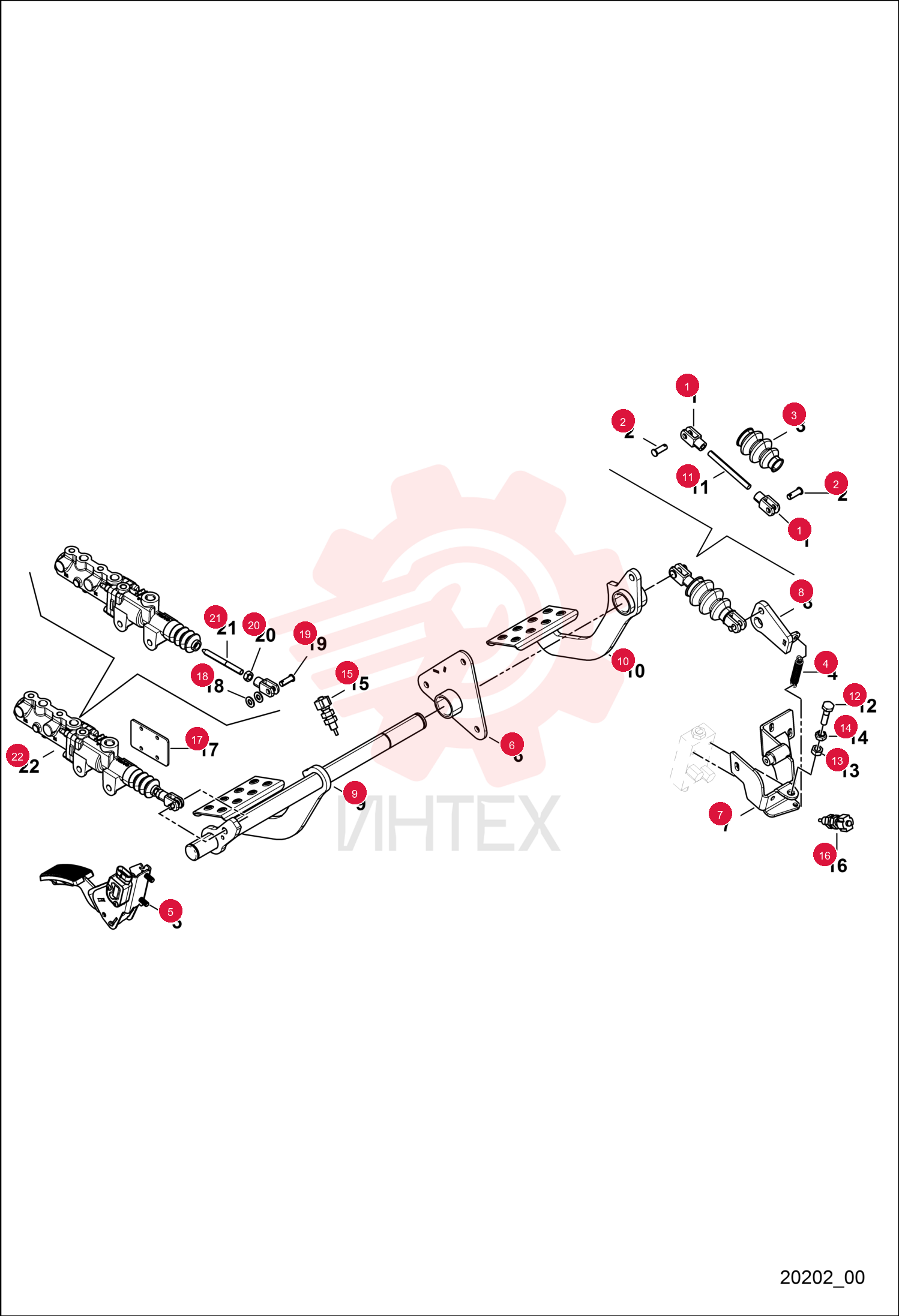

FORK 7013754 (1)

FORK 7013754 (1)

FORK 7013754 (1)

1 7013754

  • 7013754 - FORK

2 7013755

  • 7013755 - PIN

3 7272195

  • 7272195 - BELLOW

4 7272196

  • 7272196 - SPRING

5 7279259

  • 7279259 - PEDAL

6 7272197

  • 7272197 - SUPPORT

7 7272198

  • 7272198 - SUPPORT

8 7272199

  • 7272199 - SUPPORT

9 7272200

  • 7272200 - BREAK PEDAL

10 7272201

  • 7272201 - INCHING PEDAL

11 7272202

  • 7272202 - PIN

12 7272203

  • 7272203 - SCREW

13 7279260

  • 7279260 - NUT

14 7272204

  • 7272204 - NUT

15 7014642

  • 7014642 - SWITCH PRESSURE

16 7014643

  • 7014643 - SWITCH ROTARY

17 7307465

  • 7307465 - SPACER

18 7013919

  • 7013919 - PIN
  • COTTER

19 7013755

  • 7013755 - PIN

20 7279260

  • 7279260 - NUT

21 7307466

  • 7307466 - STEM

22 7014654

  • 7014654 - PUMP SERVO BRAKE
