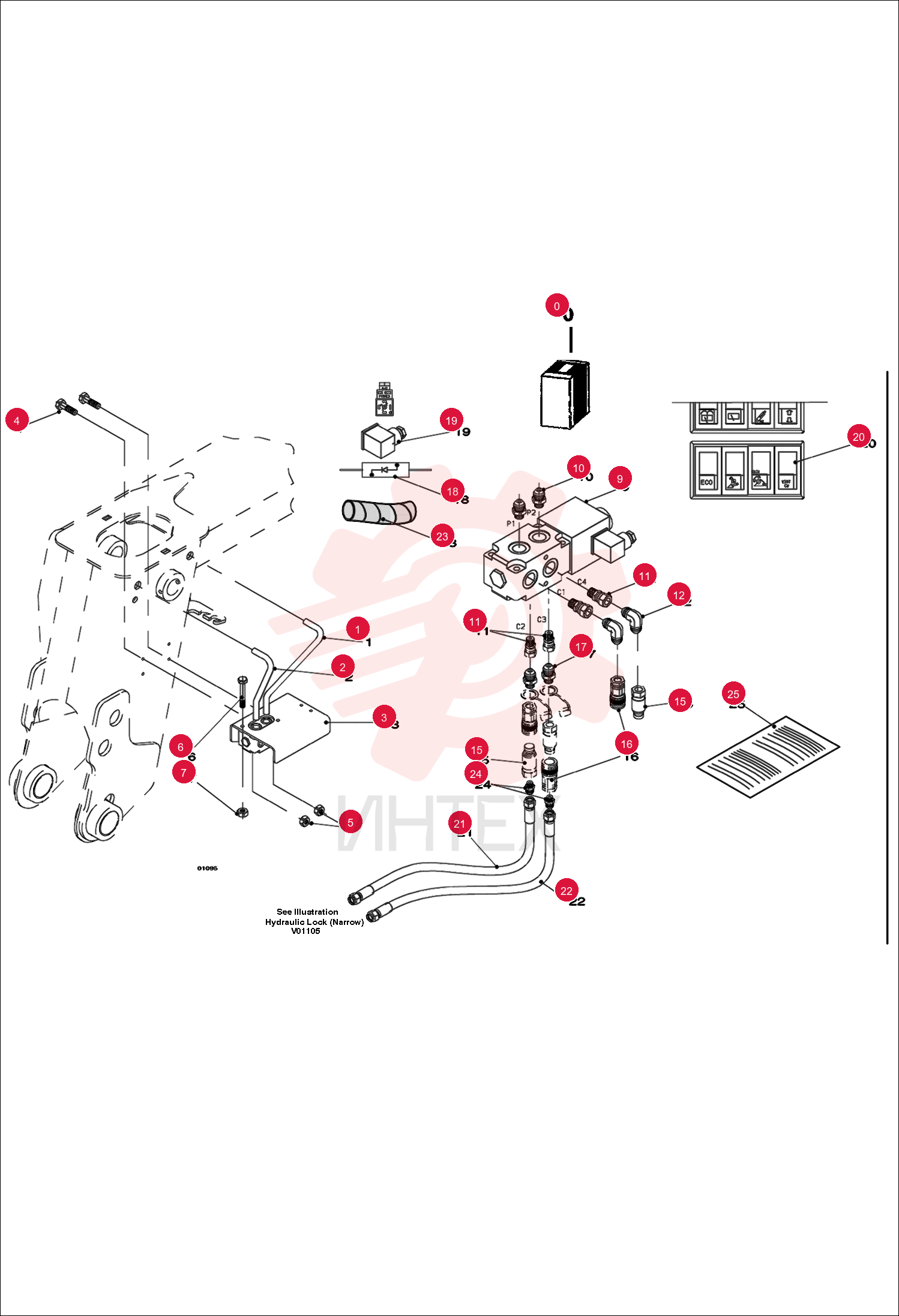

2ND AUX KIT

2ND AUX KIT

2ND AUX KIT

1 96366-0

  • 96366-0 - 2ND AUX KIT

2 94193-0

  • 94193-0 - TUBELINE

3 92132-0

  • 92132-0 - HOUSING

4 1CM1025

  • 1CM1025 - BOLT

5 7252655

  • 7252655 - NUT LOCK

6 01511-5

  • 01511-5 - SCREW

7 51851-4

  • 51851-4 - NUT

8 92131-2

  • 92131-2 - ELECTRO VALVE

9 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

10 022375-06W

  • 022375-06W - UNION

11 7244882

  • 7244882 - FITTING HYDRAULIC

12 95994-0

  • 95994-0 - COUPLER 1/2"M FP G1/2"F

13 95993-2

  • 95993-2 - COUPLER 1/2"F FP G1/2"F

14 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

15 101472-20M

  • 101472-20M - DIODE

16 41282-5

  • 41282-5 - CONNECTOR

17 96604-4

  • 96604-4 - SWITCH

18 96398-3

  • 96398-3 - HOSE

19 96397-5

  • 96397-5 - HOSE

20 74470-6

  • 74470-6 - SHEATH

21 022375-27U

  • 022375-27U - UNION

22 6901399

  • 6901399 - INSTRUCTIONS
