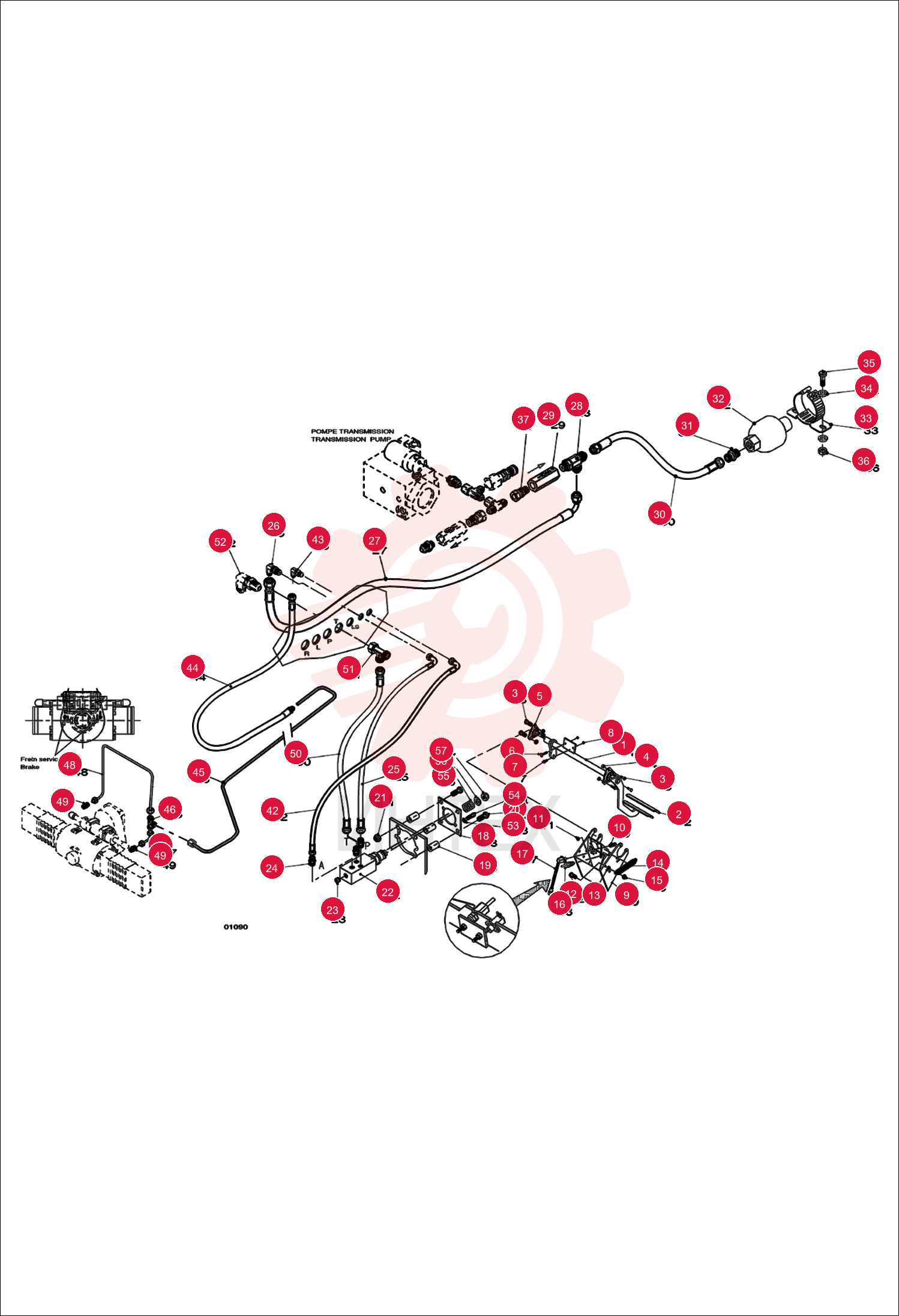

PEDAL ASMBLY 95507-8
1 95507-8
- 95507-8 - PEDAL ASMBLY
2 1CM1025
- 1CM1025 - BOLT
3 7252655
- 7252655 - NUT LOCK
4 77919-9
- 77919-9 - BRACKET
5 62185-4
- 62185-4 - SCREW
6 01597-4
- 01597-4 - SCREW
7 51851-4
- 51851-4 - NUT
8 96089-8
- 96089-8 - SUPPORT
9 100329-01C
- 100329-01C - SCREW
10 7248549
- 7248549 - NUT
11 1CM1040
- 1CM1040 - BOLT
12 01669-1
- 01669-1 - NUT
13 01124-7
- 01124-7 - SPRING
14 7252655
- 7252655 - NUT LOCK
15 89092-1
- 89092-1 - DETECTOR
16 6909383
- 6909383 - SENSOR
- INCHING
17 96054-2
- 96054-2 - SPACER
18 96061-7
- 96061-7 - SPACER
19 01597-4
- 01597-4 - SCREW
20 51851-4
- 51851-4 - NUT
21 90807-9
- 90807-9 - CONTROL SERVICE BRAKE SC 40B M_5B
22 78927-1
- 78927-1 - PLUG
23 90289-0
- 90289-0 - UNION
24 96773-7
- 96773-7 - HOSE
25 100370-40B
- 100370-40B - ELBOW PIECE
26 96396-7
- 96396-7 - HOSE
27 100433-41X
- 100433-41X - VALVE
28 78734-1
- 78734-1 - UNION
29 96402-3
- 96402-3 - HOSE
30 77912-4
- 77912-4 - UNION
31 96365-2
- 96365-2 - ACCUMULATOR
- HYDRAULIC
32 96368-6
- 96368-6 - COLLAR
- MOUNT 75MM DIA
33 01697-2
- 01697-2 - WASHER
34 01597-4
- 01597-4 - SCREW
35 51851-4
- 51851-4 - NUT
36 022375-30X
- 022375-30X - UNION
37 96773-7
- 96773-7 - HOSE
38 67196-6
- 67196-6 - UNION
39 79149-1
- 79149-1 - HOSE ASSEM
40 89488-1
- 89488-1 - PIPE
41 62849-5
- 62849-5 - UNION
42 89477-4
- 89477-4 - PIPE
43 100375-71D
- 100375-71D - UNION
44 96772-9
- 96772-9 - HOSE
45 008372-02C
- 008372-02C - UNION
46 010370-87T
- 010370-87T - ELBOW PIECE
47 000350-01U
- 000350-01U - WASHER
48 15354-4
- 15354-4 - SCREW
49 96656-4
- 96656-4 - SPRING
50 96655-6
- 96655-6 - WASHER
51 000342-17S
- 000342-17S - NUT
