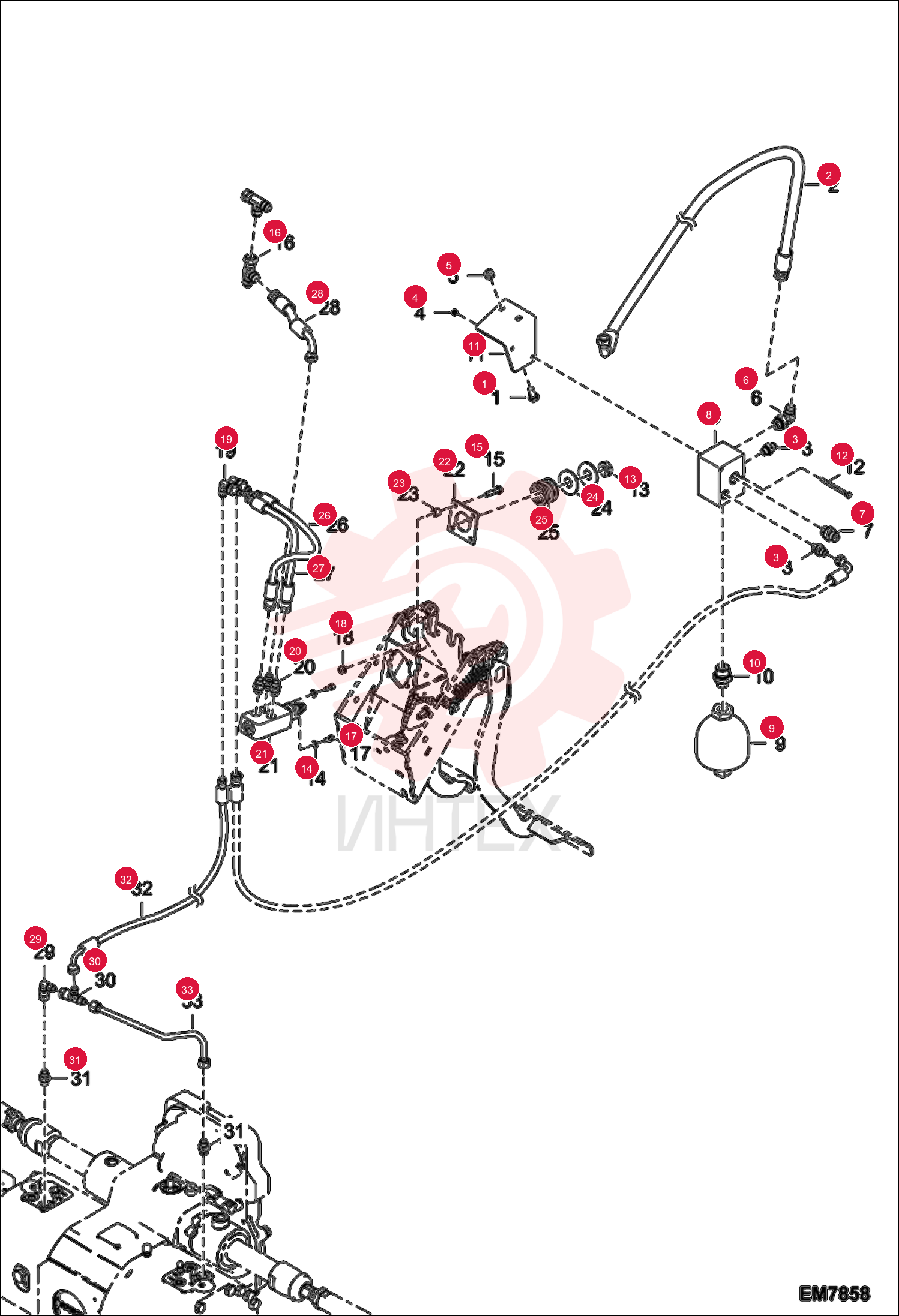

BOLT 1CM1025 (4)

BOLT 1CM1025 (4)

BOLT 1CM1025 (4)

1 1CM1025

  • 1CM1025 - BOLT

2 65717-1

  • 65717-1 - HOSE

3 90289-0

  • 90289-0 - UNION

4 100345-06W

  • 100345-06W - NUT

5 7252655

  • 7252655 - NUT LOCK

6 7228465

  • 7228465 - FITTING

7 100375-56M

  • 100375-56M - UNION

8 6915372

  • 6915372 - SWITCH

9 6915584

  • 6915584 - ACCUMULATOR

10 6916630

  • 6916630 - ADAPTOR

11 6916647

  • 6916647 - SUPPORT

12 6916913

  • 6916913 - SCREW

13 000342-17S

  • 000342-17S - NUT

14 000350-01U

  • 000350-01U - WASHER

15 01578-4

  • 01578-4 - SCREW

16 008372-02C

  • 008372-02C - UNION

17 15354-4

  • 15354-4 - SCREW

18 01681-6

  • 01681-6 - NUT

19 67196-6

  • 67196-6 - UNION

20 90289-0

  • 90289-0 - UNION

21 90807-9

  • 90807-9 - CONTROL SERVICE BRAKE SC 40B M_5B

22 96054-2

  • 96054-2 - SPACER

23 96061-7

  • 96061-7 - SPACER

24 96655-6

  • 96655-6 - WASHER

25 96656-4

  • 96656-4 - SPRING

26 98397-3

  • 98397-3 - HOSE

27 98397-3

  • 98397-3 - HOSE

28 6908595

  • 6908595 - HOSE

29 100370-29P

  • 100370-29P - ELBOW PIECE

30 100372-06G

  • 100372-06G - UNION

31 90289-0

  • 90289-0 - UNION

32 6915430

  • 6915430 - HOSE

33 6917567

  • 6917567 - HYDRAULIC PIPE
