Bobcat
/
V518
/

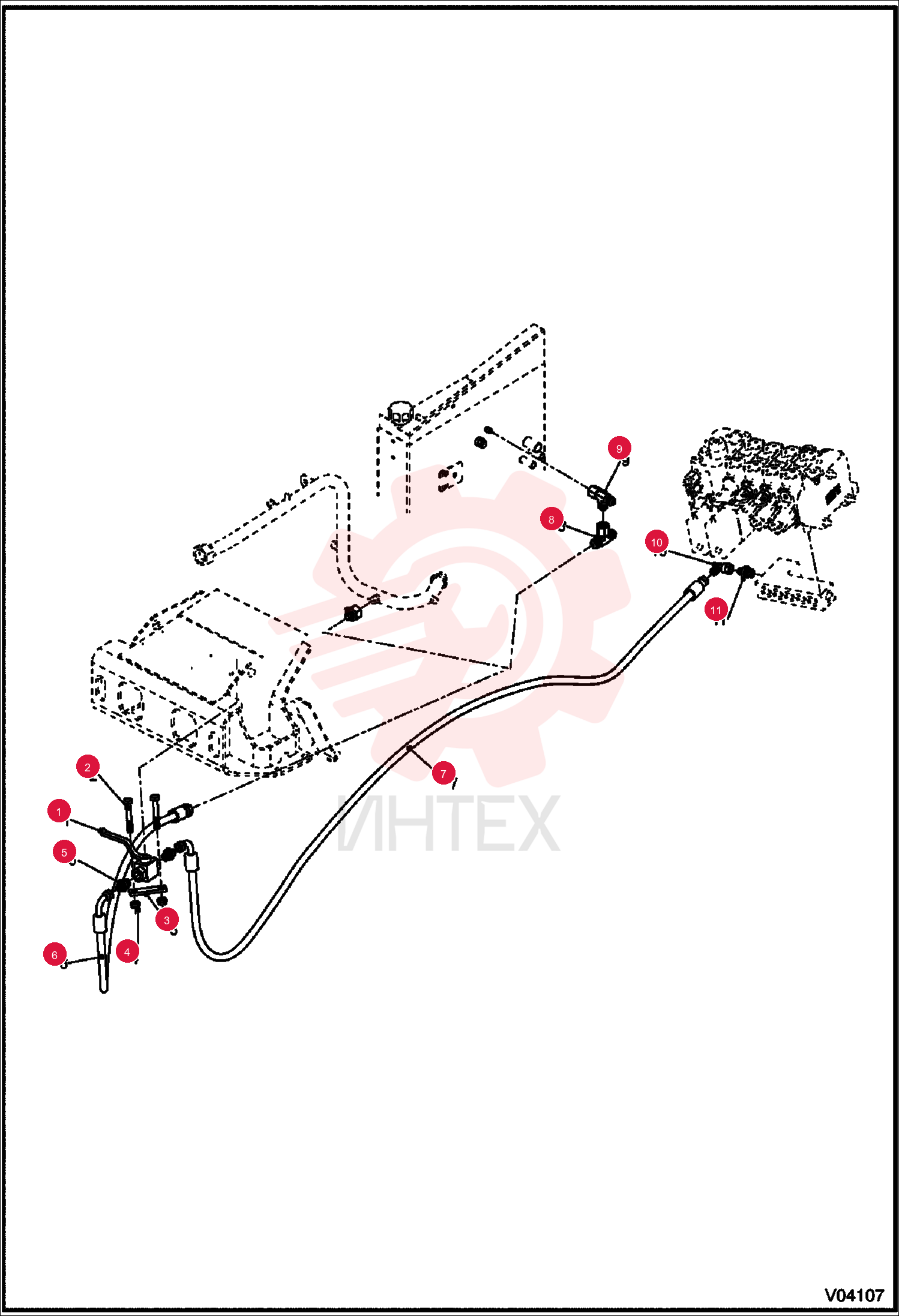

SHUTOFF 100378-03F (2)

SHUTOFF 100378-03F (2)

SHUTOFF 100378-03F (2)

1 100378-03F

  • 100378-03F - SHUTOFF

2 01522-2

  • 01522-2 - SCREW

3 77014-9

  • 77014-9 - PLATE

4 7252655

  • 7252655 - NUT LOCK

5 77013-1

  • 77013-1 - UNION

6 6908319

  • 6908319 - HOSE

7 96807-3

  • 96807-3 - HOSE

8 96808-1

  • 96808-1 - HOSE

9 008372-35N

  • 008372-35N - TEE UNION

10 008372-02C

  • 008372-02C - UNION

11 100370-29P

  • 100370-29P - ELBOW PIECE

12 77013-1

  • 77013-1 - UNION
