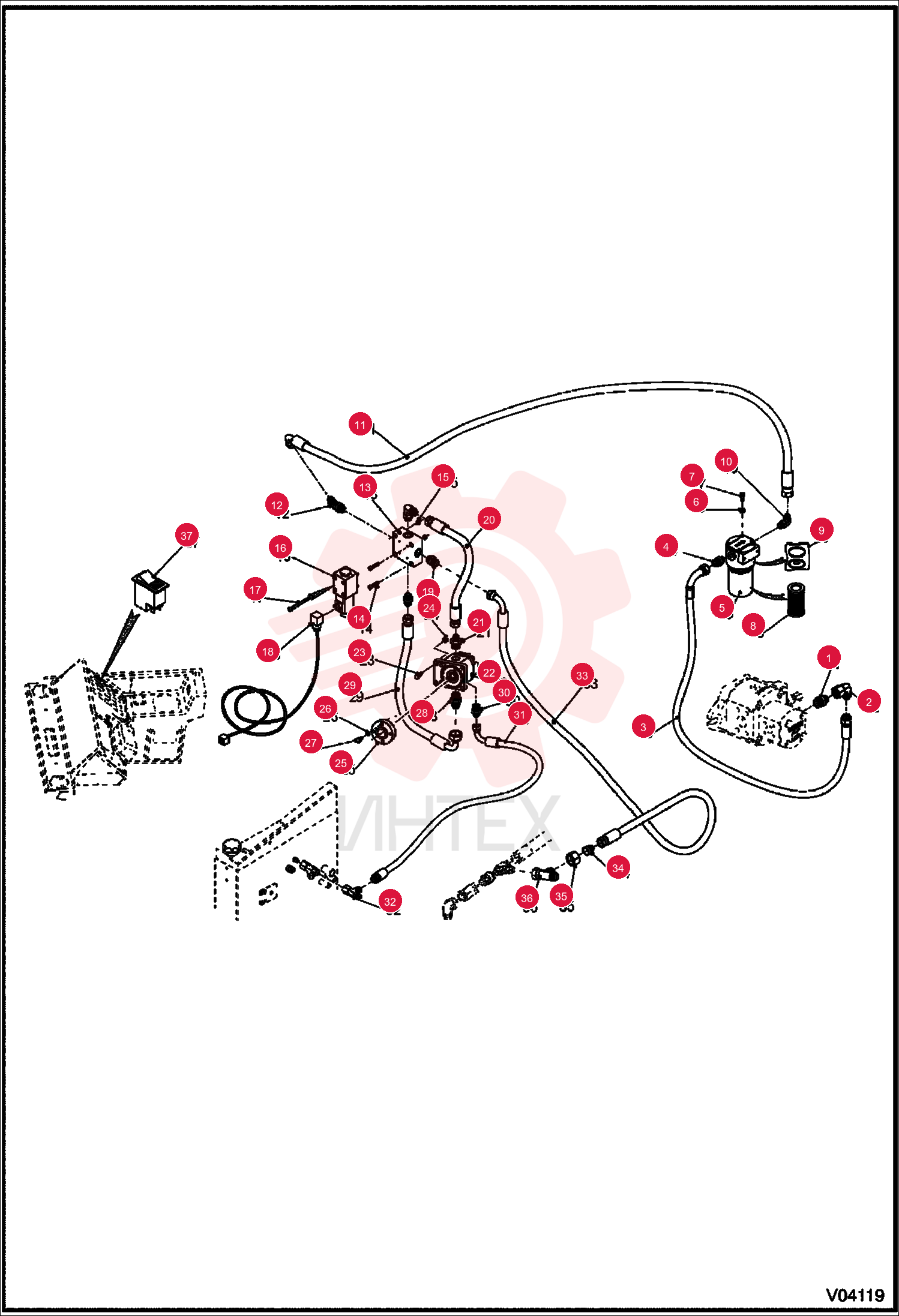

FITTING 7239254

FITTING 7239254

FITTING 7239254

1 7239254

  • 7239254 - FITTING

2 008372-01B

  • 008372-01B - ELBOW PIECE

3 94992-5

  • 94992-5 - HOSE

4 100375-56M

  • 100375-56M - UNION

5 6910601

  • 6910601 - HYDRAULIC FILTER

6 89519-3

  • 89519-3 - WASHER

7 4CM820

  • 4CM820 - SCREW HEX HD 8.8

8 82139-7

  • 82139-7 - ELEMENT

9 6910720

  • 6910720 - SET OF SEALS

10 100370-06P

  • 100370-06P - ELBOW PIECE

11 96794-3

  • 96794-3 - HOSE

12 010370-94B

  • 010370-94B - ELBOW PIECE

13 98348-6

  • 98348-6 - SUPPORT

14 13669-7

  • 13669-7 - SCREW

15 100345-06W

  • 100345-06W - NUT

16 98355-1

  • 98355-1 - ELECTRODISTRIBUTOR

17 79160-8

  • 79160-8 - SCREW

18 96588-9

  • 96588-9 - OPTION WIRE HARNESS

19 7229423

  • 7229423 - FITTING

20 92995-0

  • 92995-0 - HOSE

21 100375-59Q

  • 100375-59Q - UNION 3/4 JIC 3/4 BSP

22 6910598

  • 6910598 - MOTOR

23 01598-2

  • 01598-2 - SCREW

24 51851-4

  • 51851-4 - NUT

25 97930-2

  • 97930-2 - ADAPTOR

26 89519-3

  • 89519-3 - WASHER

27 4CM816

  • 4CM816 - SCREW HEX HD 8.8

28 100375-40U

  • 100375-40U - UNION

29 6911086

  • 6911086 - HOSE

30 7239254

  • 7239254 - FITTING

31 96794-3

  • 96794-3 - HOSE

32 008372-02C

  • 008372-02C - UNION

33 65718-9

  • 65718-9 - HOSE

34 100375-15S

  • 100375-15S - ADAPTER 1.1/16 JIC 3/4 JIC (20-12)

35 100345-34C

  • 100345-34C - NUT D20-1.1/16 JIC

36 008372-34M

  • 008372-34M - UNION

37 96596-2

  • 96596-2 - SWITCH
