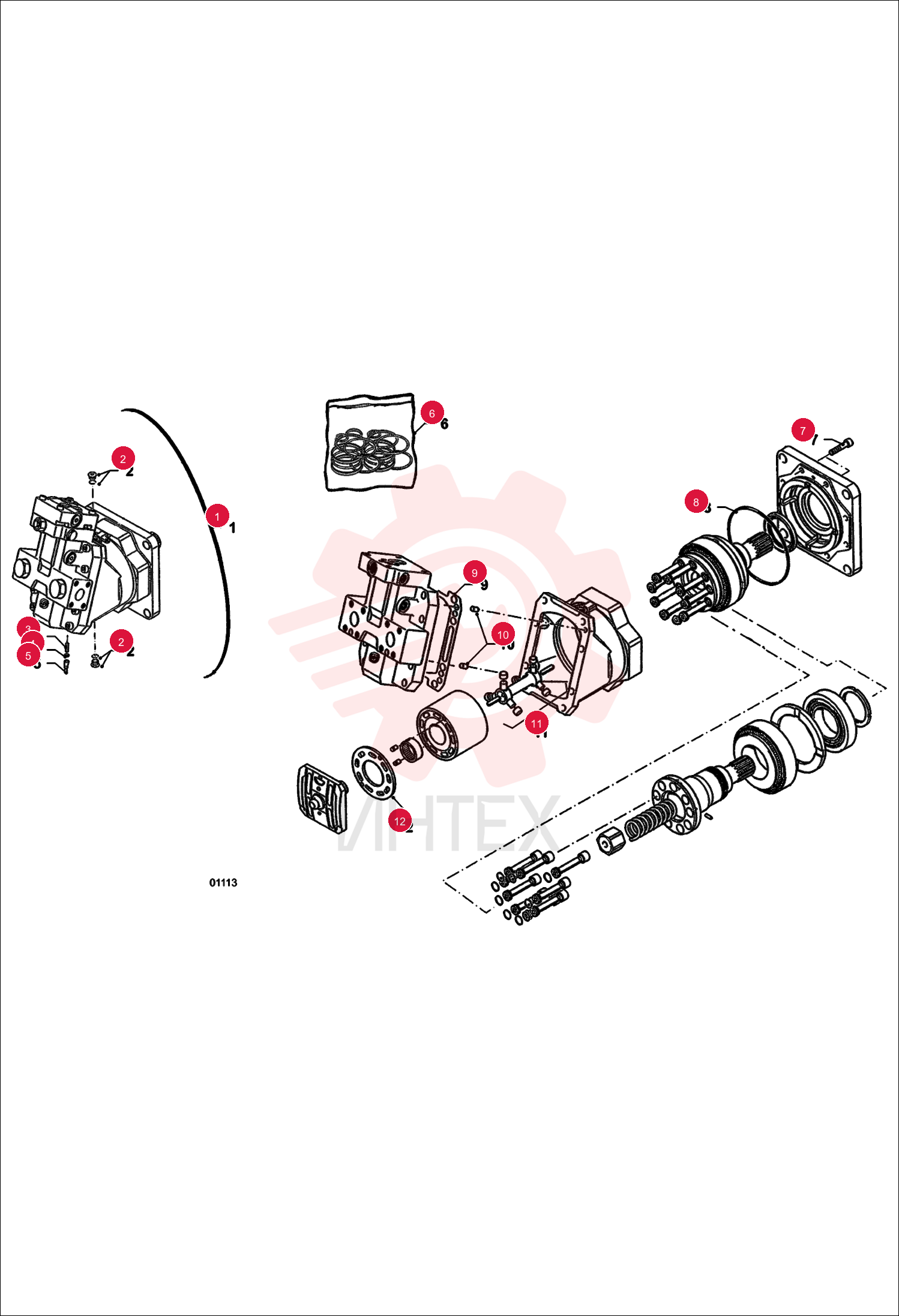

MOTOR 79592-2

MOTOR 79592-2

MOTOR 79592-2

1 79592-2

  • 79592-2 - MOTOR

2 7031336

  • 7031336 - PLUG

3 71609-2

  • 71609-2 - SCREW

4 71610-0

  • 71610-0 - NUT

5 7031196

  • 7031196 - CAP

6 92597-4

  • 92597-4 - SET OF SEAL

7 71590-4

  • 71590-4 - SCREW

8 71571-4

  • 71571-4 - O RING

9 71598-7

  • 71598-7 - SEAL

10 71599-5

  • 71599-5 - PIN

11 71572-2

  • 71572-2 - SHAFT

12 71595-3

  • 71595-3 - PLATE
