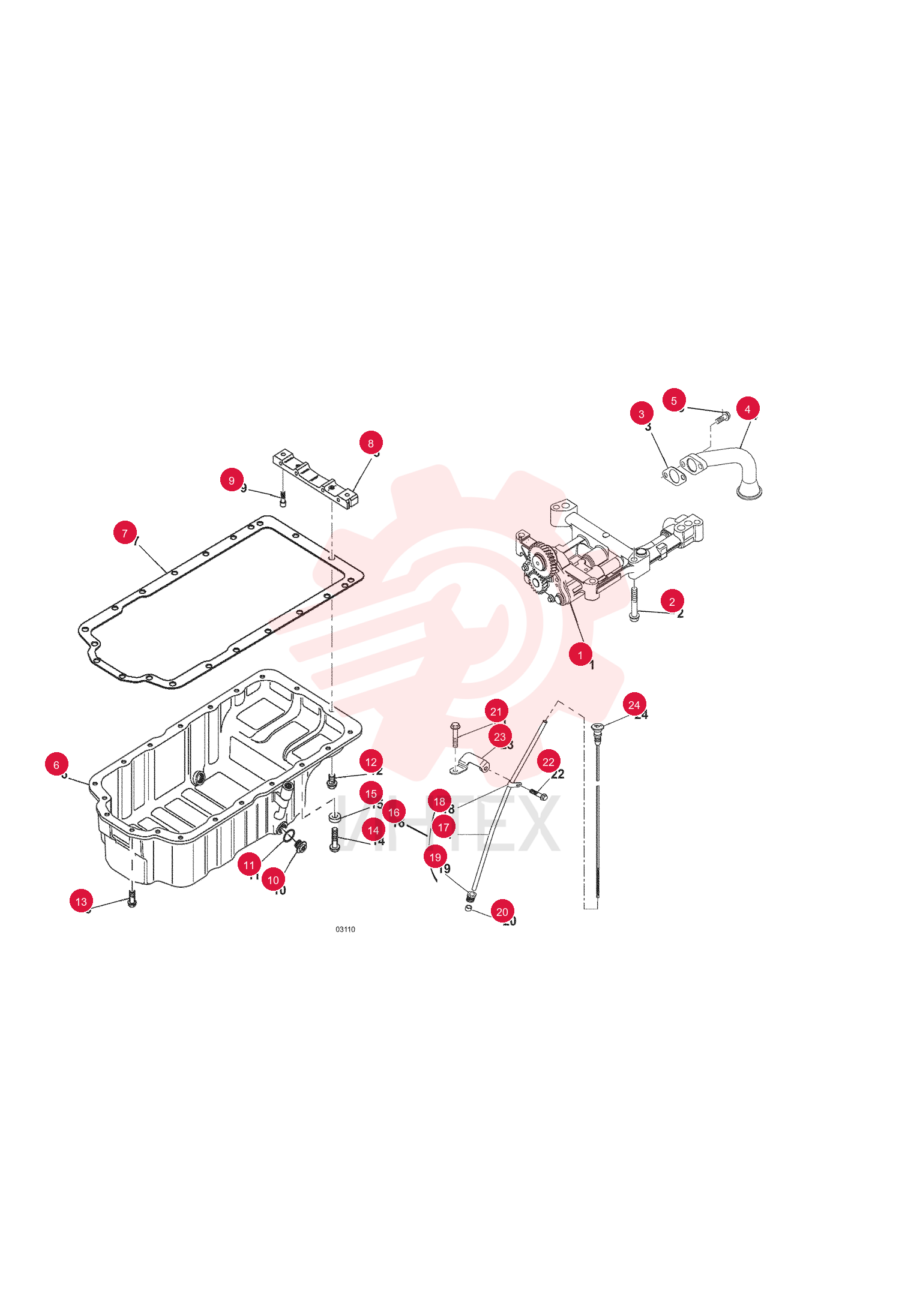

OIL PUMP 6912010 (1)

OIL PUMP 6912010 (1)

OIL PUMP 6912010 (1)

1 6912010

  • 6912010 - OIL PUMP

2 6912056

  • 6912056 - SCREW

3 81063-0

  • 81063-0 - SEAL

4 6911956

  • 6911956 - SUCTION PIPE

5 71338-8

  • 71338-8 - SCREW

6 6911986

  • 6911986 - OIL PAN

7 6911970

  • 6911970 - SUMP JOINT

8 6911965

  • 6911965 - BRIDGE PIECE

9 71275-2

  • 71275-2 - SCREW

10 6649446

  • 6649446 - PLUG

11 64752-9

  • 64752-9 - O RING

12 71468-3

  • 71468-3 - SCREW

13 71456-8

  • 71456-8 - SCREW

14 64878-2

  • 64878-2 - SCREW

15 6911942

  • 6911942 - SPACER

16 6912007

  • 6912007 - DIPSTICK TUBE

17 6911853

  • 6911853 - UNION

18 7025273

  • 7025273 - NUT

19 71466-7

  • 71466-7 - BUSH

20 6668533

  • 6668533 - SCREW

21 71507-8

  • 71507-8 - SCREW

22 6911988

  • 6911988 - BRACKET

23 6911927

  • 6911927 - DIPSTICK
