WL350
/

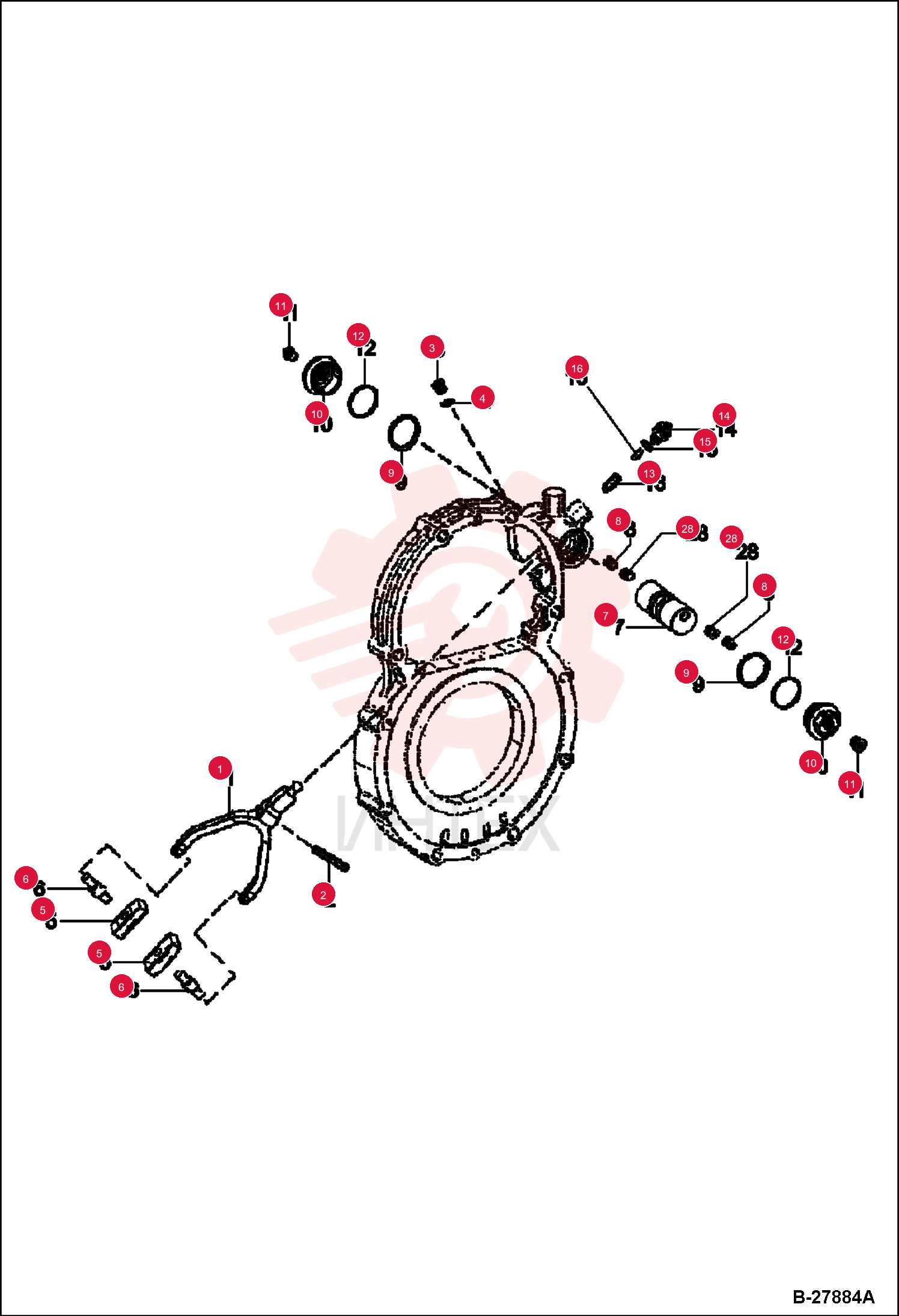

FORK 5904648687 (1)

FORK 5904648687 (1)

FORK 5904648687 (1)

1 5904648687

  • 5904648687 - FORK

2 5904648666

  • 5904648666 - PIN

3 5904648667

  • 5904648667 - PLUG

4 1636815230

  • 1636815230 - O-RING

5 5904648688

  • 5904648688 - RAIL
  • SLIDING

6 5904648689

  • 5904648689 - PIN

7 5904648690

  • 5904648690 - PISTON
  • SHIFT

8 5904648691

  • 5904648691 - STUD

9 5904658447

  • 5904658447 - SPACER

10 5904648671

  • 5904648671 - PLUG

11 5904648667

  • 5904648667 - PLUG

12 5904658449

  • 5904658449 - O-RING

13 5904648672

  • 5904648672 - PIN

14 5904658448

  • 5904658448 - SWITCH

15 1636815957

  • 1636815957 - O-RING

16 5904648676

  • 5904648676 - PAD
  • SLIDING
  • 14
  • 4 mm

17 5904648677

  • 5904648677 - PAD
  • SLIDING
  • 15 mm

18 5904648678

  • 5904648678 - PAD
  • SLIDING
  • 15
  • 6 mm

19 5904658679

  • 5904658679 - RAIL
  • SLIDING
  • 16 mm

20 5904648680

  • 5904648680 - PAD
  • SLIDING
  • 12 mm

21 5904648670

  • 5904648670 - PAD
  • SLIDING
  • 12
  • 5 mm

22 5904648682

  • 5904648682 - PAD
  • SLIDING
  • 13 mm

23 5904648683

  • 5904648683 - PAD
  • SLIDING
  • 13
  • 5 mm

24 5904648675

  • 5904648675 - PAD
  • SLIDING
  • 14
  • 1 mm

25 5904648684

  • 5904648684 - PAD
  • SLIDING
  • 16
  • 5 mm

26 5904648686

  • 5904648686 - PAD
  • SLIDING
  • 17
  • 5 mm

27 5904648685

  • 5904648685 - PAD
  • SLIDING
  • 17 mm

28 5904662662

  • 5904662662 - STUD
