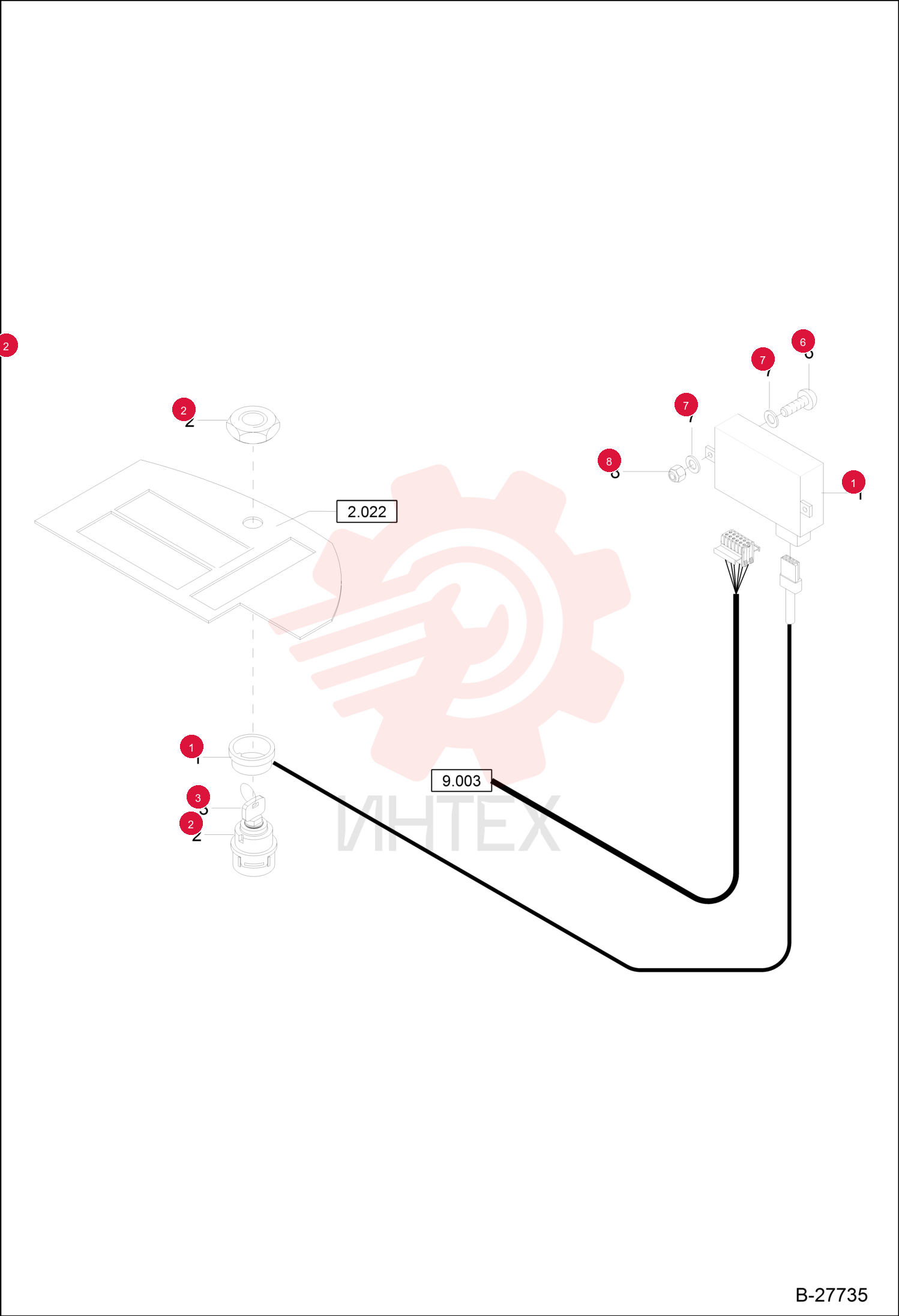

IMMMOBILIZER 5050655535

IMMMOBILIZER 5050655535

IMMMOBILIZER 5050655535

1 5050655535

  • 5050655535 - IMMMOBILIZER
  • W/Ref. 2 & 3

2 5050655525

  • 5050655525 - IGNITION LOCK

3 5050655533

  • 5050655533 - KEY

4 1125907909

  • 1125907909 - BOLT
  • M5X16

5 1290707012

  • 1290707012 - WASHER
  • 5
  • 3

6 1212251007

  • 1212251007 - NUT
  • M5
