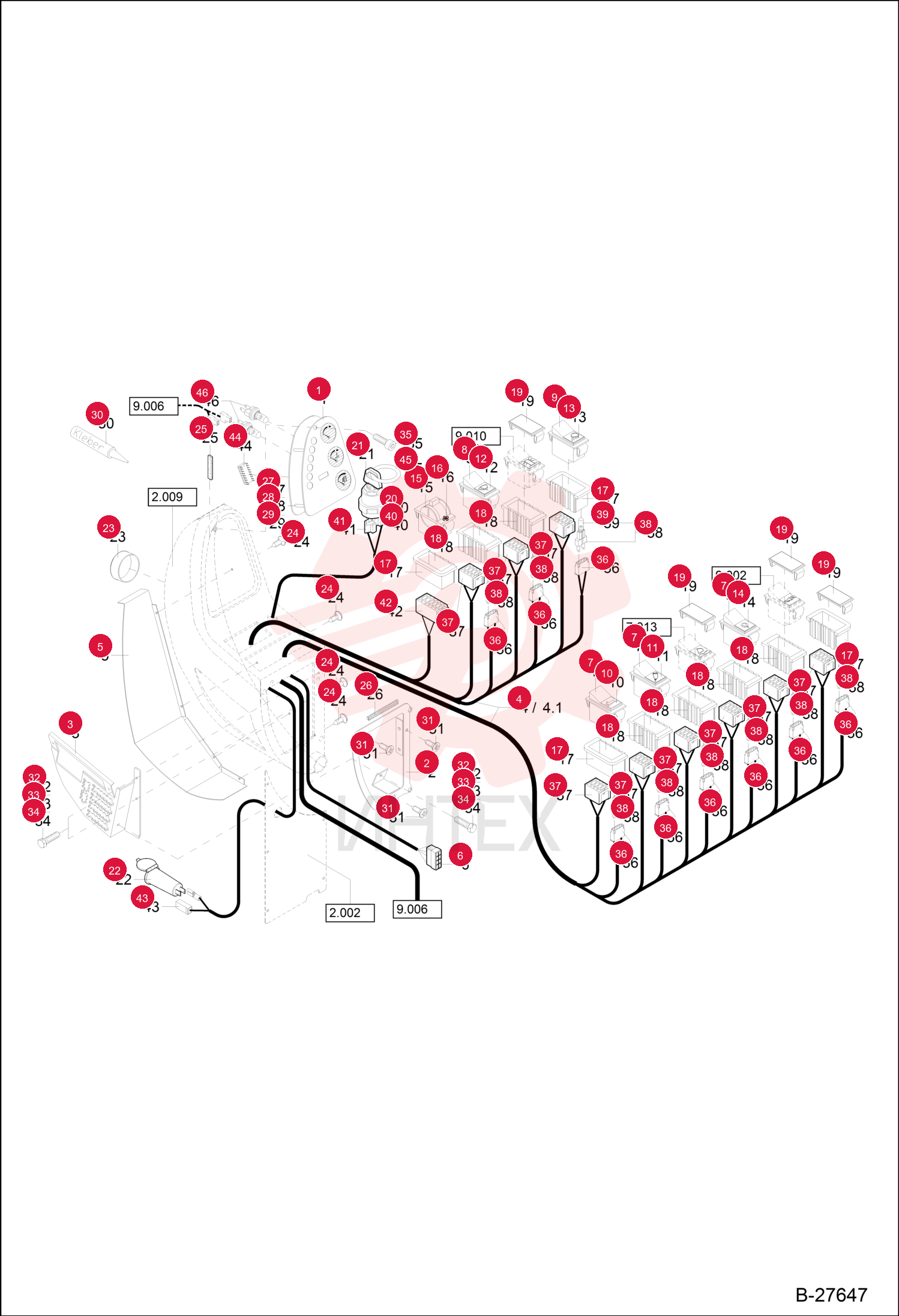

PANEL, DASH 7023525 (1)

PANEL, DASH 7023525 (1)

PANEL, DASH 7023525 (1)

1 7023525

  • 7023525 - PANEL
  • DASH
  • W/ O E-Prom - Was 5821661076

2 5821662101

  • 5821662101 - ADAPTER

3 5821662102

  • 5821662102 - BRACKET

4 5821662241

  • 5821662241 - CABLE
  • SET

5 5821662103

  • 5821662103 - CABLE SET

6 5821662104

  • 5821662104 - AIR BAFFLE

7 5350249505

  • 5350249505 - HOUSING

8 5050651363

  • 5050651363 - ROCKER SWITCH

9 5050651338

  • 5050651338 - SWITCH

10 5050651333

  • 5050651333 - SWITCH TOGGLE

11 5821662108

  • 5821662108 - SYMBOL DECAL

12 5358650269

  • 5358650269 - SYMBOL DECAL

13 5821662110

  • 5821662110 - SYMBOL DECAL

14 5358650296

  • 5358650296 - SYMBOL

15 5821662112

  • 5821662112 - SYMBOL DECAL

16 5050650311

  • 5050650311 - SWITCH

17 5821662114

  • 5821662114 - SYMBOL DECAL

18 5821662088

  • 5821662088 - CAP

19 5821662089

  • 5821662089 - SPACER

20 5050650230

  • 5050650230 - COVER

21 5050655525

  • 5050655525 - IGNITION LOCK
  • W/Ref. 21

22 5050650256

  • 5050650256 - KEY
  • IGN

23 5821662144

  • 5821662144 - PLUG
  • RECEPTACLE

24 5821662130

  • 5821662130 - MOZZLE

25 5821662129

  • 5821662129 - SCREW

26 5821662131

  • 5821662131 - SEAL

27 5821662132

  • 5821662132 - SEAL

28 5821662133

  • 5821662133 - CROWN GEAR

29 5821662134

  • 5821662134 - WASHER

30 5821662135

  • 5821662135 - KIT

31 5821662137

  • 5821662137 - GLUE KIT

32 5821662123

  • 5821662123 - SCREW

33 1008707609

  • 1008707609 - BOLT

34 5821662127

  • 5821662127 - CROWN GEAR

35 5821662126

  • 5821662126 - WASHER

36 1045707510

  • 1045707510 - SCREW

37 5050650231

  • 5050650231 - HOUSING

38 5050650225

  • 5050650225 - HOUSING

39 5050650226

  • 5050650226 - LAMP
  • W/Ref. 39

40 1813000021

  • 1813000021 - ROUND BULB

41 5050650261

  • 5050650261 - PLUG

42 5050650262

  • 5050650262 - PLUG

43 5050650287

  • 5050650287 - PLUG

44 5350249536

  • 5350249536 - HOUSING

45 1557909026

  • 1557909026 - RING

46 5755656003

  • 5755656003 - KIT BULB AND SOCKET
