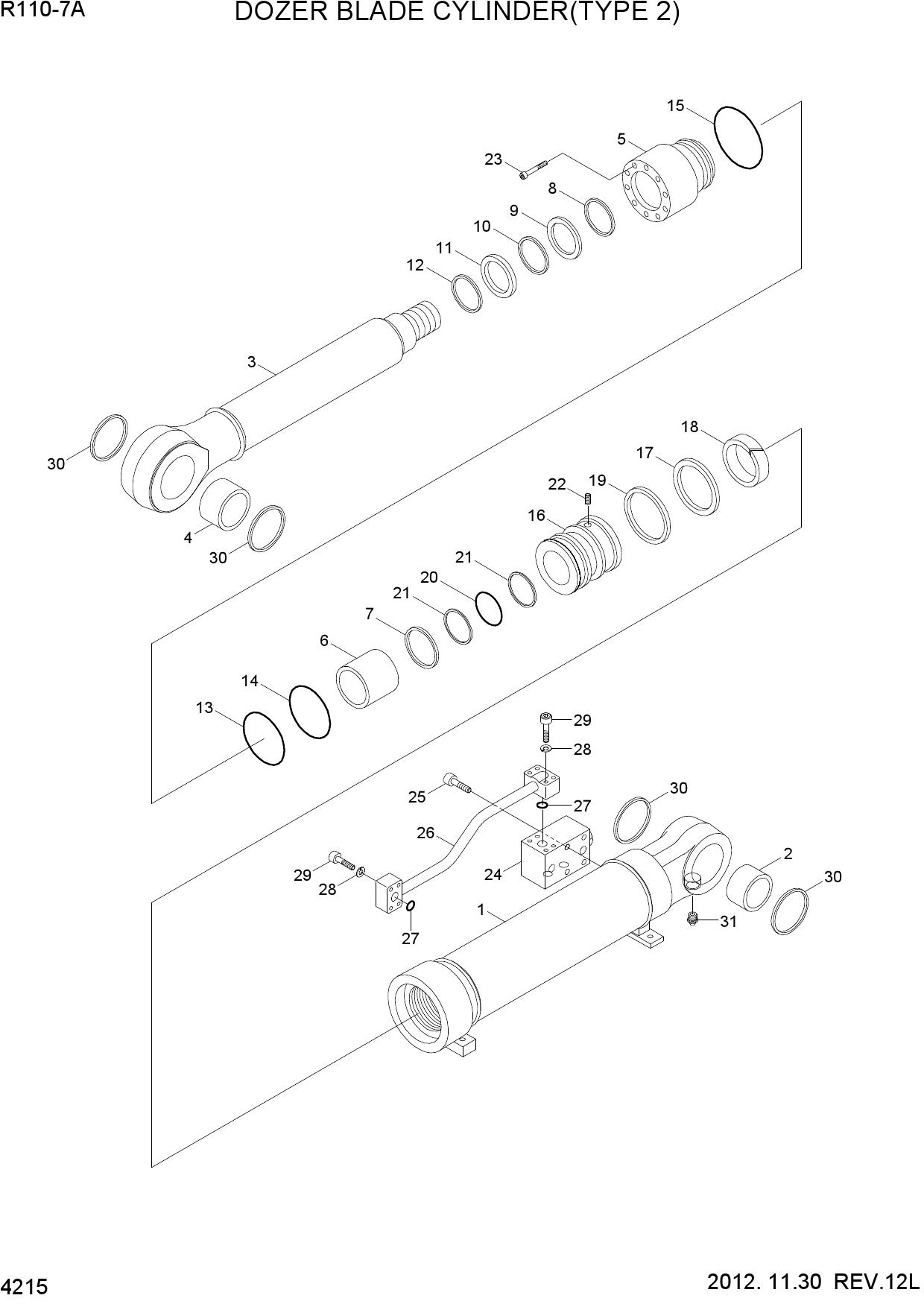

DOZER BLADE CYLINDER(TYPE 2)

DOZER BLADE CYLINDER(TYPE 2)

DOZER BLADE CYLINDER(TYPE 2)

1 XKCD-02586

  • XKCD-02586 - TUBE ASSY
  • Поз.: 1

2 XKCD-02596

  • XKCD-02596 - TUBE ASSY
  • Поз.: 1

3 XKCD-02587

  • XKCD-02587 - PIN BUSH
  • Поз.: 2

4 XKCD-02588

  • XKCD-02588 - ROD ASSY
  • Поз.: 3

5 XKCD-02587

  • XKCD-02587 - PIN BUSH
  • Поз.: 4

6 XKCD-02589

  • XKCD-02589 - ROD COVER
  • Поз.: 5

7 XKCD-01596

  • XKCD-01596 - ROD BUSH
  • Поз.: 6

8 XKCD-01009

  • XKCD-01009 - RING-RETAINING
  • Поз.: 7

9 XKCD-02553

  • XKCD-02553 - BUFFER SEAL
  • Поз.: 8

10 XKCD-02554

  • XKCD-02554 - U-PACKING
  • Поз.: 9

11 XKCD-02555

  • XKCD-02555 - BACK UP RING
  • Поз.: 10

12 XKCD-01599

  • XKCD-01599 - DUST WIPER
  • Поз.: 11

13 XKCD-01600

  • XKCD-01600 - RETAINING RING
  • Поз.: 12

14 XKCD-01198

  • XKCD-01198 - O-RING
  • Поз.: 13

15 XKCD-02483

  • XKCD-02483 - BACK UP RING
  • Поз.: 14

16 XKCD-01240

  • XKCD-01240 - O-RING
  • Поз.: 15

17 XKCD-02590

  • XKCD-02590 - PISTON
  • Поз.: 16

18 XKCD-02591

  • XKCD-02591 - PISTON SEAL
  • Поз.: 17

19 XKCD-01202

  • XKCD-01202 - RING-WEAR
  • Поз.: 18

20 XKCD-01204

  • XKCD-01204 - RING-DUST
  • Поз.: 19

21 XKCD-01363

  • XKCD-01363 - O-RING
  • Поз.: 20

22 XKCD-02592

  • XKCD-02592 - BACK UP RING
  • Поз.: 21

23 XKCD-01222

  • XKCD-01222 - SCREW-SET
  • Поз.: 22

24 XKCD-02593

  • XKCD-02593 - HEX SOCKET BOLT
  • Поз.: 23

25 XKCD-02597

  • XKCD-02597 - CHECK VALVE
  • Поз.: 24

26 XKCD-02267

  • XKCD-02267 - VALVE-CHECK
  • Поз.: 24

27 XKCD-01210

  • XKCD-01210 - HEX SOCKET BOLT
  • Поз.: 25

28 XKCD-02598

  • XKCD-02598 - PIPE ASSY
  • Поз.: 26

29 XKCD-02594

  • XKCD-02594 - PIPE ASSY
  • Поз.: 26

30 XKCD-01207

  • XKCD-01207 - O-RING
  • Поз.: 27

31 XKCD-00989

  • XKCD-00989 - SPRING WASHER
  • Поз.: 28

32 XKCD-01212

  • XKCD-01212 - HEX SOCKET BOLT
  • Поз.: 29

33 XKCD-02567

  • XKCD-02567 - PIN WIPER
  • Поз.: 30

34 XKCD-01024

  • XKCD-01024 - NIPPLE-GREASE
  • Поз.: 31
