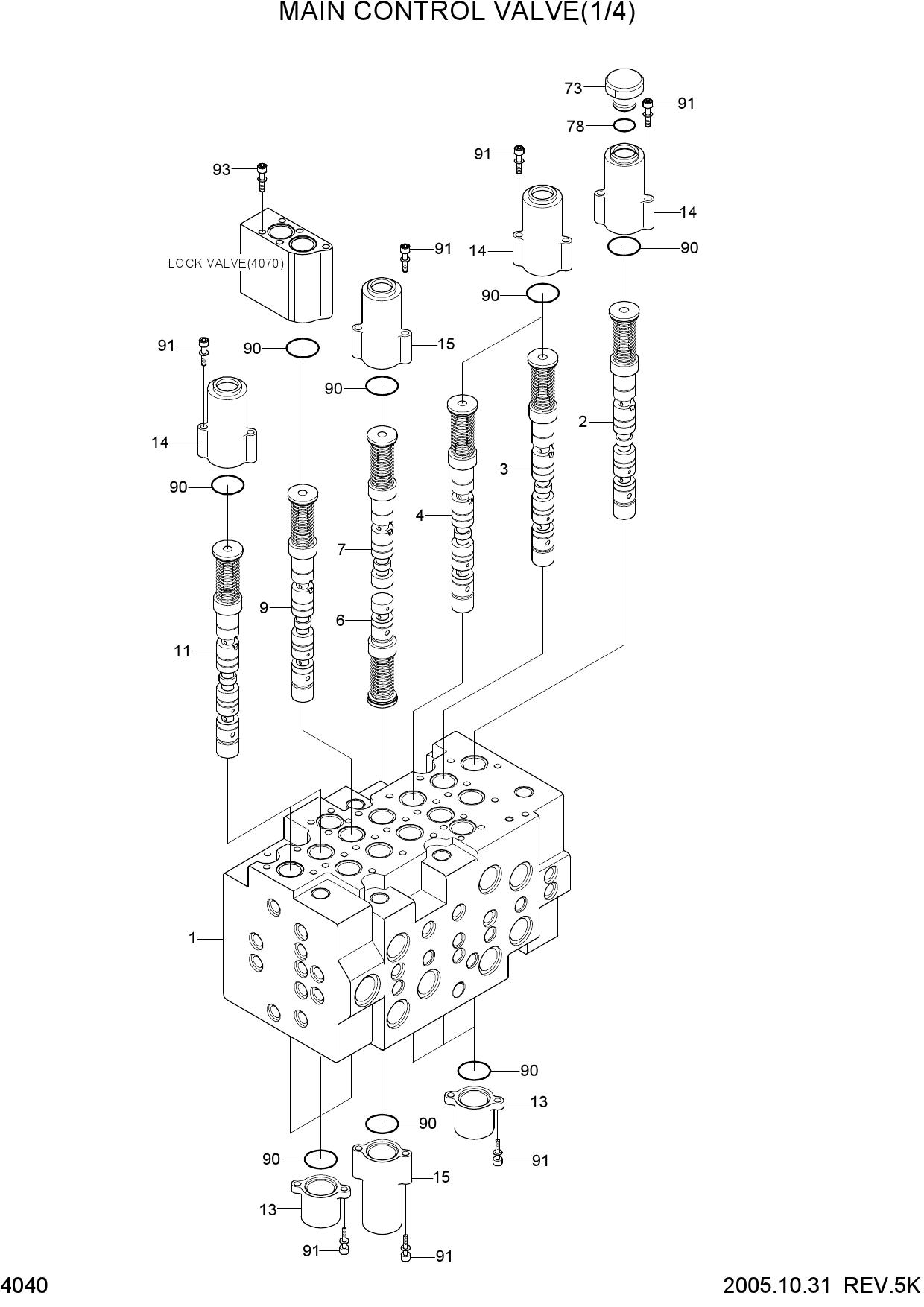

MAIN CONTROL VALVE(1/4, 1-BLOCK MCV)

MAIN CONTROL VALVE(1/4, 1-BLOCK MCV)

MAIN CONTROL VALVE(1/4, 1-BLOCK MCV)

1 XKBF-00352

  • XKBF-00352 - SPOOL ASSY
  • Поз.: 2

2 XKBF-00353

  • XKBF-00353 - SPOOL ASSY
  • Поз.: 3

3 XKBF-00354

  • XKBF-00354 - SPOOL ASSY
  • Поз.: 4

4 XKBF-00355

  • XKBF-00355 - SPOOL ASSY
  • Поз.: 6

5 XKBF-00356

  • XKBF-00356 - SPOOL ASSY
  • Поз.: 7

6 XKBF-00358

  • XKBF-00358 - SPOOL ASSY
  • Поз.: 9

7 XKBF-00011

  • XKBF-00011 - SPOOL ASSY
  • Поз.: 11

8 XKBF-00013

  • XKBF-00013 - COVER-PILOT
  • Поз.: 13

9 XKBF-00014

  • XKBF-00014 - COVER-PILOT
  • Поз.: 14

10 XKBF-00015

  • XKBF-00015 - COVER-PILOT
  • Поз.: 15

11 XKBF-00073

  • XKBF-00073 - PLUG
  • Поз.: 73

12 XKBF-00078

  • XKBF-00078 - O-RING
  • Поз.: 78

13 XKBF-00090

  • XKBF-00090 - O-RING
  • Поз.: 90

14 XKBF-00093

  • XKBF-00093 - BOLT-SOCKET HEAD
  • Поз.: 93
