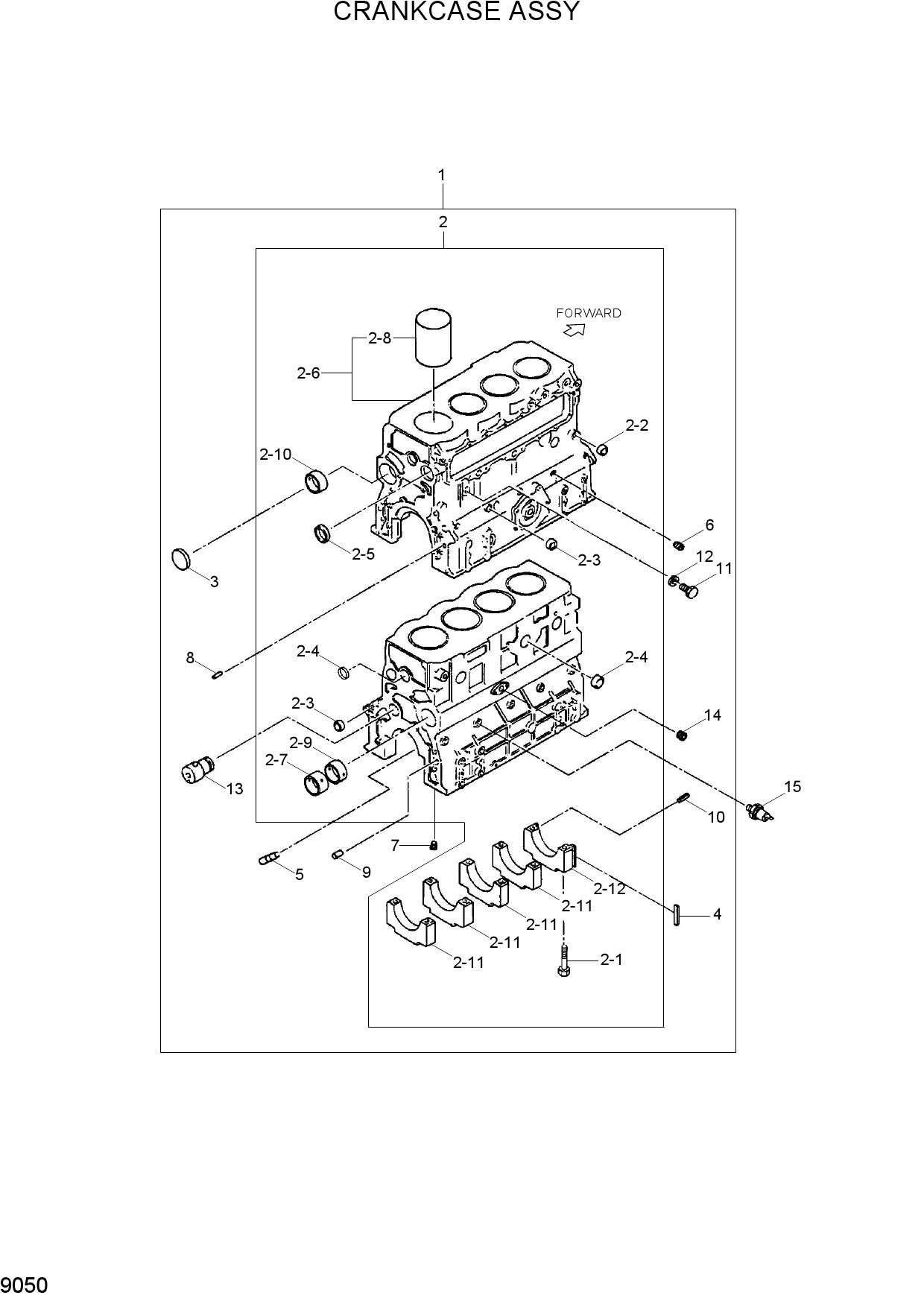

CRANKECASE ASSY
1 XJAF-00186
- XJAF-00186 - CRANKCASE ASSY
- Поз.: 1
2 XJAF-00187
- XJAF-00187 - BOLT-MAIN CAP
- Поз.: 2-1
3 XJAF-00188
- XJAF-00188 - CAP-SEALING
- Поз.: 2-2
4 XJAF-00189
- XJAF-00189 - CAP-SEALING
- Поз.: 2-3
5 XJAF-00190
- XJAF-00190 - CAP-SEALING
- Поз.: 2-4
6 XJAF-00191
- XJAF-00191 - CAP-SEALING
- Поз.: 2-5
7 XJAF-00192
- XJAF-00192 - BUSHING-CAMSHAFT
- Поз.: 2-7
8 XJAF-00193
- XJAF-00193 - SLEEVE-CYLINDER
- Поз.: 2-8
9 XJAF-00194
- XJAF-00194 - BUSHING-CAMSHAFT
- Поз.: 2-9
10 XJAF-00195
- XJAF-00195 - BUSHING-CAMSHAFT
- Поз.: 2-10
11 XJAF-00198
- XJAF-00198 - PLUG-CAM
- Поз.: 3
12 XJAF-00199
- XJAF-00199 - SEAL-SIDE
- Поз.: 4
13 XJAF-00200
- XJAF-00200 - PIPE-OIL JET
- Поз.: 5
14 XJAF-00201
- XJAF-00201 - PLUG-TAPER
- Поз.: 6
15 XJAF-00202
- XJAF-00202 - PIN-DOWEL
- Поз.: 8
16 XJAF-00203
- XJAF-00203 - PIN-DOWEL
- Поз.: 9
17 XJAF-00204
- XJAF-00204 - PIN-SPRING
- Поз.: 10
18 XJAF-00205
- XJAF-00205 - BOLT
- Поз.: 11
19 XJAF-00206
- XJAF-00206 - WASHER-SEALING
- Поз.: 12
20 XJAF-00207
- XJAF-00207 - SHAFT-IDLER
- Поз.: 13
21 XJAF-00208
- XJAF-00208 - PLUG-TAPER
- Поз.: 14
22 XJAF-00209
- XJAF-00209 - SWITCH-OIL PRESSURE
- Поз.: 15
