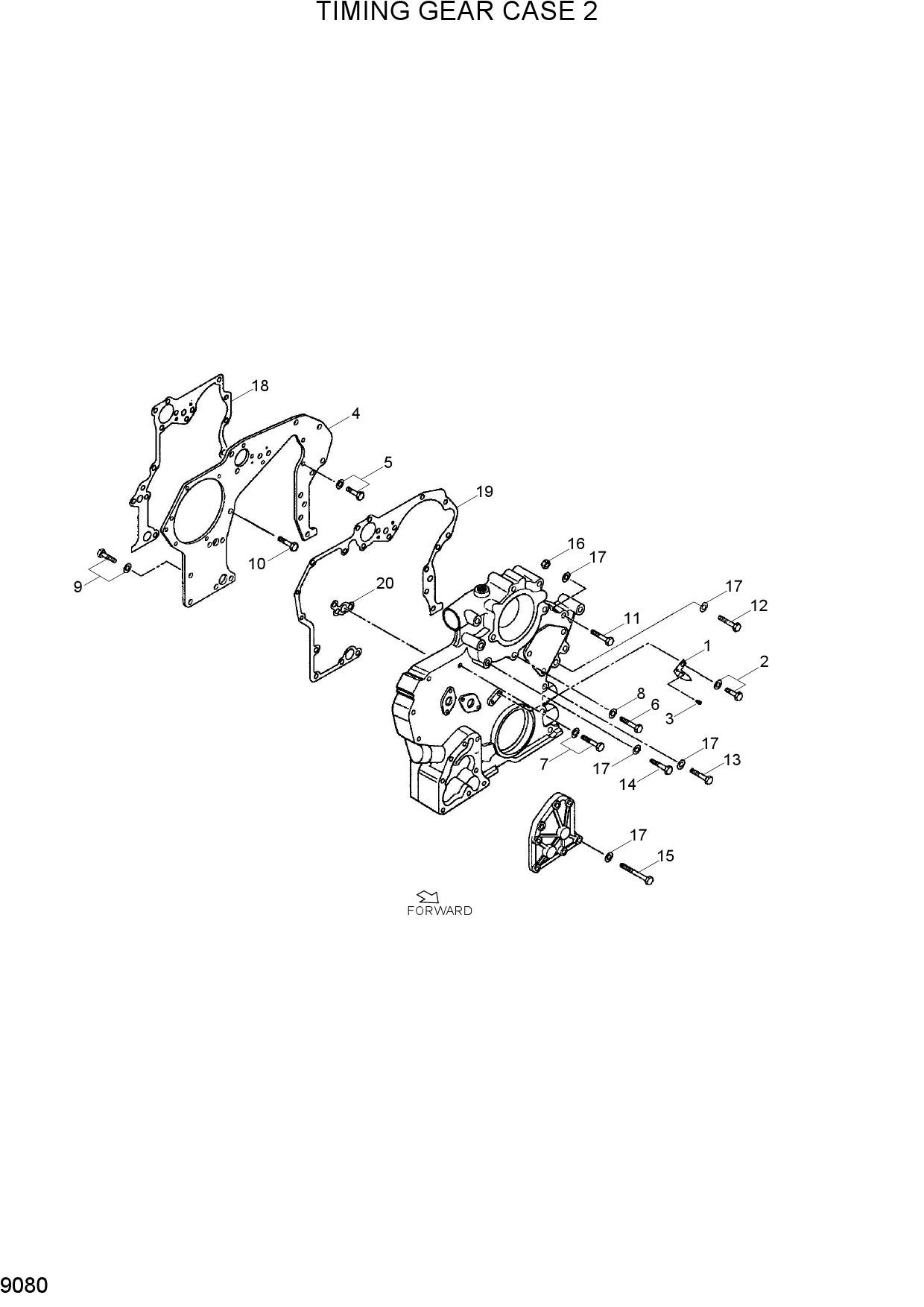

TIMING GEAR CASE 2
1 XJAF-00250
- XJAF-00250 - POINTER
- Поз.: 1
2 XJAF-00251
- XJAF-00251 - BOLT-W/WASHER
- Поз.: 2
3 XJAF-00204
- XJAF-00204 - PIN-SPRING
- Поз.: 3
4 XJAF-00252
- XJAF-00252 - PLATE-FRONT
- Поз.: 4
5 XJAF-00185
- XJAF-00185 - BOLT-W/WASHER
- Поз.: 5
6 XJAF-00253
- XJAF-00253 - BOLT
- Поз.: 6
7 XJAF-00254
- XJAF-00254 - BOLT-W/WASHER
- Поз.: 7
8 XJAF-00255
- XJAF-00255 - WASHER-SPRING
- Поз.: 8
9 XJAF-00178
- XJAF-00178 - BOLT-W/WASHER
- Поз.: 9
10 XJAF-00256
- XJAF-00256 - BOLT-COATING
- Поз.: 10
11 XJAF-00257
- XJAF-00257 - BOLT
- Поз.: 11
12 XJAF-00241
- XJAF-00241 - BOLT
- Поз.: 12
13 XJAF-00242
- XJAF-00242 - BOLT
- Поз.: 13
14 XJAF-00243
- XJAF-00243 - BOLT
- Поз.: 14
15 XJAF-00244
- XJAF-00244 - BOLT
- Поз.: 15
16 XJAF-00245
- XJAF-00245 - NUT-FLANGE
- Поз.: 16
17 XJAF-00246
- XJAF-00246 - WASHER-SPRING
- Поз.: 17
18 XJAF-00247
- XJAF-00247 - GASKET-FRONT PLATE
- Поз.: 18
19 XJAF-00248
- XJAF-00248 - GASKET-GEAR CASE
- Поз.: 19
20 XJAF-00249
- XJAF-00249 - GASKET-GEAR CASE
- Поз.: 20
