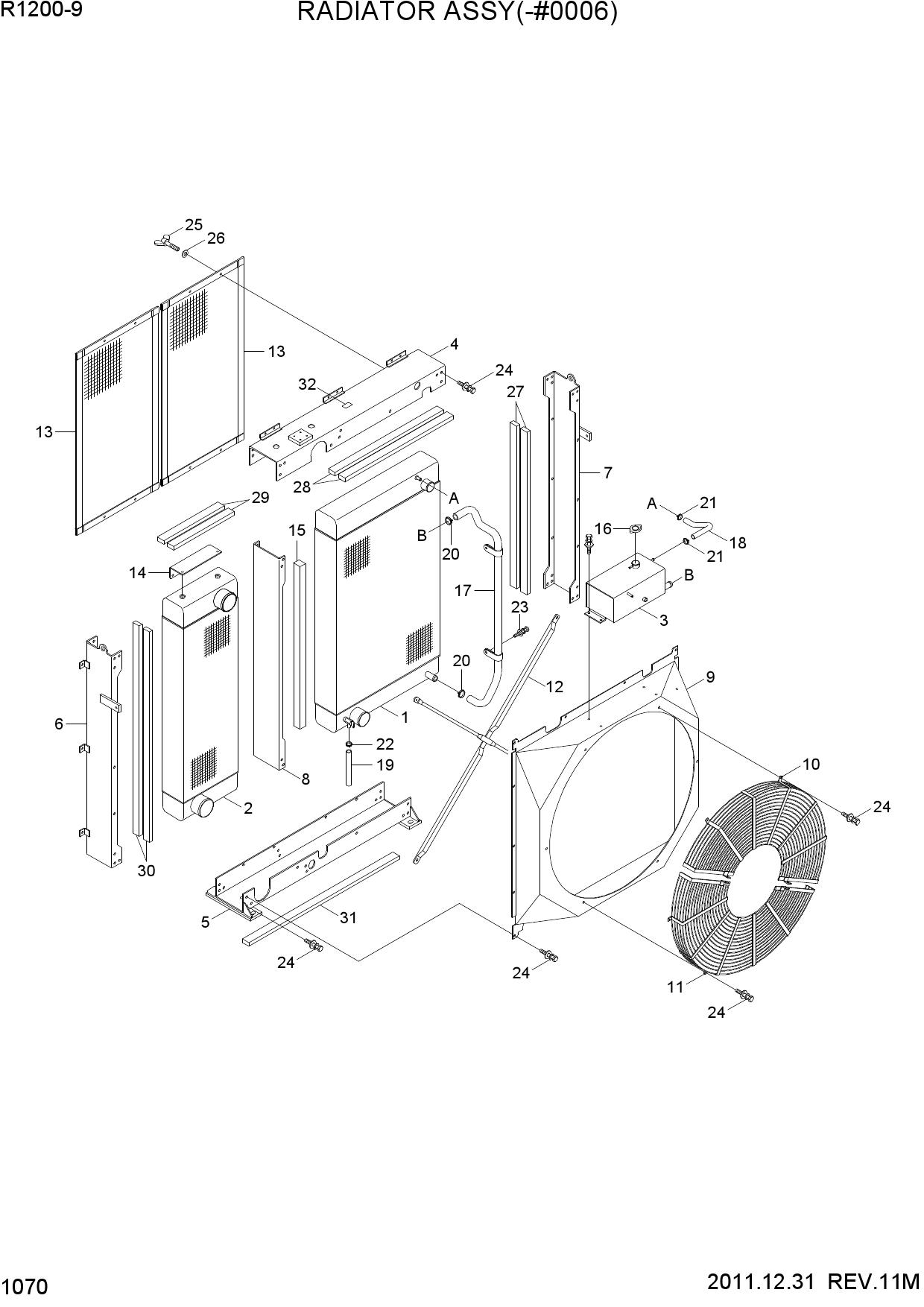

RADIATOR ASSY(-#0006)
1 11QE-40020
- 11QE-40020 - RADIATOR
- Поз.: 1
2 11QE-40201
- 11QE-40201 - AIR COOLER-CHARGE
- Поз.: 2
3 11QE-40041
- 11QE-40041 - SURGE TANK
- Поз.: 3
4 AC102195
- AC102195 - SUPPORT ASSY-TOP
- Поз.: 4
5 AC102196
- AC102196 - SUPPORT-ASSY-BOTTOM
- Поз.: 5
6 AC102197
- AC102197 - SUPPORT ASSY-LEFT
- Поз.: 6
7 AC102198
- AC102198 - SUPPORT ASSY-RIGHT
- Поз.: 7
8 AC102199
- AC102199 - SUPPORT ASSY-MIDDLE
- Поз.: 8
9 11QE-40050
- 11QE-40050 - SHROUD ASSY
- Поз.: 9
10 11QE-40060
- 11QE-40060 - FAN GUARD-UPPER
- Поз.: 10
11 11QE-40070
- 11QE-40070 - FAN GUARD-LOWER
- Поз.: 11
12 11QE-40080
- 11QE-40080 - BAR-CROSS A
- Поз.: 12
13 11QE-40090
- 11QE-40090 - NET-WIRE
- Поз.: 13
14 AC102205
- AC102205 - SHEET ASSY-CAC ANGLE
- Поз.: 14
15 AC100366
- AC100366 - ISOLATOR-5ROW
- Поз.: 15
16 11N4-49480
- 11N4-49480 - CAP
- Поз.: 16
17 AC102371
- AC102371 - HOSE-MAKE UP
- Поз.: 17
18 AC102206
- AC102206 - HOSE ASSY-OVER FLOW
- Поз.: 18
19 AC101376
- AC101376 - HOSE-DRAIN
- Поз.: 19
20 AC102372
- AC102372 - CLIP-HOSE
- Поз.: 20
21 AC102373
- AC102373 - CLIP-HOSE
- Поз.: 21
22 AC101458
- AC101458 - CLIP-HOSE
- Поз.: 22
23 S037-082066
- S037-082066 - BOLT-W/WASHER
- Поз.: 23
24 S037-102566
- S037-102566 - BOLT-W/WASHER
- Поз.: 24
25 S091-060206
- S091-060206 - BOLT-WING
- Поз.: 25
26 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 26
27 AC102207
- AC102207 - SEALING-RAD SIDE
- Поз.: 27
28 AC102208
- AC102208 - SEALING-RAD TANK
- Поз.: 28
29 AC102209
- AC102209 - SEALING-CAC TANK
- Поз.: 29
30 AC102210
- AC102210 - SEALING-CAC SIDE
- Поз.: 30
31 AC102211
- AC102211 - SEALING-BOTTOM RAD
- Поз.: 31
32 AC102212
- AC102212 - NAME PLATE
- Поз.: 32
