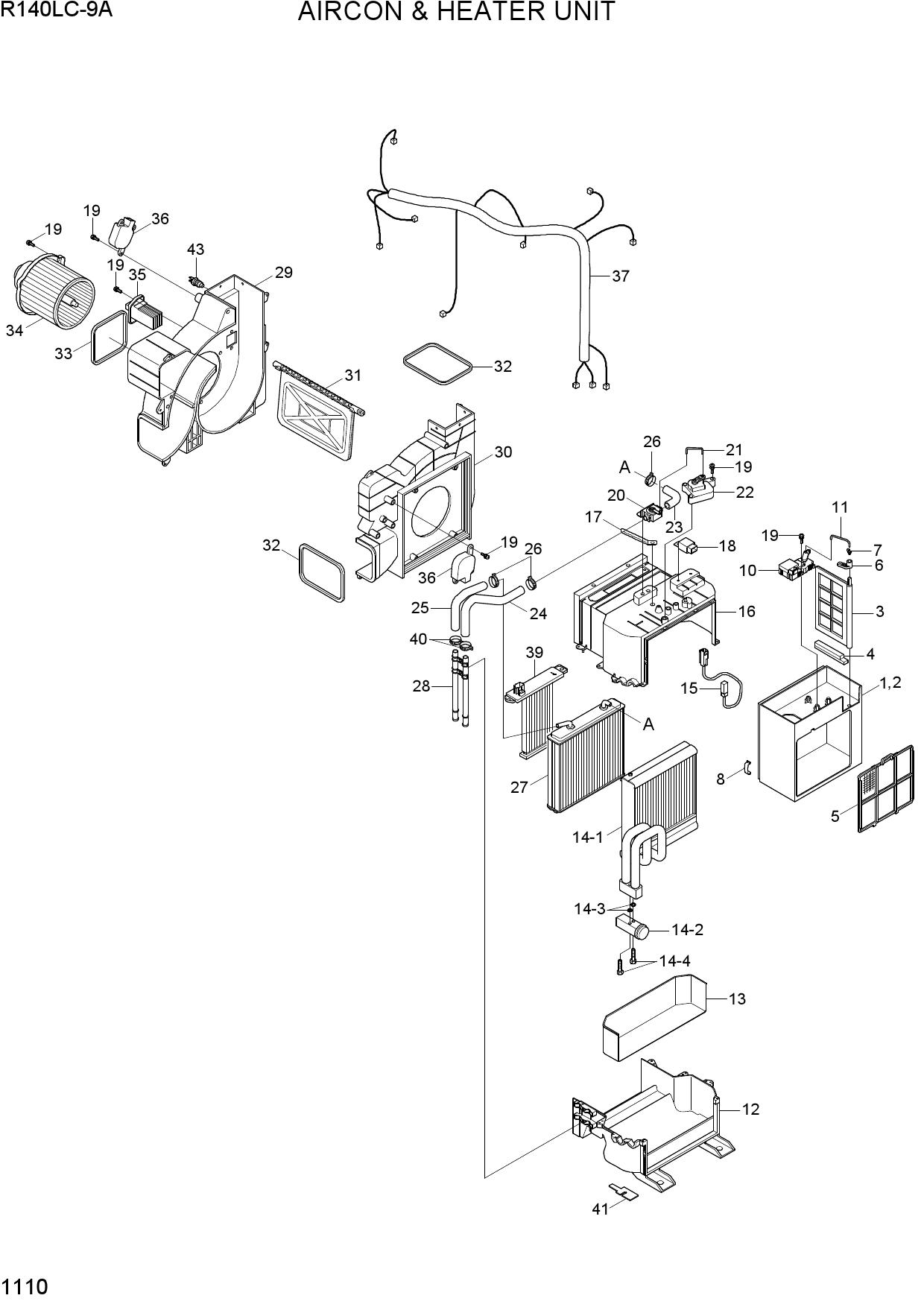

AIRCON & HEATER UNIT
1 AM70003600-3
- AM70003600-3 - SEAL-FILTER
- FRESH
- Поз.: 4
2 11N6-90770
- 11N6-90770 - AIR FILTER-REFRESH
- Поз.: 5
3 3AH0705
- 3AH0705 - ROD-CLAMP
- Поз.: 7
4 4AH0688
- 4AH0688 - CLIP-CASE
- Поз.: 8
5 11Q6-90570
- 11Q6-90570 - MOTOR ACT-INTAKE
- Поз.: 10
6 AM52300100-3
- AM52300100-3 - ROD-INTAKE
- Поз.: 11
7 AH002402
- AH002402 - HVAC CASE-LOW
- Поз.: 12
8 AH002463
- AH002463 - HVAC INSULATION-LOW
- Поз.: 13
9 11Q6-90560
- 11Q6-90560 - CORE ASSY-EVAP
- Поз.: 14
10 A1W00864
- A1W00864 - CORE-EVAP
- Поз.: 14-1
11 11Q6-90551
- 11Q6-90551 - VALVE-EXPANSION
- Поз.: 14-2
12 A302000214-2
- A302000214-2 - O-RING
- Поз.: 14-3
13 A1W00837
- A1W00837 - BOLT-TXV
- Поз.: 14-4
14 AH100730
- AH100730 - THERMISTOR
- Поз.: 15
15 4AH0643
- 4AH0643 - HOLDER-WIRE
- Поз.: 17
16 11N6-90820
- 11N6-90820 - RELAY
- Поз.: 18
17 AH000865
- AH000865 - SCREW
- Поз.: 19
18 AH001160
- AH001160 - VLAVE-WATER
- Поз.: 20
19 AH000559
- AH000559 - ROD-TEMP
- Поз.: 21
20 AH100656
- AH100656 - MOTOR ACT ASSY-TEMP
- Поз.: 22
21 AH001287
- AH001287 - HOSE-INLET
- WATER
- Поз.: 23
22 AH002411
- AH002411 - HOSE-INLET
- WATER
- Поз.: 24
23 AH002412
- AH002412 - HOSE-OUTLET
- WATER
- Поз.: 25
24 AH001853
- AH001853 - CLAMP-WATER HOSE
- Поз.: 26
25 11Q6-90540
- 11Q6-90540 - HEATER SET-RAD
- Поз.: 27
26 AH002410
- AH002410 - PIPE-INLET/OUTLET
- Поз.: 28
27 AH002407
- AH002407 - DOOR ASSY-VENT
- Поз.: 31
28 AW800003-3
- AW800003-3 - SEAL-SPONGE A
- Поз.: 32
29 AW800004-3
- AW800004-3 - SEAL-SPONGE
- B
- Поз.: 33
30 11N6-90700
- 11N6-90700 - FAN & MOTOR
- Поз.: 34
31 11Q6-90530
- 11Q6-90530 - FET
- Поз.: 35
32 11Q6-90520
- 11Q6-90520 - MOTOR ACT ASSY-VENT DF
- Поз.: 36
33 11Q6-90600
- 11Q6-90600 - WIRING ASSY-FATC
- Поз.: 37
34 11Q6-90502
- 11Q6-90502 - APTC ASSY
- Поз.: 39
35 AH000314
- AH000314 - CLAMP-H/RAD PIPE
- Поз.: 40
36 AA000079
- AA000079 - COVER FILM-TXV
- Поз.: 41
37 11N6-90890
- 11N6-90890 - SENSOR-TEMP
- Поз.: 43
