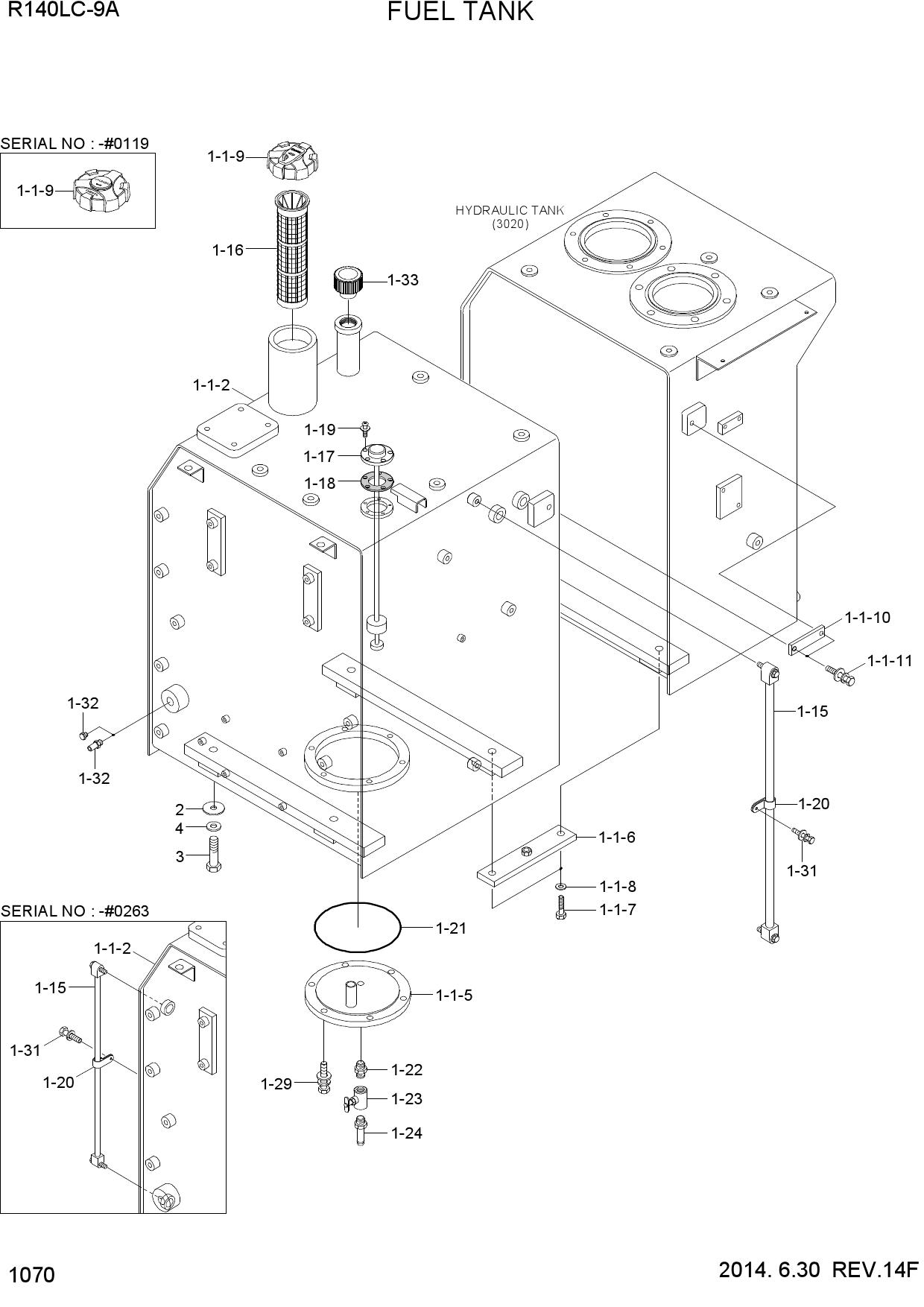

FUEL TANK
1 37Q4-07311
- 37Q4-07311 - FUEL TANK WA
- Поз.: 1-1-2
2 37Q4-07312
- 37Q4-07312 - FUEL TANK WA
- Поз.: 1-1-2
3 31Q6-02130
- 31Q6-02130 - COVER-DRAIN
- Поз.: 1-1-5
4 31Q4-01220
- 31Q4-01220 - PLATE
- Поз.: 1-1-6
5 S017-20040D
- S017-20040D - BOLT-HEX
- Поз.: 1-1-7
6 S441-200006
- S441-200006 - WASHER-HARDENED
- Поз.: 1-1-8
7 31Q4-02160
- 31Q4-02160 - FUEL CAP ASSY
- Поз.: 1-1-9
8 32Q4-02160
- 32Q4-02160 - FUEL CAP ASSY
- Поз.: 1-1-9
9 31Q6-01340
- 31Q6-01340 - PLATE
- Поз.: 1-1-10
10 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 1-1-11
11 33Q4-02060
- 33Q4-02060 - GAUGE-LEVEL
- Поз.: 1-15
12 33Q4-02070
- 33Q4-02070 - GAUGE-LEVEL
- Поз.: 1-15
13 31M9-02080
- 31M9-02080 - STRAINER
- Поз.: 1-16
14 21Q4-10700
- 21Q4-10700 - SENDER-FUEL
- Поз.: 1-17
15 E128-1053
- E128-1053 - GASKET
- Поз.: 1-18
16 21E4-1104
- 21E4-1104 - SCREW
- Поз.: 1-19
17 S543-180002
- S543-180002 - CLAMP-TUBE
- Поз.: 1-20
18 S543-140002
- S543-140002 - CLAMP-TUBE
- Поз.: 1-20
19 S632-170001
- S632-170001 - O-RING
- Поз.: 1-21
20 31E5-3049
- 31E5-3049 - FITTING
- Поз.: 1-22
21 E131-1006
- E131-1006 - VALVE-NEEDLE
- Поз.: 1-23
22 P090-100404
- P090-100404 - CONNECTOR-HOSE
- Поз.: 1-24
23 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 1-29
24 S035-081516
- S035-081516 - BOLT-W/WASHER
- Поз.: 1-31
25 P090-101208
- P090-101208 - CONNECTOR-HOSE
- Поз.: 1-32
26 P220-430204
- P220-430204 - PLUG-HEX
- Поз.: 1-32
27 11Q4-01280
- 11Q4-01280 - FILTER-AIR BREATHER
- Поз.: 1-33
28 11Q4-01281
- 11Q4-01281 - FILTER-AIR BREATHER
- Поз.: 1-33
29 31N8-01300
- 31N8-01300 - SHIM(1.0T)
- Поз.: 2
30 S017-20045D
- S017-20045D - BOLT-HEX
- Поз.: 3
31 91E6-60200-DA
- 91E6-60200-DA - WASHER-HARDENED
- Поз.: 4
