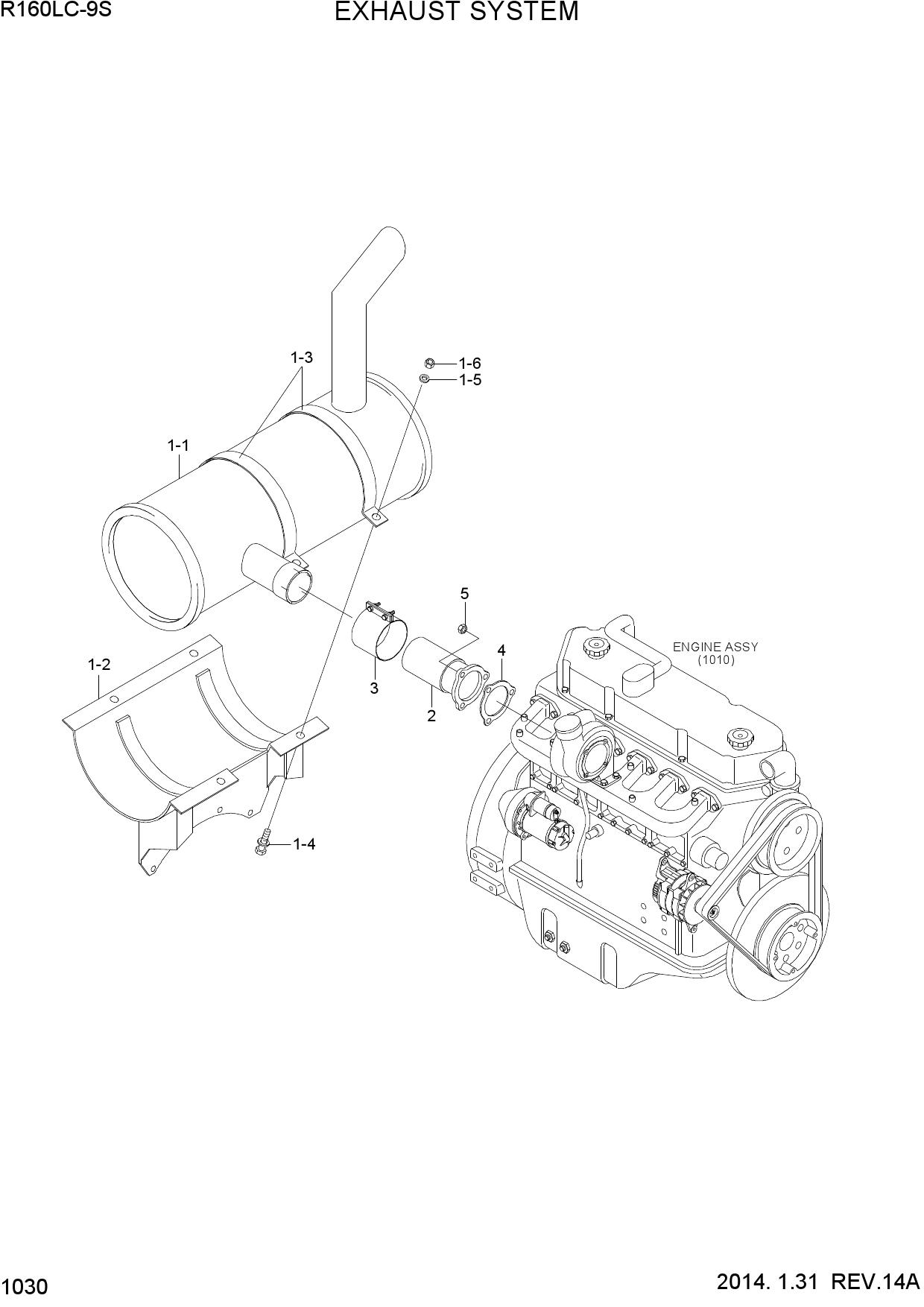

EXHAUST SYSTEM
1 11N5-32200
- 11N5-32200 - MUFFLER SUB ASSY
- Поз.: 1
2 11N5-32201
- 11N5-32201 - MUFFLER SUB ASSY
- Поз.: 1
3 11N5-30020
- 11N5-30020 - MUFFLER WA
- Поз.: 1-1
4 11N5-30021
- 11N5-30021 - MUFFLER WA
- Поз.: 1-1
5 11N5-30030
- 11N5-30030 - BRACKET-MUFFLER
- Поз.: 1-2
6 11EM-30130
- 11EM-30130 - CLAMP-BAND
- Поз.: 1-3
7 S037-103056
- S037-103056 - BOLT-W/WASHER
- Поз.: 1-4
8 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 1-5
9 S205-10100B
- S205-10100B - NUT-HEX
- Поз.: 1-6
10 11N5-30050
- 11N5-30050 - CONNECTOR-PIPE
- Поз.: 2
11 11N6-30040
- 11N6-30040 - CLAMP-SEAL
- Поз.: 3
12 11LM-50090
- 11LM-50090 - CLAMP ASSY-SEAL
- Поз.: 3
13 11EE-31040
- 11EE-31040 - GASKET
- Поз.: 4
14 11EE-31041
- 11EE-31041 - GASKET
- Поз.: 4
15 S206-101006
- S206-101006 - NUT-HEX
- Поз.: 5
16 S206-101006
- S206-101006 - NUT-HEX
- Поз.: 5
