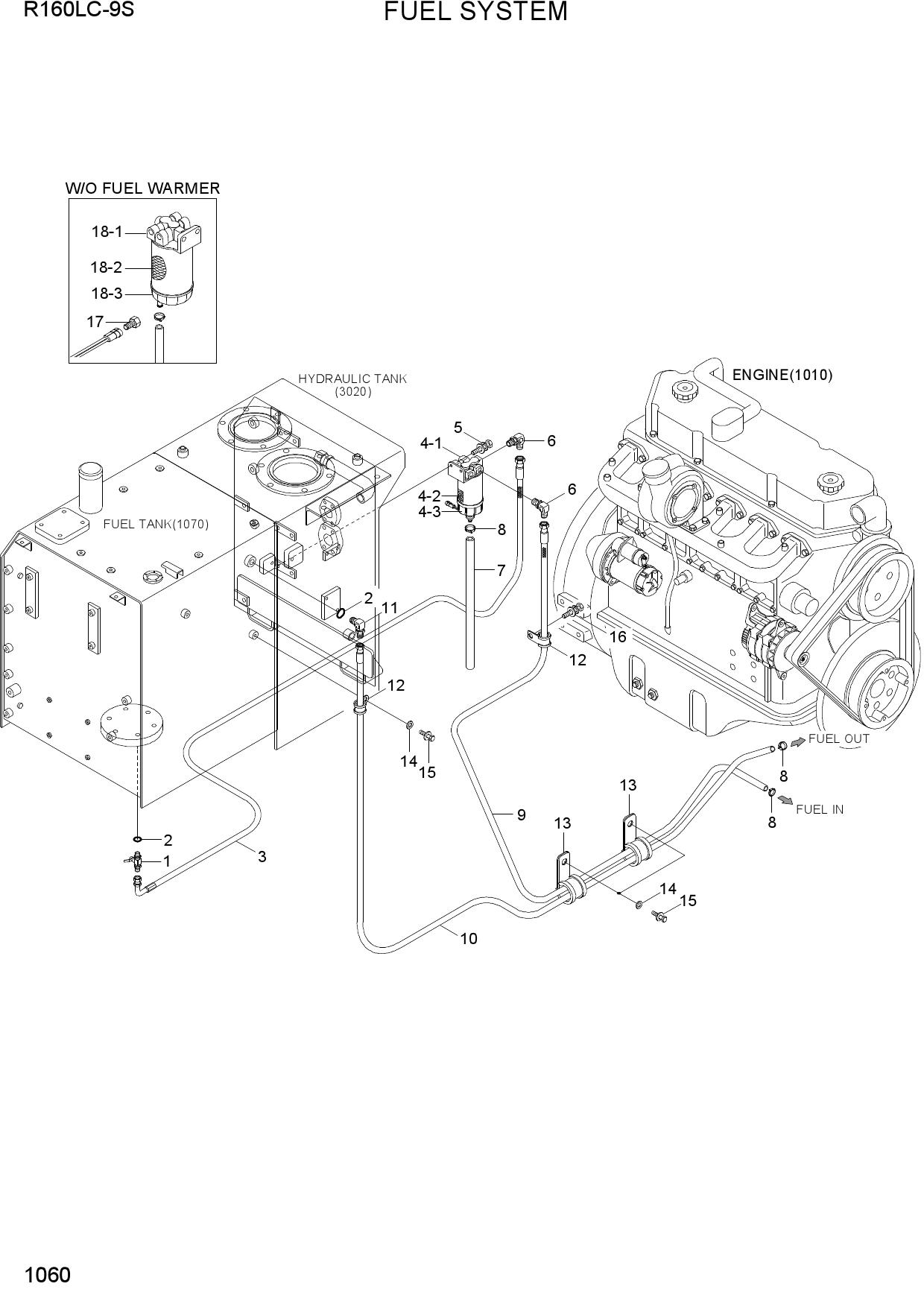

FUEL SYSTEM
1 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 1
2 S631-018004
- S631-018004 - O-RING
- Поз.: 1-1
3 S631-018004
- S631-018004 - O-RING
- Поз.: 2
4 11N6-53020
- 11N6-53020 - HOSE-FUEL
- Поз.: 3
5 11NB-70400
- 11NB-70400 - PREFILTER ASSY
- Поз.: 4
6 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 4-1
7 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 4-2
8 11NB-70410
- 11NB-70410 - BOWL ASSY-W/HEATER
- Поз.: 4-3
9 11NB-70420
- 11NB-70420 - GASKET-DRAIN KNOB
- Поз.: 4-3-1
10 S035-083026
- S035-083026 - BOLT-W/WASHER
- Поз.: 5
11 11LB-20350
- 11LB-20350 - ELBOW-90
- Поз.: 6
12 11M8-50030
- 11M8-50030 - HOSE ASSY
- Поз.: 7
13 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 8
14 11N8-57060
- 11N8-57060 - HOSE-FUEL
- Поз.: 9
15 11N4-50030
- 11N4-50030 - HOSE-FUEL
- Поз.: 10
16 P020-110014
- P020-110014 - ELBOW-90
- Поз.: 11
17 31L7-10190
- 31L7-10190 - CLAMP-TUBE
- Поз.: 12
18 31L7-10210
- 31L7-10210 - CLAMP-TUBE INS
- Поз.: 13
19 S403-10100B
- S403-10100B - WASHER-PLAIN
- Поз.: 14
20 S017-100156
- S017-100156 - BOLT-HEX
- Поз.: 15
21 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 16
22 11N8-50070
- 11N8-50070 - PLUG
- Поз.: 17
23 11LB-20300
- 11LB-20300 - PREFILTER ASSY
- Поз.: 18
24 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 18-1
25 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 18-2
26 11LD-20260
- 11LD-20260 - BOWL ASSY-W/KNOB
- Поз.: 18-3
