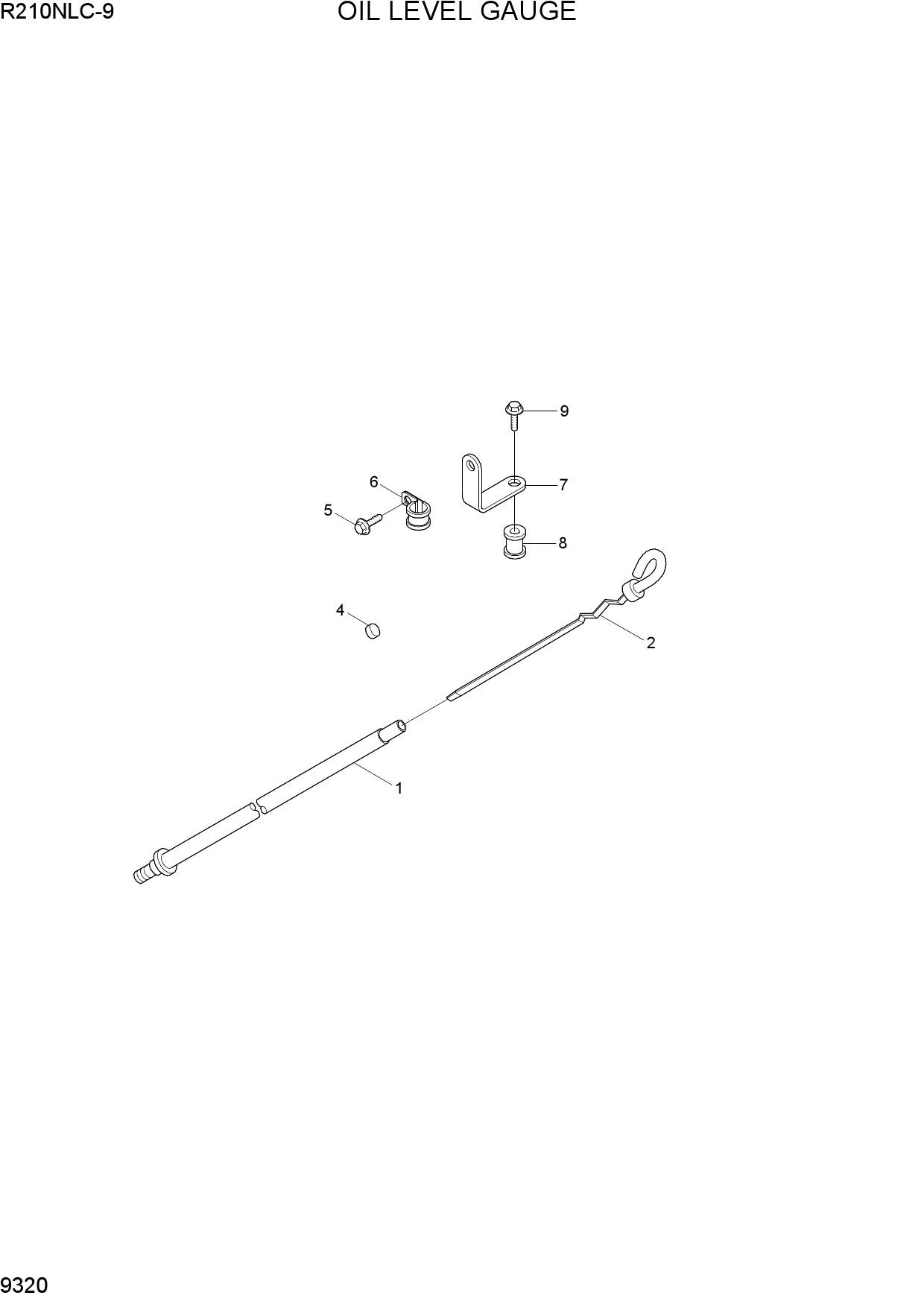

OIL LEVEL GAUGE

OIL LEVEL GAUGE

OIL LEVEL GAUGE

1 3968984

  • 3968984 - TUBE-OIL GAUGE
  • Поз.: 1

2 4932089

  • 4932089 - DIPSTICK
  • Поз.: 2

3 3900955

  • 3900955 - PLUG-EXPANSION
  • Поз.: 4

4 3900629

  • 3900629 - SCREW-H/FLANGE CAP
  • Поз.: 5

5 3863405

  • 3863405 - CLIP
  • Поз.: 6

6 3965733

  • 3965733 - BRACE-TUBE
  • Поз.: 7

7 3864015

  • 3864015 - ISOLATOR-VIBRATION
  • Поз.: 8

8 3902460

  • 3902460 - SCREW-HEX F/HEAD CAP
  • Поз.: 9
