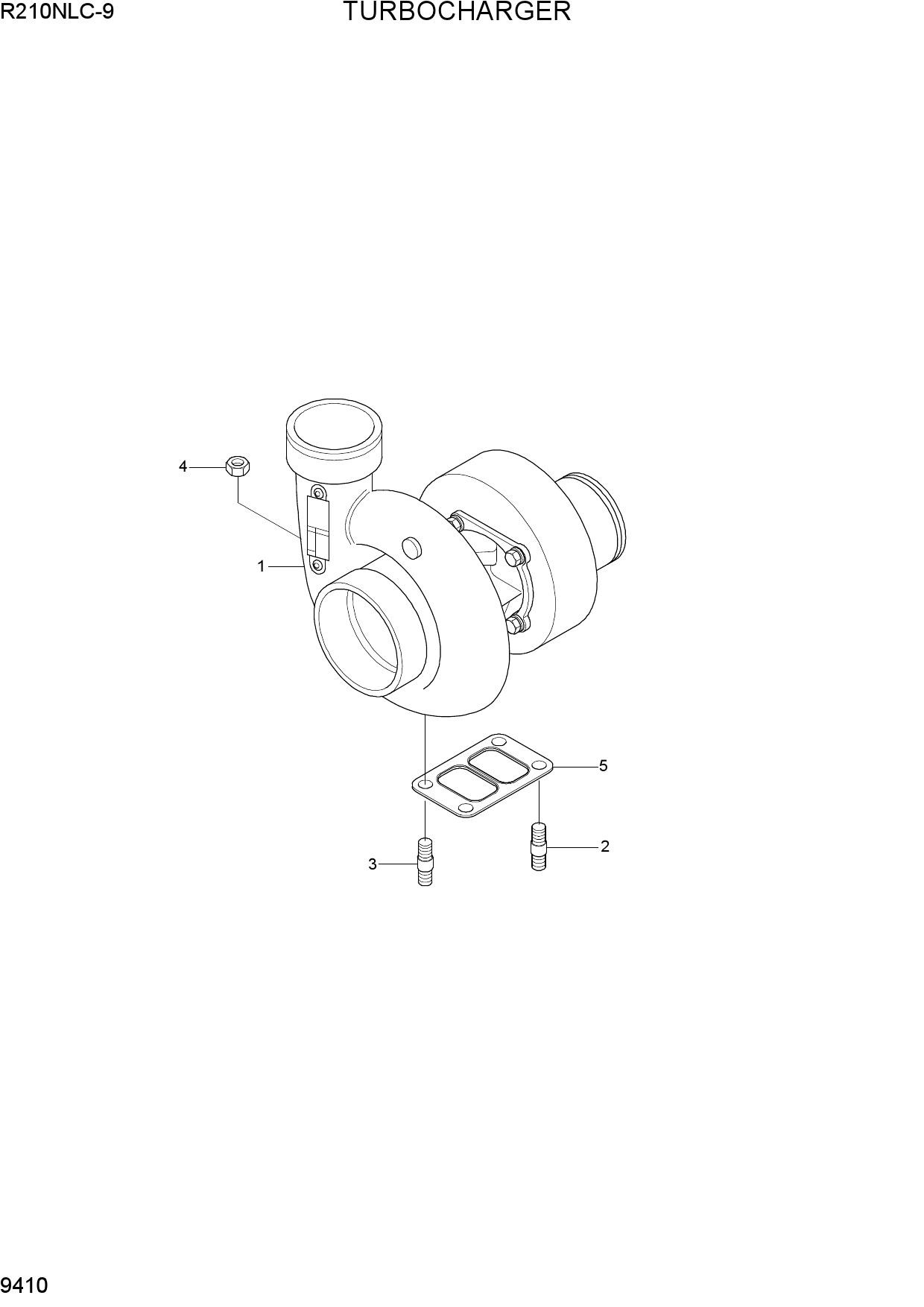

TURBOCHARGER

TURBOCHARGER

TURBOCHARGER

1 4038288

  • 4038288 - TURBOCHARGER
  • Поз.: 1

2 3283686

  • 3283686 - STUD
  • Поз.: 2

3 3818823

  • 3818823 - STUD
  • Поз.: 3

4 3818824

  • 3818824 - NUT-HEX FLANGE
  • Поз.: 4

5 3949530

  • 3949530 - GASKET-TURBOCHARGER
  • Поз.: 5
