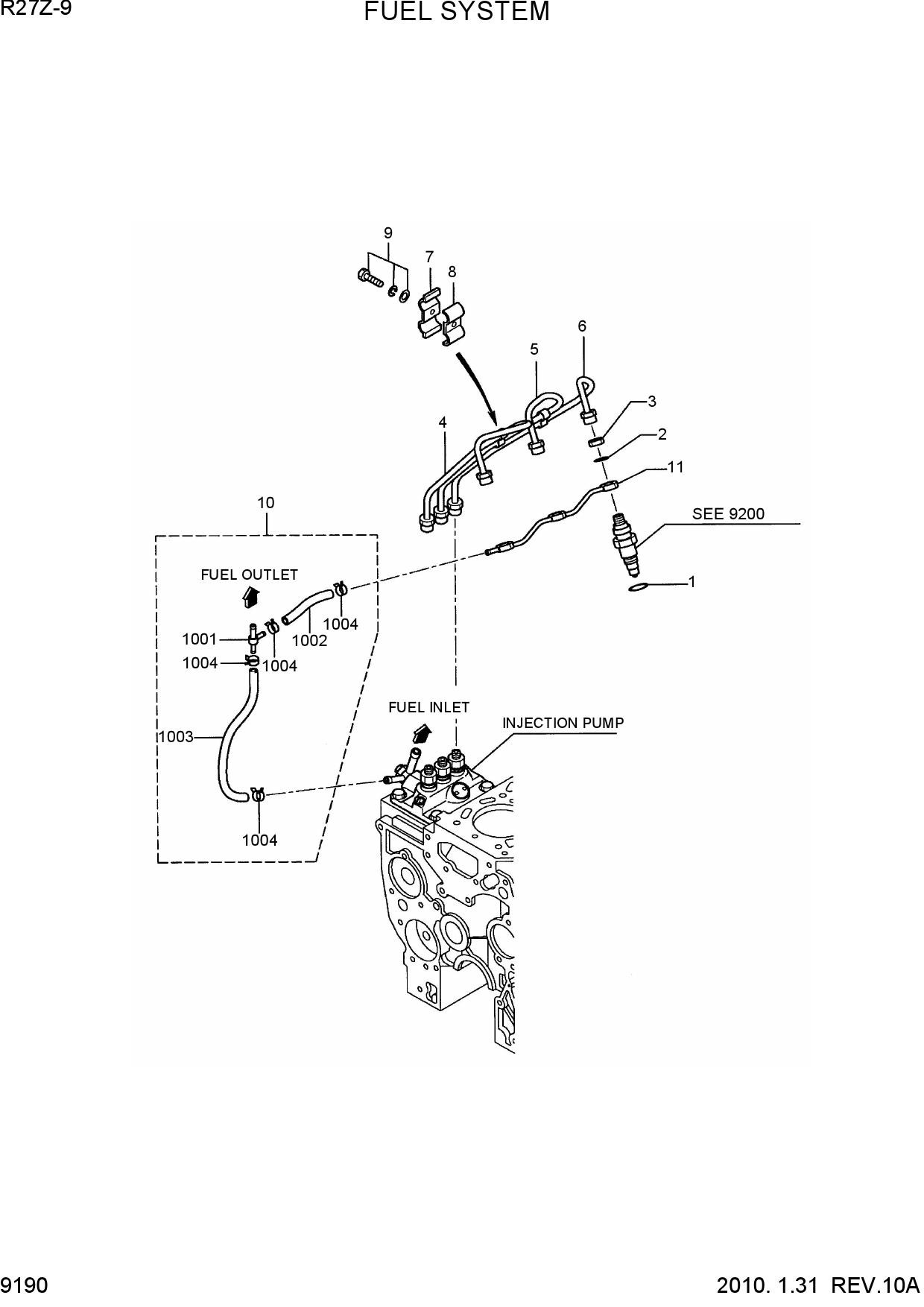

FUEL SYSTEM
1 XJAF-01092
- XJAF-01092 - GASKET
- Поз.: 1
2 XJAF-01091
- XJAF-01091 - GASKET
- Поз.: 2
3 XJAF-01956
- XJAF-01956 - NUT
- Поз.: 3
4 XJAF-02935
- XJAF-02935 - PIPE-INJECTION NO.1
- Поз.: 4
5 XJAF-02936
- XJAF-02936 - PIPE-INJECTION NO.2
- Поз.: 5
6 XJAF-02937
- XJAF-02937 - PIPE-INJECTION NO.3
- Поз.: 6
7 XJAF-00759
- XJAF-00759 - CLAMP(A)
- Поз.: 7
8 XJAF-00760
- XJAF-00760 - CLAMP(B)
- Поз.: 8
9 XJAF-02628
- XJAF-02628 - BOLT-W/WASHER
- Поз.: 9
10 XJAF-01734
- XJAF-01734 - HOSE ASSY-AIR VENT
- Поз.: 10
11 XJAF-00435
- XJAF-00435 - JOINT-THREE WAY
- Поз.: 1001
12 XJAF-02095
- XJAF-02095 - HOSE-FUEL
- Поз.: 1002
13 XJAF-02098
- XJAF-02098 - HOSE-FUEL
- Поз.: 1003
14 XJAF-00439
- XJAF-00439 - CLIP-FUEL
- Поз.: 1004
15 XJAF-01733
- XJAF-01733 - PIPE-FUEL LEAK OFF
- Поз.: 11
