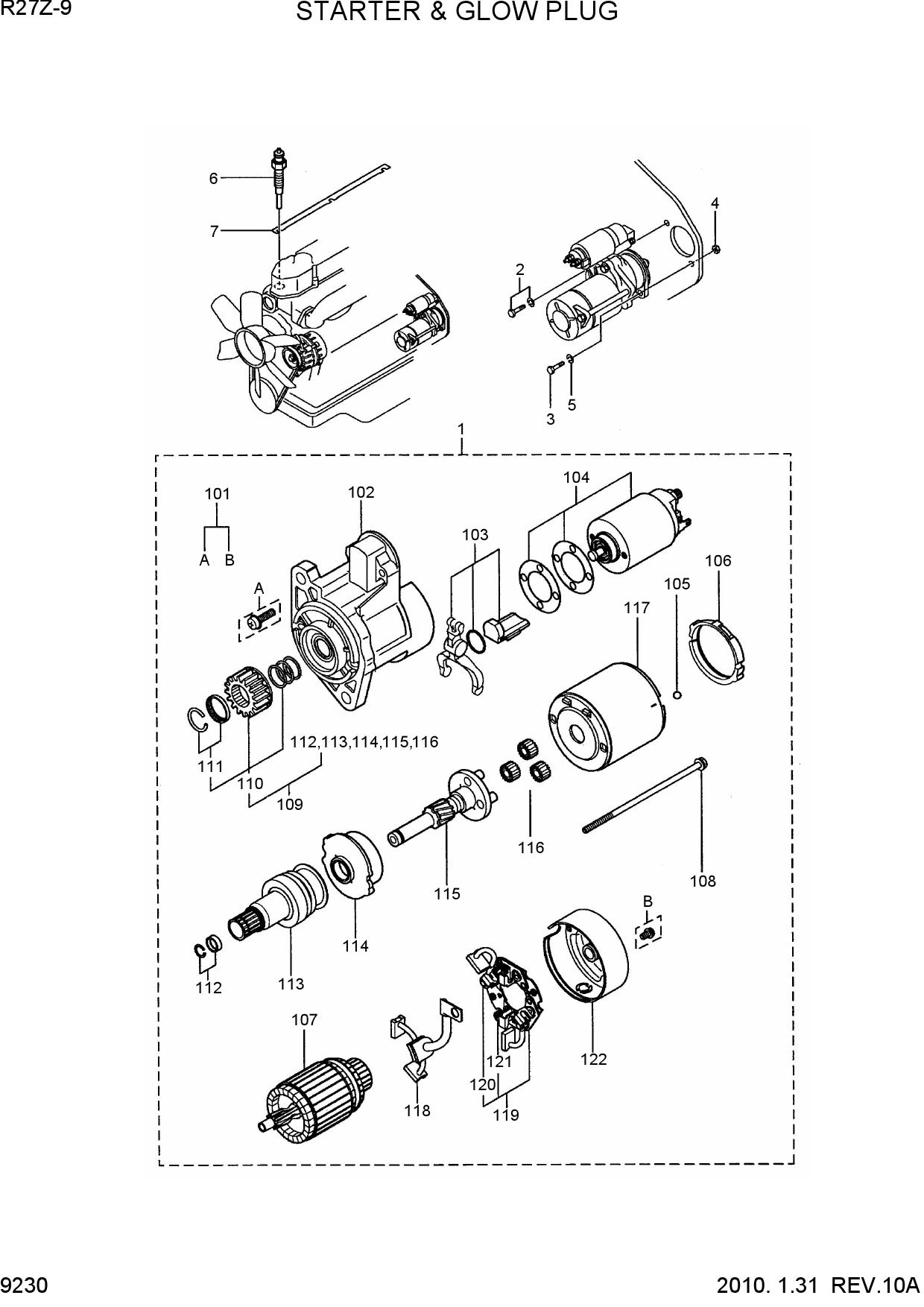

STARTER & GLOW PLUG
1 XJAF-01740
- XJAF-01740 - STARTER ASSY
- Поз.: 1
2 XJAF-01904
- XJAF-01904 - SCREW SET
- Поз.: 101
3 XJAF-01911
- XJAF-01911 - BRACKET ASSY-FRONT
- Поз.: 102
4 XJAF-01925
- XJAF-01925 - LEVER SET
- Поз.: 103
5 XJAF-01896
- XJAF-01896 - SWITCH ASSY
- Поз.: 104
6 XJAF-00510
- XJAF-00510 - BALL
- Поз.: 105
7 XJAF-01906
- XJAF-01906 - PACKING
- Поз.: 106
8 XJAF-01887
- XJAF-01887 - ARMATURE SET
- Поз.: 107
9 XJAF-01929
- XJAF-01929 - BOLT
- Поз.: 108
10 XJAF-01894
- XJAF-01894 - SHAFT ASSY-CLUTCH
- Поз.: 109
11 XJAF-01909
- XJAF-01909 - PINION SET
- Поз.: 110
12 XJAF-01899
- XJAF-01899 - STOPPER SET
- Поз.: 111
13 XJAF-01898
- XJAF-01898 - STOPPER SET
- Поз.: 112
14 XJAF-01889
- XJAF-01889 - CLUTCH-OVER RUNNING
- Поз.: 113
15 XJAF-01888
- XJAF-01888 - GEAR ASY
- Поз.: 114
16 XJAF-01893
- XJAF-01893 - SHAFT ASSY-GEAR
- Поз.: 115
17 XJAF-01891
- XJAF-01891 - GEAR ASSY
- Поз.: 116
18 XJAF-01922
- XJAF-01922 - YOKE ASSY
- Поз.: 117
19 XJAF-01916
- XJAF-01916 - BRUSH ASSY
- Поз.: 118
20 XJAF-01918
- XJAF-01918 - HOLDER ASSY-BRUSH
- Поз.: 119
21 XJAF-01901
- XJAF-01901 - SPRING-BRUSH
- Поз.: 120
22 XJAF-01902
- XJAF-01902 - SPRING-BRUSH
- Поз.: 121
23 XJAF-01913
- XJAF-01913 - BRACKET ASSY-REAR
- Поз.: 122
24 XJAF-01983
- XJAF-01983 - BOLT-W/WASHER
- Поз.: 2
25 XJAF-02088
- XJAF-02088 - BOLT
- Поз.: 3
26 XJAF-01991
- XJAF-01991 - NUT
- Поз.: 4
27 XJAF-02003
- XJAF-02003 - WASHER-SPRING
- Поз.: 5
28 XJAF-01788
- XJAF-01788 - PLUG-GLOW
- Поз.: 6
29 XJAF-01741
- XJAF-01741 - PLATE-CONNECTOR
- Поз.: 7
