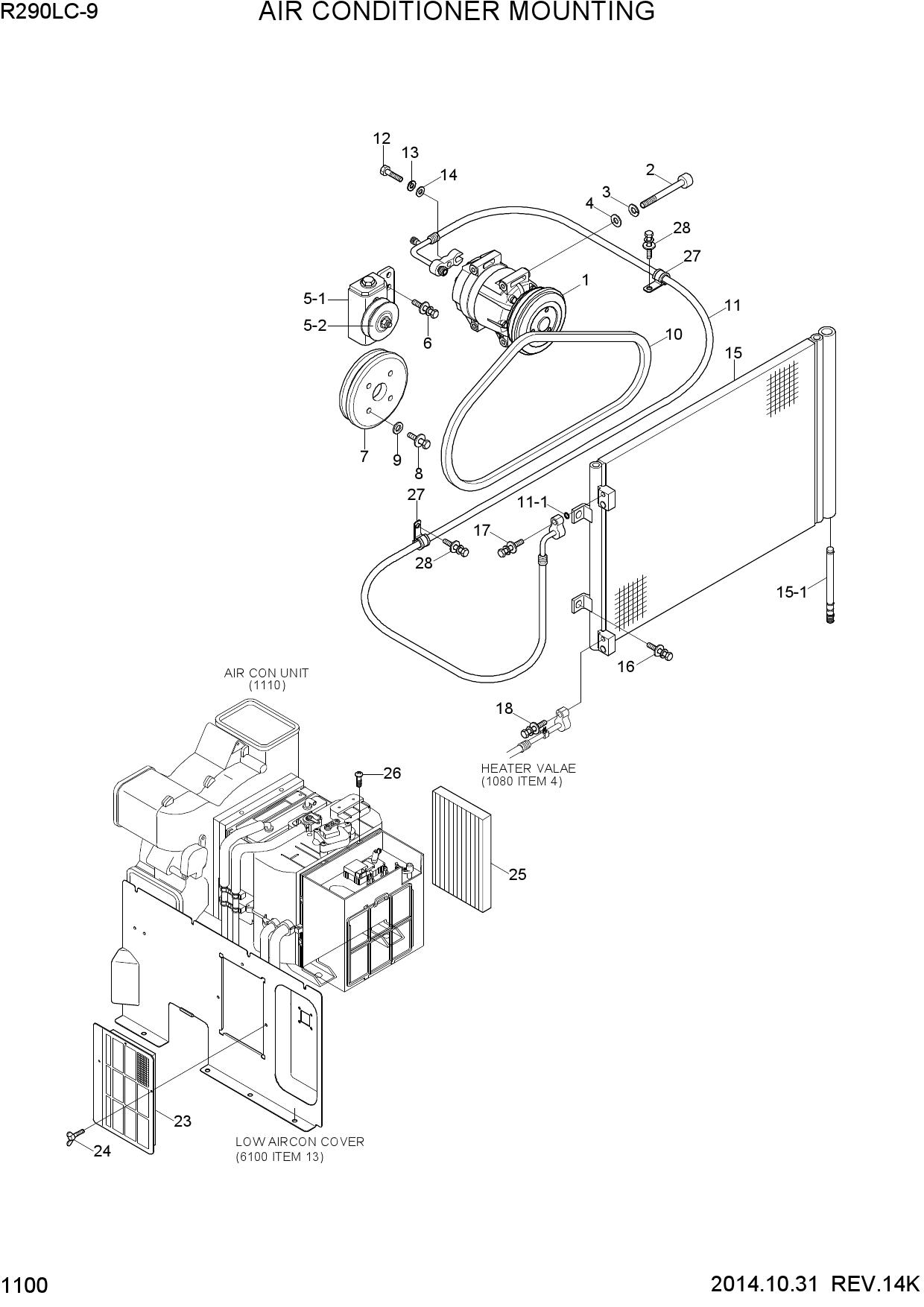

AIR CONDITIONER MOUNTING
1 11Q6-90040
- 11Q6-90040 - COMPRESSOR ASSY
- Поз.: 1
2 S109-080856
- S109-080856 - BOLT-SOCKET
- Поз.: 2
3 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 3
4 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 4
5 11N6-90110
- 11N6-90110 - PULLEY-IDLE
- Поз.: 5
6 A4760-508-00-2
- A4760-508-00-2 - BRACKET-PULLEY
- Поз.: 5-1
7 A4700-511-01-2
- A4700-511-01-2 - PULLEY-IDLE
- Поз.: 5-2
8 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 6
9 11N8-97101
- 11N8-97101 - PULLEY-AIR CON
- Поз.: 7
10 S088-070166
- S088-070166 - BOLT-HEX
- UNIFIED
- Поз.: 8
11 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 9
12 11N6-91130
- 11N6-91130 - V-BELT
- Поз.: 10
13 11N6-90250
- 11N6-90250 - V-BELT
- Поз.: 10
14 11Q8-90360
- 11Q8-90360 - HOSE-DISCHARGE
- Поз.: 11
15 A3050-002-05*2
- A3050-002-05*2 - O-RING
- Поз.: 11-1
16 S018-100256
- S018-100256 - BOLT-HEX
- Поз.: 12
17 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 13
18 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 14
19 11Q6-90071
- 11Q6-90071 - CONDENSER-R/DRYER
- Поз.: 15
20 A2W00701D
- A2W00701D - CARTRIDGE ASSY
- Поз.: 15-1
21 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 16
22 S035-083026
- S035-083026 - BOLT-W/WASHER
- Поз.: 17
23 S035-063046
- S035-063046 - BOLT-W/WASHER
- Поз.: 18
24 11Q6-90240
- 11Q6-90240 - FILTER-REC
- Поз.: 23
25 S091-060206
- S091-060206 - BOLT-WING
- Поз.: 24
26 11Q6-90510
- 11Q6-90510 - FILTER-AIR CON
- Поз.: 25
27 S151-040126
- S151-040126 - SCREW-TAPPING
- Поз.: 26
28 31L7-10230
- 31L7-10230 - CLAMP
- Поз.: 27
29 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 28
