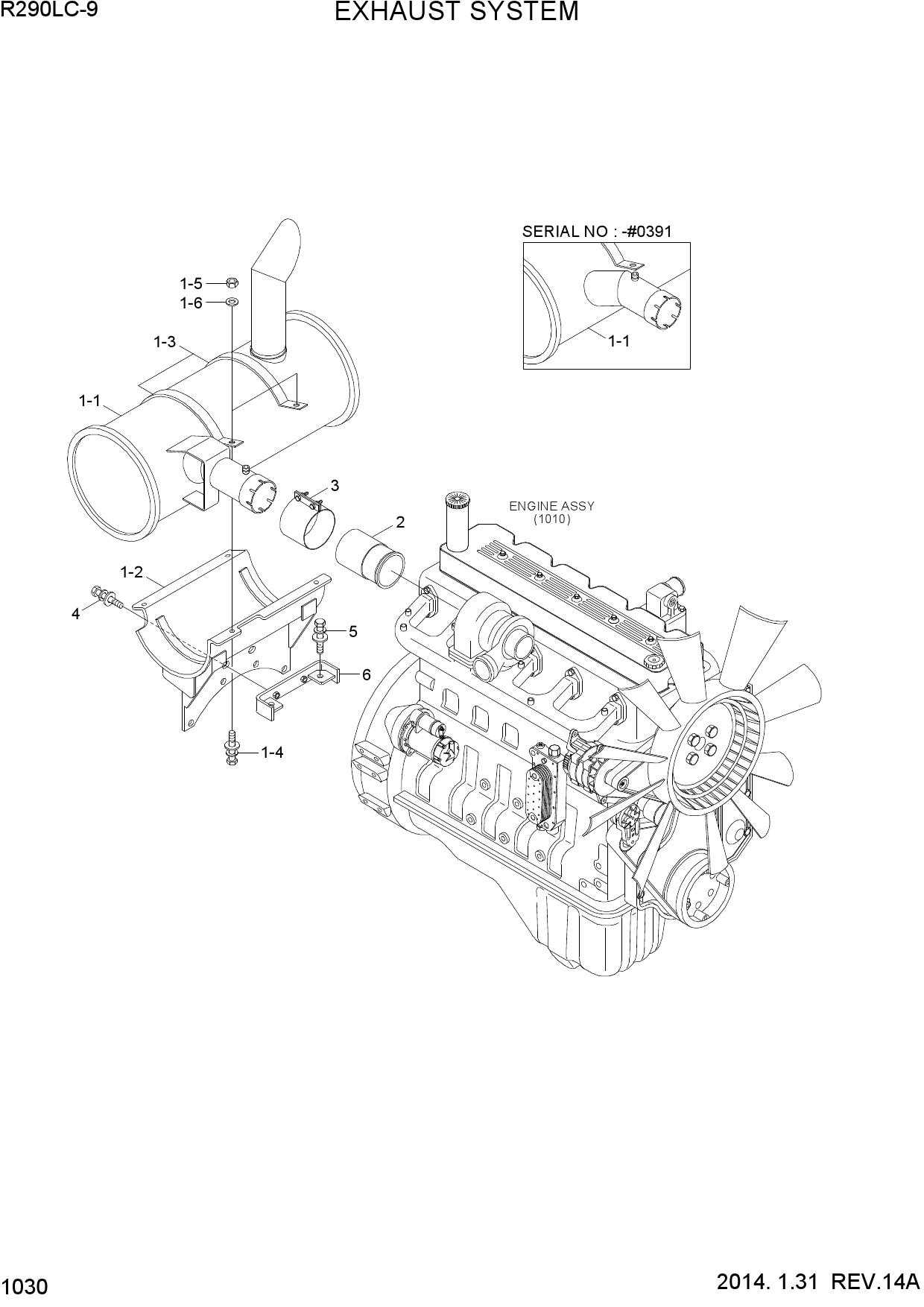

EXHAUST SYSTEM
1 11N8-37003
- 11N8-37003 - MUFFLER SUB ASSY
- Поз.: 1
2 11N8-37004
- 11N8-37004 - MUFFLER SUB ASSY
- Поз.: 1
3 11Q8-30200
- 11Q8-30200 - MUFFLER SUB ASSY
- Поз.: 1
4 11Q8-30201
- 11Q8-30201 - MUFFLER SUB ASSY
- Поз.: 1
5 11N8-37013
- 11N8-37013 - MUFFLER
- Поз.: 1-1
6 11N8-37014
- 11N8-37014 - MUFFLER
- Поз.: 1-1
7 11N8-37015
- 11N8-37015 - MUFFLER
- Поз.: 1-1
8 11N8-37022
- 11N8-37022 - BRACKET-MUFFLER
- Поз.: 1-2
9 11Q8-30210
- 11Q8-30210 - BRACKET-MUFFLER
- Поз.: 1-2
10 11N8-30161
- 11N8-30161 - CLAMP-BAND
- Поз.: 1-3
11 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 1-4
12 S205-10100B
- S205-10100B - NUT-HEX
- Поз.: 1-5
13 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 1-6
14 11N8-33130
- 11N8-33130 - CONNETOR-EXHAUST
- Поз.: 2
15 11N6-30040
- 11N6-30040 - CLAMP-SEAL
- Поз.: 3
16 11LM-50090
- 11LM-50090 - CLAMP ASSY-SEAL
- Поз.: 3
17 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 4
18 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 5
19 11N8-37040
- 11N8-37040 - BRACKET
- Поз.: 6
