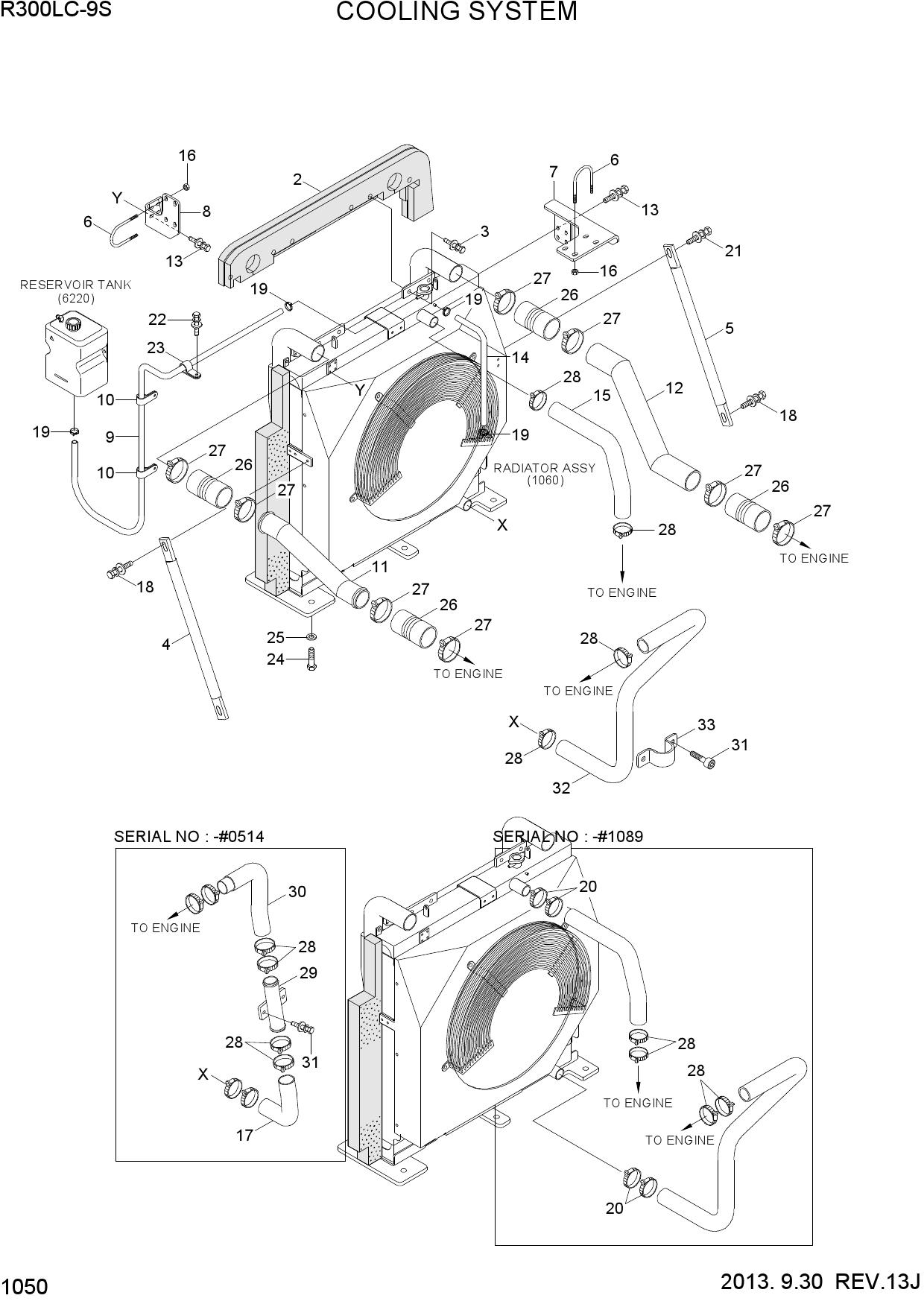

COOLING SYSTEM
1 11Q8-42310
- 11Q8-42310 - SCREEN ASSY
- Поз.: 2
2 S035-081556
- S035-081556 - BOLT-W/WASHER
- Поз.: 3
3 11N8-46150
- 11N8-46150 - STAY
- Поз.: 4
4 11N6-46190
- 11N6-46190 - STAY
- Поз.: 5
5 11N6-43280
- 11N6-43280 - U-BOLT
- Поз.: 6
6 1BQ8-40090
- 1BQ8-40090 - BRACKET
- Поз.: 7
7 1BQ8-40200
- 1BQ8-40200 - BRACKET WA
- Поз.: 8
8 E111-2504
- E111-2504 - HOSE
- Поз.: 9
9 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 10
10 1BQ8-40100
- 1BQ8-40100 - PIPE ASSY
- Поз.: 11
11 1BQ8-40110
- 1BQ8-40110 - PIPE-CAC
- Поз.: 12
12 1BQ8-40111
- 1BQ8-40111 - PIPE-CAC
- Поз.: 12
13 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 13
14 1BQ8-45210
- 1BQ8-45210 - HOSE-VENT
- Поз.: 14
15 1BQ8-40120
- 1BQ8-40120 - HOSE-UPPER
- Поз.: 15
16 S275-12000B
- S275-12000B - NUT-SELF LOCKING
- Поз.: 16
17 1BQ8-40040
- 1BQ8-40040 - HOSE-LOWER(B)
- Поз.: 17
18 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 18
19 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 19
20 S572-720006
- S572-720006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 20
21 S037-102556
- S037-102556 - BOLT-W/WASHER
- Поз.: 21
22 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 22
23 31L7-10190
- 31L7-10190 - CLAMP-TUBE
- Поз.: 23
24 S017-16045D
- S017-16045D - BOLT-HEX
- Поз.: 24
25 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 25
26 IC9275
- IC9275 - HOSE-CAC
- Поз.: 26
27 IC9275-CLAMP
- IC9275-CLAMP - CLAMP-T/BOLT BAND
- Поз.: 27
28 S572-750006
- S572-750006 - CLAMP-HOSE WIRE TYPE
- Поз.: 28
29 S572-750006
- S572-750006 - CLAMP-HOSE WIRE TYPE
- Поз.: 28
30 11Q4-44300
- 11Q4-44300 - CLAMP
- Поз.: 28
31 1BQ8-40160
- 1BQ8-40160 - PIPE WA
- Поз.: 29
32 1BQ8-40170
- 1BQ8-40170 - HOSE-LOWER
- Поз.: 30
33 S037-103526
- S037-103526 - BOLT-W/WASHER
- Поз.: 31
34 S109-100206
- S109-100206 - BOLT-SOCKET
- Поз.: 31
35 11Q8-42530
- 11Q8-42530 - HOSE-LOWER
- Поз.: 32
36 11Q8-42540
- 11Q8-42540 - CLAMP ASSY
- Поз.: 33
