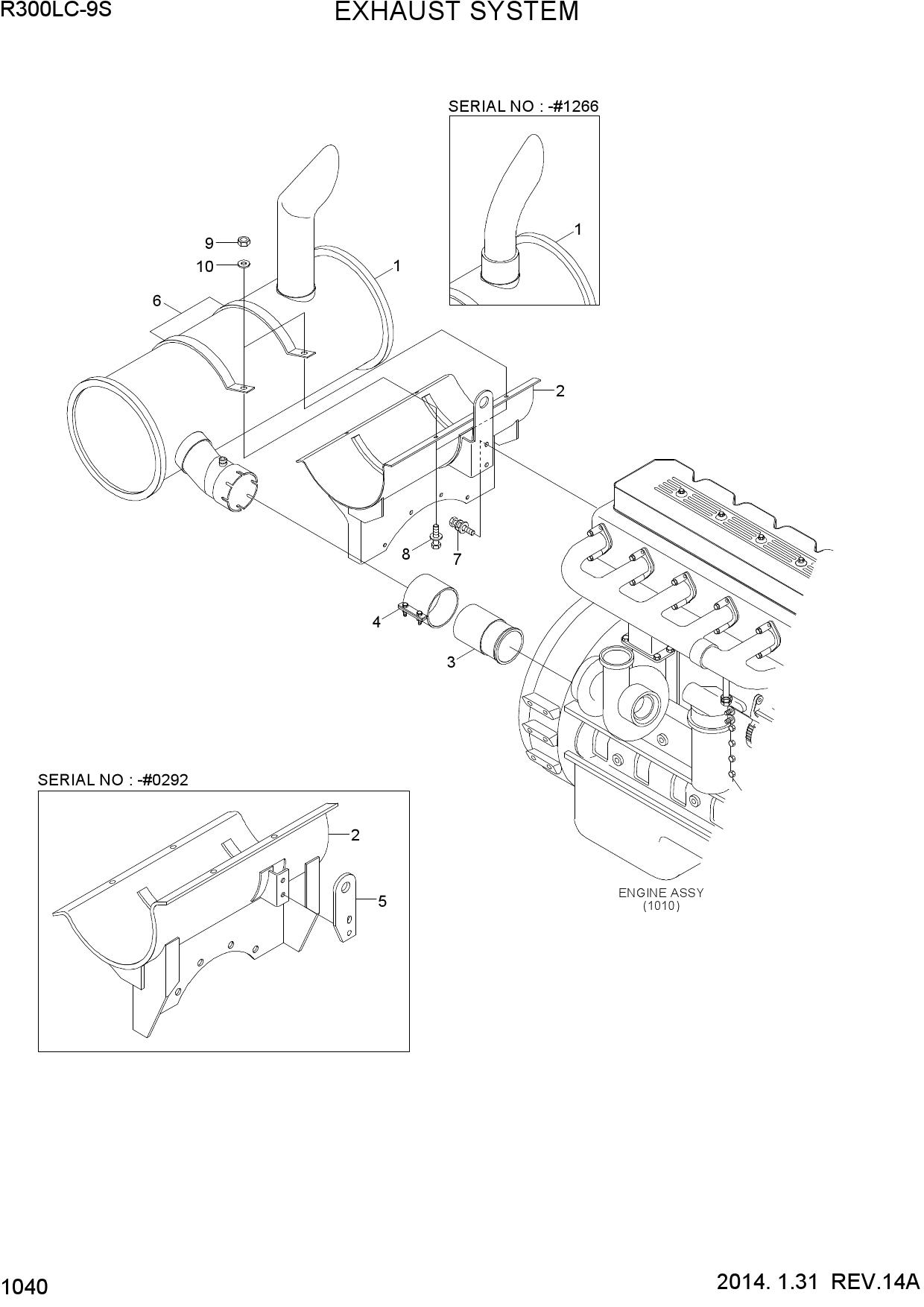

EXHAUST SYSTEM
1 11Q8-30310
- 11Q8-30310 - MUFFLER ASSY
- Поз.: 1
2 11Q8-30311
- 11Q8-30311 - MUFFLER ASSY
- Поз.: 1
3 1BQ8-31010
- 1BQ8-31010 - BRACKET-MUFFLER
- Поз.: 2
4 11Q8-34120
- 11Q8-34120 - BRACKET-MUFFLER
- Поз.: 2
5 11NA-30040
- 11NA-30040 - CONNECTOR-EXHAUST
- Поз.: 3
6 11N6-30050
- 11N6-30050 - SEAL CLAMP ASSY
- Поз.: 4
7 11LK-50160
- 11LK-50160 - SEAL CLAMP ASSY
- Поз.: 4
8 11NA-30050
- 11NA-30050 - BRACKET-LIFT
- Поз.: 5
9 11N8-30161
- 11N8-30161 - CLAMP-BAND
- Поз.: 6
10 S037-123526
- S037-123526 - BOLT-W/WASHER
- Поз.: 7
11 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 7
12 S037-103056
- S037-103056 - BOLT-W/WASHER
- Поз.: 8
13 S205-10100B
- S205-10100B - NUT-HEX
- Поз.: 9
14 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 10
