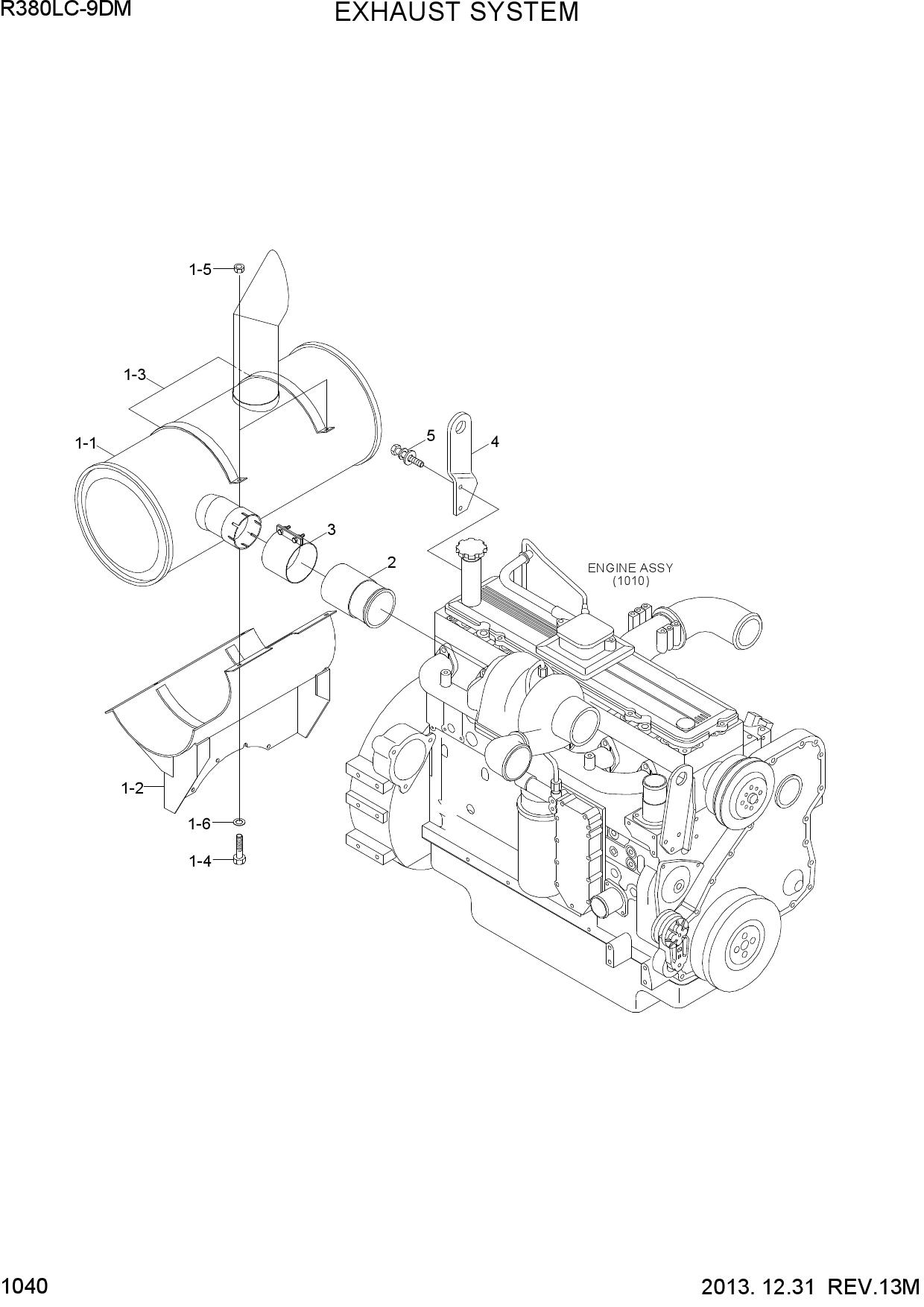

EXHAUST SYSTEM
1 11QA-30050
- 11QA-30050 - MUFFLER SUB ASSY
- Поз.: 1
2 11QA-30051
- 11QA-30051 - MUFFLER SUB ASSY
- Поз.: 1
3 11QA-30030
- 11QA-30030 - MUFFLER WA
- Поз.: 1-1
4 11QA-30031
- 11QA-30031 - MUFFLER WA
- Поз.: 1-1
5 11QA-30040
- 11QA-30040 - BRACKET-MUFFLER
- Поз.: 1-2
6 11NB-31040
- 11NB-31040 - CLAMP-BAND
- Поз.: 1-3
7 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 1-4
8 S205-10100B
- S205-10100B - NUT-HEX
- Поз.: 1-5
9 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 1-6
10 11N8-30110
- 11N8-30110 - CONNECTOR-EXHAUST
- Поз.: 2
11 11LK-50160
- 11LK-50160 - SEAL CLAMP ASSY
- Поз.: 3
12 11NA-33030
- 11NA-33030 - BRACKET-LIFT
- Поз.: 4
13 S037-123526
- S037-123526 - BOLT-W/WASHER
- Поз.: 5
