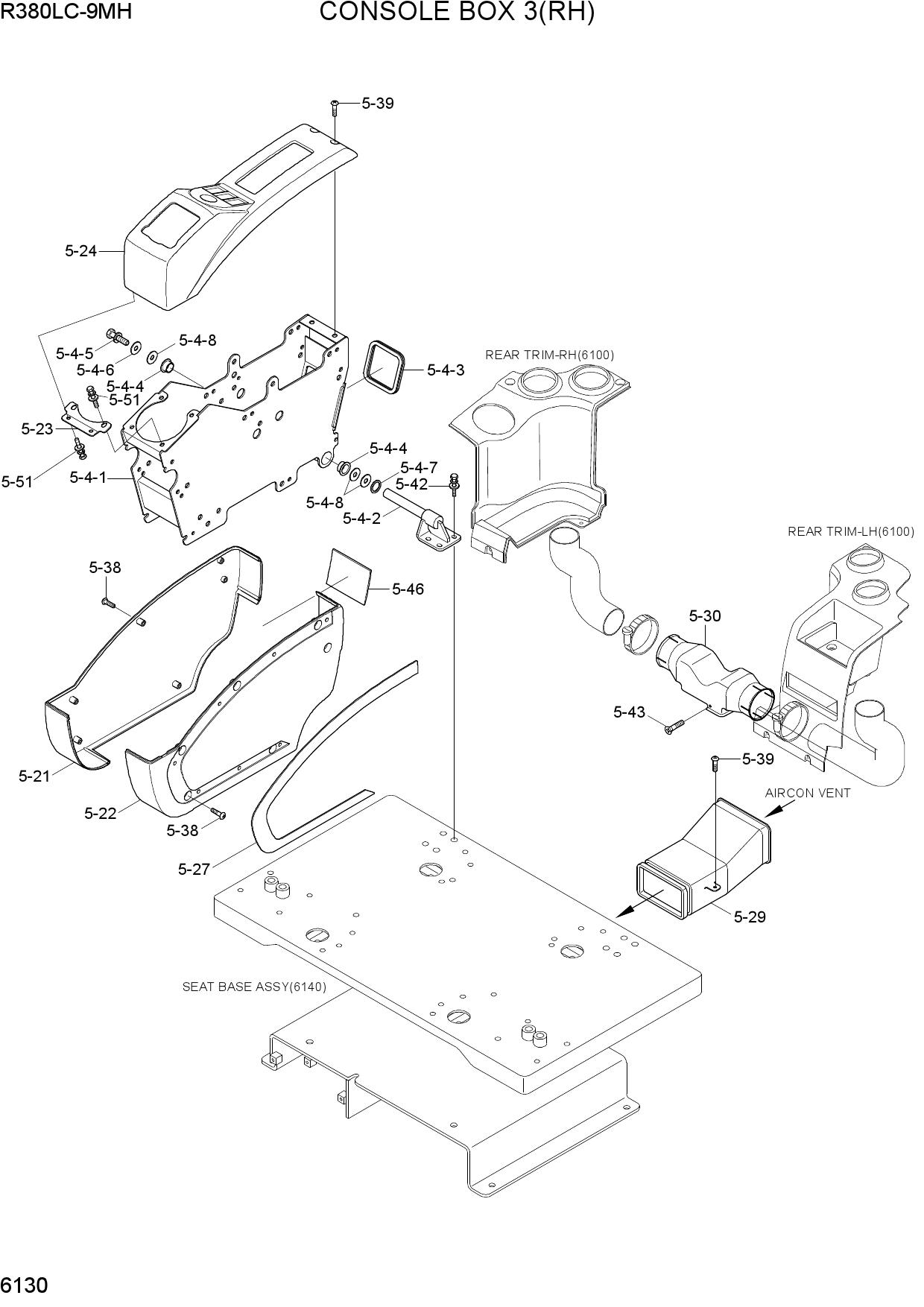

CONSOLE BOX 3(RH)
1 71Q6-23690
- 71Q6-23690 - CONSOLE FRAME ASSY-RH
- Поз.: 5-4
2 71Q4-21341
- 71Q4-21341 - FRAME WA-CONSOLE
- Поз.: 5-4-1
3 71Q6-23720
- 71Q6-23720 - BRACKET WA-CONSOLE
- Поз.: 5-4-2
4 71Q6-21420
- 71Q6-21420 - GROMMET
- Поз.: 5-4-3
5 S731-020020
- S731-020020 - BUSHING-DU
- Поз.: 5-4-4
6 S037-102016
- S037-102016 - BOLT-W/WASHER
- Поз.: 5-4-5
7 71Q6-23700
- 71Q6-23700 - SHIM(2.0T)-ROUND
- Поз.: 5-4-6
8 71Q6-22631
- 71Q6-22631 - SHIM(1.0T)-CONSOLE
- Поз.: 5-4-7
9 71Q6-23080
- 71Q6-23080 - SHIM(1.0T)-CONSOLE
- Поз.: 5-4-8
10 71Q6-22050GG
- 71Q6-22050GG - CONSOLE COVER-LOW
- RH
- Поз.: 5-21
11 71Q6-22010GG
- 71Q6-22010GG - CONSOLE COVER-LOW
- LH
- Поз.: 5-22
12 71Q6-21610
- 71Q6-21610 - BRACKET-CONSOLE UP
- Поз.: 5-23
13 71Q6-22070GG
- 71Q6-22070GG - CONSOLE COVER-UP
- RH
- Поз.: 5-24
14 71Q6-22030
- 71Q6-22030 - CONSOLE COVER-TRIM
- Поз.: 5-27
15 71Q6-22590
- 71Q6-22590 - DUCT-SEAT
- Поз.: 5-29
16 71Q6-22280
- 71Q6-22280 - DUCT-VENT(1)
- Поз.: 5-30
17 S002-06010B
- S002-06010B - SCREW-TRUS HEAD
- Поз.: 5-38
18 S002-06015B
- S002-06015B - SCREW-TRUS HEAD
- Поз.: 5-39
19 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 5-42
20 S151-050106
- S151-050106 - SCREW-TAPPING
- Поз.: 5-43
21 71Q6-22672
- 71Q6-22672 - PROTECTOR
- Поз.: 5-46
22 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 5-51
