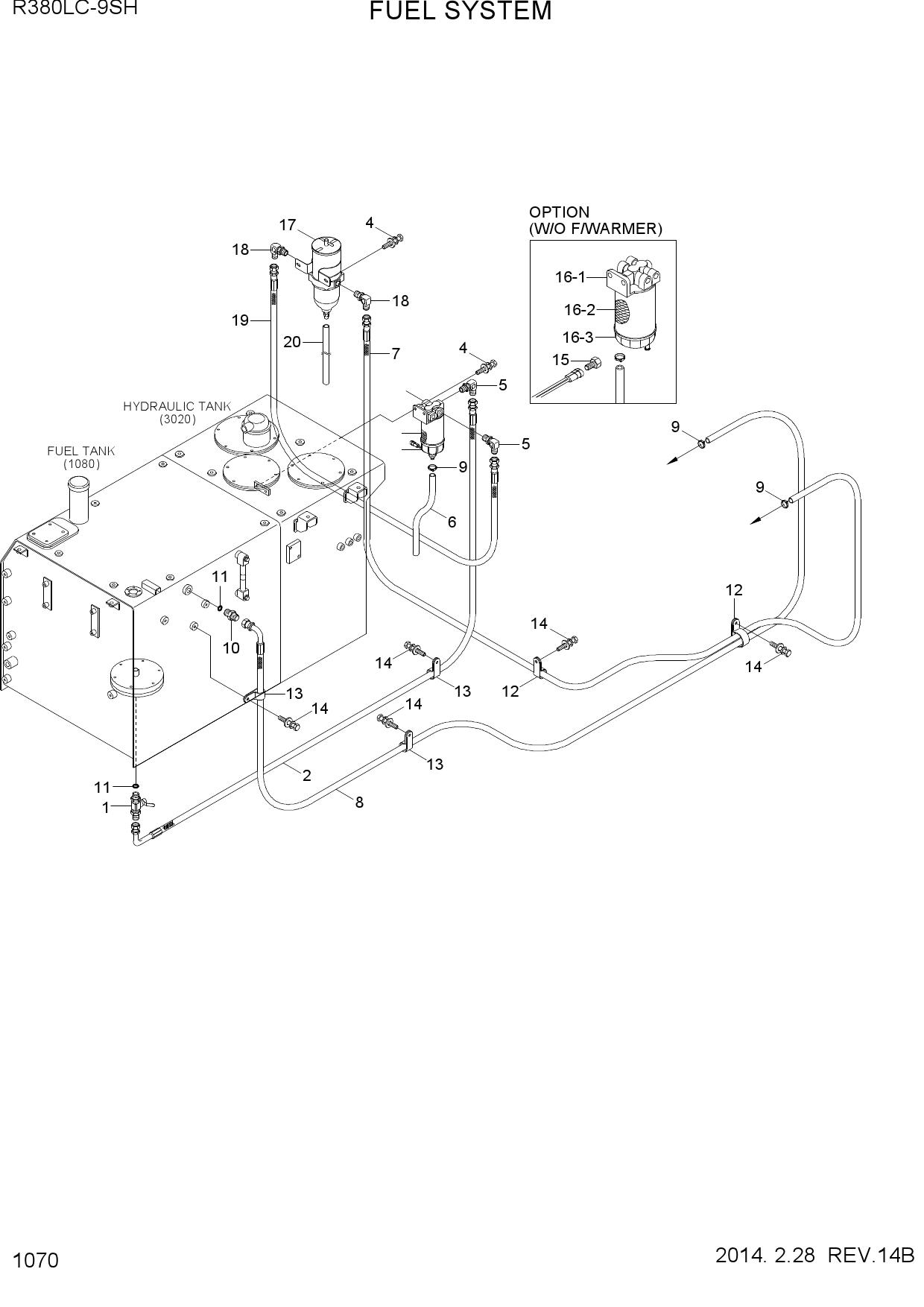

FUEL SYSTEM
1 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 1
2 11Q9-50040
- 11Q9-50040 - HOSE-FUEL
- Поз.: 2
3 11NB-70400
- 11NB-70400 - PREFILTER ASSY
- Поз.: 3
4 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 3-1
5 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 3-2
6 11NB-70410
- 11NB-70410 - BOWL ASSY-W/HEATER
- Поз.: 3-3
7 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 4
8 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 4
9 11LB-20350
- 11LB-20350 - ELBOW-90
- Поз.: 5
10 11N1-50040
- 11N1-50040 - HOSE-DRAIN
- Поз.: 6
11 11N8-57060
- 11N8-57060 - HOSE-FUEL
- Поз.: 7
12 11EN-52020
- 11EN-52020 - HOSE ASSY
- Поз.: 8
13 S520-017000
- S520-017000 - CLAMP-HOSE
- Поз.: 9
14 P010-110015
- P010-110015 - CONNECTOR
- Поз.: 10
15 S631-018004
- S631-018004 - O-RING
- Поз.: 11
16 31L7-10210
- 31L7-10210 - CLAMP-TUBE INS
- Поз.: 12
17 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 13
18 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 14
19 11N8-50070
- 11N8-50070 - PLUG
- Поз.: 15
20 11LB-20300
- 11LB-20300 - PREFILTER ASSY
- Поз.: 16
21 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 16-1
22 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 16-2
23 11LD-20260
- 11LD-20260 - BOWL ASSY-W/KNOB
- Поз.: 16-3
24 11QG-50010
- 11QG-50010 - FILTER ASSY
- Поз.: 17
25 P020-310006
- P020-310006 - ELBOW-90
- Поз.: 18
26 P460-080022
- P460-080022 - HOSE ASSY-FUEL(0X0 )
- Поз.: 19
27 11N8-50112
- 11N8-50112 - HOSE ASSY
- Поз.: 20
