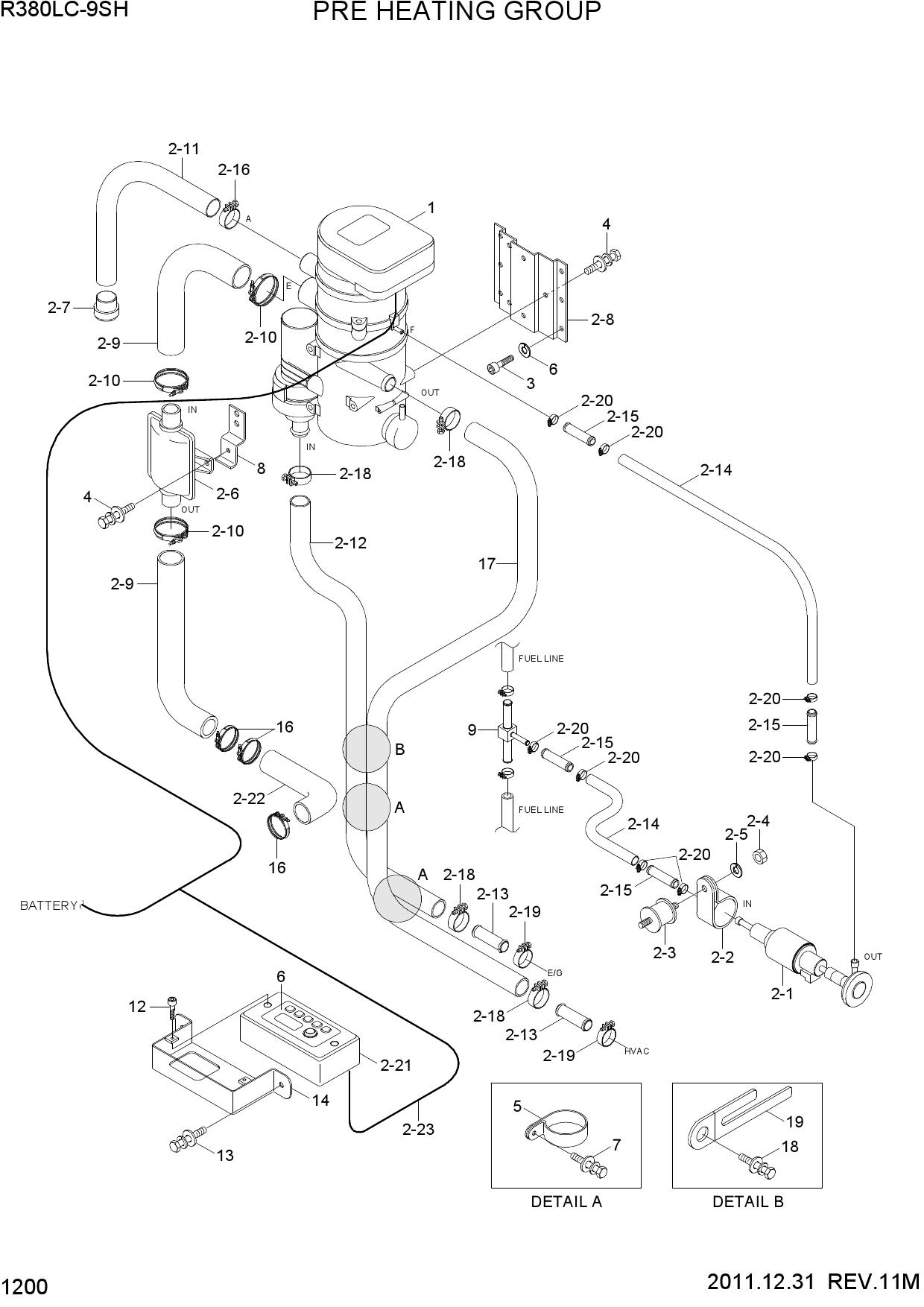

PRE HEATING GROUP
1 11N8-90610
- 11N8-90610 - PRE HEATER ASSY
- Поз.: 1
2 11Q8-90610
- 11Q8-90610 - INSTALLATION KIT
- Поз.: 2
3 11N8-90650
- 11N8-90650 - SILENCER ASSY
- Поз.: 2-6
4 11N8-90660
- 11N8-90660 - BRACKET
- Поз.: 2-8
5 11N8-90680
- 11N8-90680 - HOSE
- Поз.: 2-9
6 11N8-90690
- 11N8-90690 - CLAMP-EXHAUST PIPE
- Поз.: 2-10
7 11N8-90700
- 11N8-90700 - HOSE-INTAKE
- Поз.: 2-11
8 11N8-90710
- 11N8-90710 - HOSE
- Поз.: 2-12
9 11N8-90720
- 11N8-90720 - CONNECTOR-HOSE
- Поз.: 2-13
10 11N8-90740
- 11N8-90740 - HOSE
- Поз.: 2-14
11 11N8-90750
- 11N8-90750 - HOSE
- Поз.: 2-15
12 11N8-90670
- 11N8-90670 - FRONT CASE-TIMER
- Поз.: 2-21
13 11Q8-01220
- 11Q8-01220 - TUBE-EXHAUST TUBE
- Поз.: 2-22
14 21Q8-90800
- 21Q8-90800 - HARNESS-PREHEATER
- Поз.: 2-23
15 S109-060156
- S109-060156 - BOLT-SOCKET
- Поз.: 3
16 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 4
17 31L7-10260
- 31L7-10260 - CLAMP-TUBE
- Поз.: 5
18 11N8-90630
- 11N8-90630 - TIMER-CONTROL
- Поз.: 6
19 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 7
20 11Q8-94130
- 11Q8-94130 - BRACKET-SILENCER
- Поз.: 8
21 11Q8-94060
- 11Q8-94060 - TEE-FUEL
- Поз.: 9
22 S035-063026
- S035-063026 - BOLT-W/WASHER
- Поз.: 12
23 S161-040106
- S161-040106 - SCREW-CROSS R/ROUND
- Поз.: 13
24 11Q8-94051
- 11Q8-94051 - BRACKET-TIMER
- Поз.: 14
25 S520-040000
- S520-040000 - CLAMP-HOSE
- Поз.: 16
26 11Q8-94040
- 11Q8-94040 - HOSE-HEATER
- Поз.: 17
27 S037-122526
- S037-122526 - BOLT-W/WASHER
- Поз.: 18
28 S593-001702
- S593-001702 - CLIP-HARNESS
- Поз.: 19
