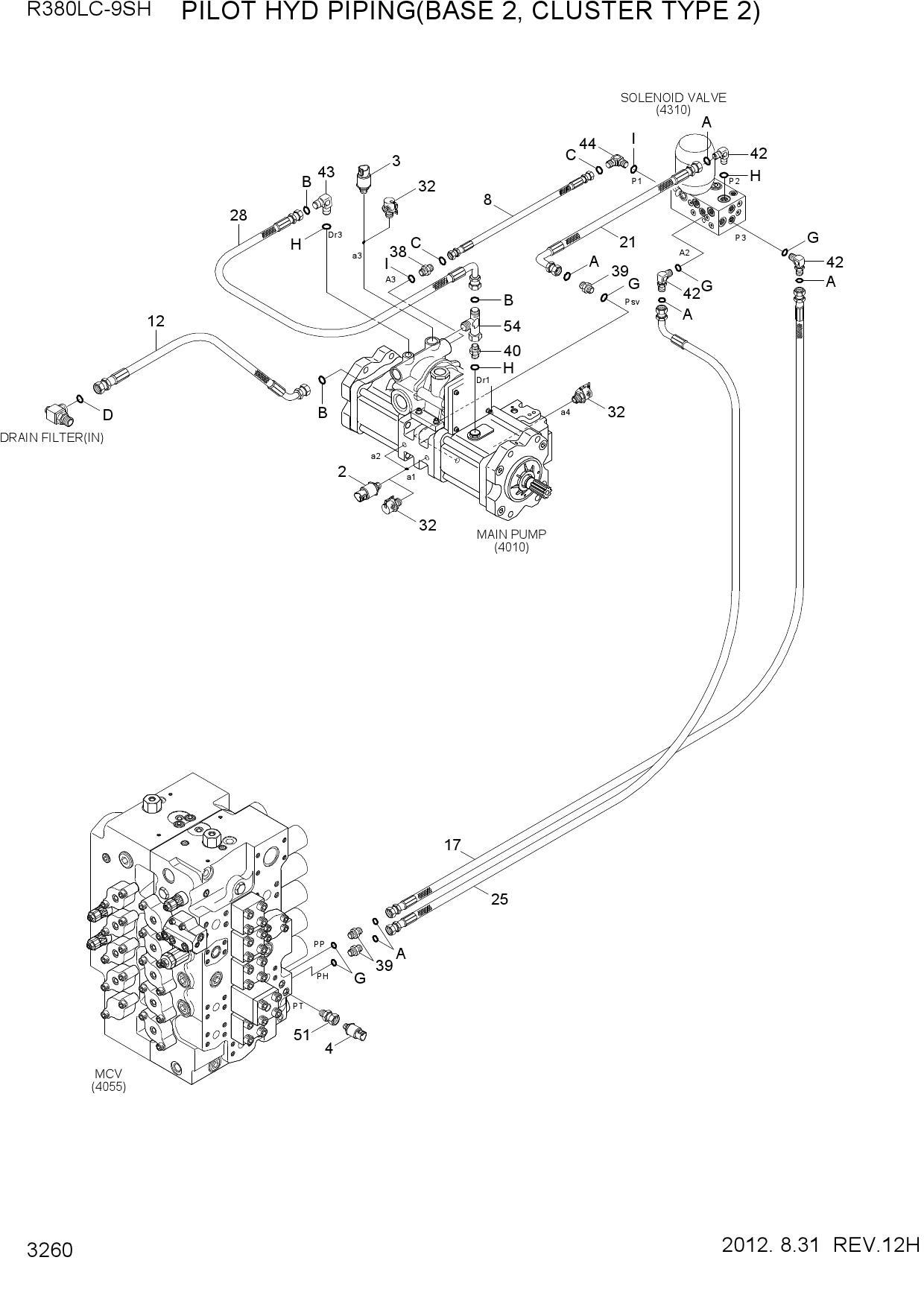

PILOT HYD PIPING(BASE 2, CLUSTER TYPE 2)

PILOT HYD PIPING(BASE 2, CLUSTER TYPE 2)

PILOT HYD PIPING(BASE 2, CLUSTER TYPE 2)

1 31Q4-40600

  • 31Q4-40600 - SENSOR-PRESSURE
  • Поз.: 2

2 31Q4-40601

  • 31Q4-40601 - SENSOR-PRESSURE
  • Поз.: 2

3 31Q4-40620

  • 31Q4-40620 - SENSOR-PRESSURE
  • Поз.: 3

4 31Q4-40830

  • 31Q4-40830 - SENSOR-PRESSURE
  • Поз.: 3

5 31Q4-40860

  • 31Q4-40860 - SWITCH-PRESSURE
  • Поз.: 4

6 P910-082016

  • P910-082016 - HOSE ASSY-ORFS 0X0
  • Поз.: 8

7 P920-122012

  • P920-122012 - HOSE ASSY-ORFS 0X45
  • Поз.: 12

8 X400-042044

  • X400-042044 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 17

9 X420-042010

  • X420-042010 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 21

10 X420-042041

  • X420-042041 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 25

11 X420-062011

  • X420-062011 - HOSE ASSY-ORFS 0X90
  • Поз.: 28

12 31EK-11130

  • 31EK-11130 - COUPLING-SCREW
  • Поз.: 32

13 X500-110003

  • X500-110003 - CONNECTOR-ORFS
  • Поз.: 38

14 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 39

15 X500-110004

  • X500-110004 - CONNECTOR-ORFS
  • Поз.: 40

16 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 42

17 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 43

18 X520-110003

  • X520-110003 - ELBOW-90
  • ORFS
  • Поз.: 44

19 31NB-20190

  • 31NB-20190 - ELBOW-90
  • ORFS
  • Поз.: 51

20 X840-545452

  • X840-545452 - TEE-R/TYPE
  • SWIVEL
  • ORFS
  • Поз.: 54
