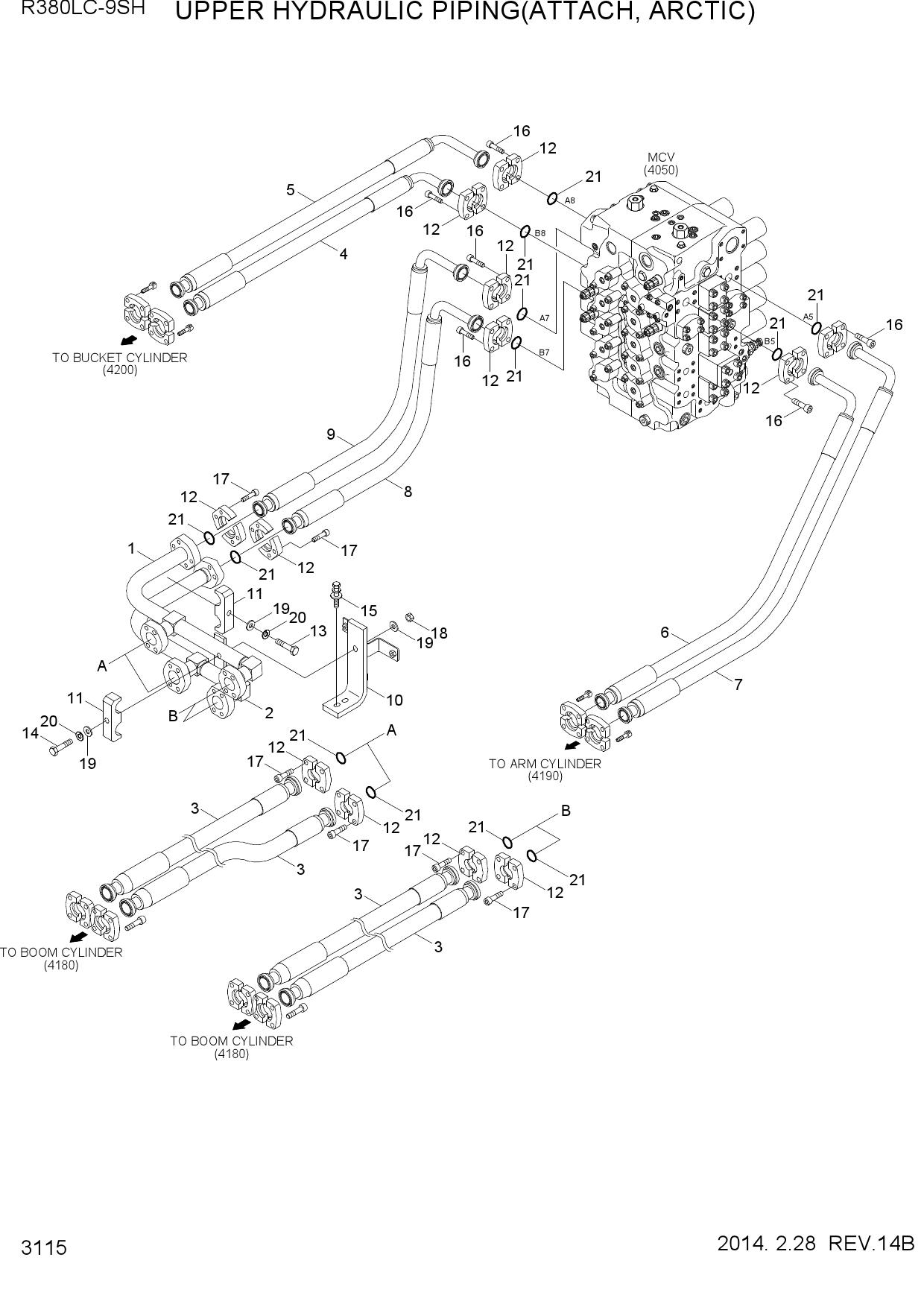

UPPER HYD PIPING(ATTACH, ARCTIC)

UPPER HYD PIPING(ATTACH, ARCTIC)

UPPER HYD PIPING(ATTACH, ARCTIC)

1 31QA-11311

  • 31QA-11311 - PIPE WA
  • Поз.: 1

2 31QA-11321

  • 31QA-11321 - PIPE WA
  • Поз.: 2

3 31QA-14390

  • 31QA-14390 - HOSE ASSY-FLG(0X0)
  • Поз.: 3

4 31QA-14391

  • 31QA-14391 - HOSE ASSY-FLG(0X0)
  • Поз.: 3

5 31QA-11690

  • 31QA-11690 - HOSE ASSY(HI-GRADE)
  • Поз.: 3

6 31QA-14230

  • 31QA-14230 - HOSE ASSY
  • Поз.: 4

7 31QA-14231

  • 31QA-14231 - HOSE ASSY
  • Поз.: 4

8 31QA-14240

  • 31QA-14240 - HOSE ASSY
  • Поз.: 5

9 31QA-14241

  • 31QA-14241 - HOSE ASSY
  • Поз.: 5

10 31QA-14300

  • 31QA-14300 - HOSE ASSY
  • Поз.: 6

11 31QA-14301

  • 31QA-14301 - HOSE ASSY
  • Поз.: 6

12 31QA-14310

  • 31QA-14310 - HOSE ASSY
  • Поз.: 7

13 31QA-14311

  • 31QA-14311 - HOSE ASSY
  • Поз.: 7

14 31QA-12210

  • 31QA-12210 - HOSE ASSY-FLG 0X90
  • Поз.: 8

15 31QA-12220

  • 31QA-12220 - HOSE ASSY-FLG 0X90
  • Поз.: 9

16 31QA-11570

  • 31QA-11570 - BRACKET WA
  • Поз.: 10

17 31QA-11430

  • 31QA-11430 - CLAMP
  • Поз.: 11

18 P174-200106

  • P174-200106 - FLANGE-SPLIT
  • Поз.: 12

19 S017-120806

  • S017-120806 - BOLT-HEX
  • Поз.: 13

20 S017-121056

  • S017-121056 - BOLT-HEX
  • Поз.: 14

21 S037-123026

  • S037-123026 - BOLT-W/WASHER
  • Поз.: 15

22 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 16

23 S109-120506

  • S109-120506 - BOLT-SOCKET
  • Поз.: 17

24 S205-12100B

  • S205-12100B - NUT-HEX
  • Поз.: 18

25 S403-12200B

  • S403-12200B - WASHER-PLAIN
  • Поз.: 19

26 S411-120006

  • S411-120006 - WASHER-SPRING
  • Поз.: 20

27 31Q8-02700

  • 31Q8-02700 - O-RING
  • Поз.: 21
