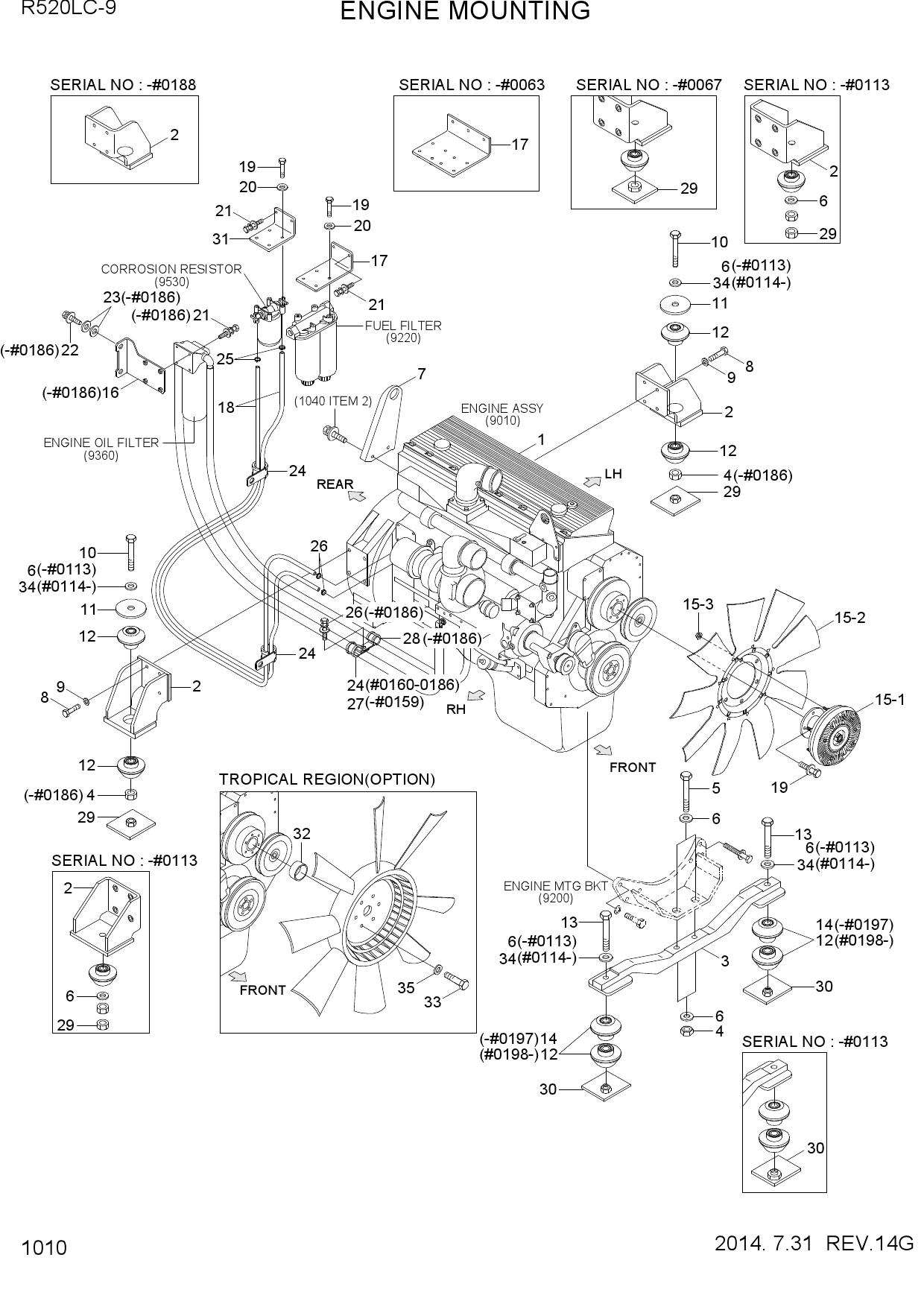

ENGINE MOUNTING
1 11QB-00010
- 11QB-00010 - ENGINE ASSY
- Поз.: 1
2 11QB-00011
- 11QB-00011 - ENGINE ASSY
- Поз.: 1
3 11QB-00012
- 11QB-00012 - ENGINE ASSY
- Поз.: 1
4 11NB-00031
- 11NB-00031 - BRACKET WA-REAR
- Поз.: 2
5 11NB-00032
- 11NB-00032 - BRACKET WA-REAR
- Поз.: 2
6 11NB-00033
- 11NB-00033 - BRACKET WA-REAR
- Поз.: 2
7 14E7-00731
- 14E7-00731 - HANGER WA
- Поз.: 3
8 14E7-00732
- 14E7-00732 - MOUNT WA
- Поз.: 3
9 S205-20100B
- S205-20100B - NUT-HEX
- Поз.: 4
10 S205-20100B
- S205-20100B - NUT-HEX
- Поз.: 4
11 S205-20100B
- S205-20100B - NUT-HEX
- Поз.: 4
12 S205-20100B
- S205-20100B - NUT-HEX
- Поз.: 4
13 S017-20110D
- S017-20110D - BOLT-HEX
- Поз.: 5
14 S441-200006
- S441-200006 - WASHER-HARDENED
- Поз.: 6
15 S441-200006
- S441-200006 - WASHER-HARDENED
- Поз.: 6
16 S441-200006
- S441-200006 - WASHER-HARDENED
- Поз.: 6
17 11NB-00080
- 11NB-00080 - BRACKET-LIFT
- Поз.: 7
18 S017-16050D
- S017-16050D - BOLT-HEX
- Поз.: 8
19 S403-161006
- S403-161006 - WASHER-PLAIN
- Поз.: 9
20 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 9
21 11QB-02150
- 11QB-02150 - BOLT-HEX
- Поз.: 10
22 11QB-02210
- 11QB-02210 - BOLT-HEX
- Поз.: 10
23 11QB-02211
- 11QB-02211 - BOLT-HEX
- Поз.: 10
24 S017-22160D
- S017-22160D - BOLT-HEX
- Поз.: 10
25 14E7-01340
- 14E7-01340 - WASHER-REBOUND
- Поз.: 11
26 11QE-00210
- 11QE-00210 - WASHER-MOUNT
- Поз.: 11
27 14E7-01550
- 14E7-01550 - RUBBER-MOUNT
- Поз.: 12
28 11QE-00200
- 11QE-00200 - RUBBER-MOUNT
- Поз.: 12
29 11QB-00180
- 11QB-00180 - RUBBER-MOUNT
- Поз.: 12
30 11QB-02160
- 11QB-02160 - BOLT-HEX
- Поз.: 13
31 S017-22175D
- S017-22175D - BOLT-HEX
- Поз.: 13
32 14E7-01310
- 14E7-01310 - RUBBER-MOUNT
- Поз.: 14
33 11QB-02220
- 11QB-02220 - RUBBER-MOUNT
- Поз.: 14
34 11Q6-00410
- 11Q6-00410 - FAN CLUTCH ASSY
- Поз.: 15
35 11Q6-00411
- 11Q6-00411 - FAN CLUTCH ASSY
- Поз.: 15
36 11Q6-01170
- 11Q6-01170 - CLUTCH-FAN
- Поз.: 15-1
37 11Q6-01210
- 11Q6-01210 - FAN
- Поз.: 15-2
38 S285-081006
- S285-081006 - NUT-FLANGED
- Поз.: 15-3
39 11QB-00120
- 11QB-00120 - FAN-COOLING
- Поз.: 15
40 11QB-00121
- 11QB-00121 - COOLING FAN
- Поз.: 15
41 11QB-00081
- 11QB-00081 - BRACKET MTG
- Поз.: 16
42 11QB-00082
- 11QB-00082 - BRACKET-MTG
- Поз.: 16
43 11QB-00100
- 11QB-00100 - BRACKET-FILTER MTG
- Поз.: 17
44 11QB-00140
- 11QB-00140 - BRACKET-FILTER
- Поз.: 17
45 11QB-40300
- 11QB-40300 - HOSE-OVER FLOW
- Поз.: 18
46 11QB-00150
- 11QB-00150 - HOSE-OVER FLOW
- Поз.: 18
47 S087-060246
- S087-060246 - BOLT-HEX
- UNIFIED
- Поз.: 19
48 S087-060246
- S087-060246 - BOLT-HEX
- UNIFIED
- Поз.: 19
49 S403-10100B
- S403-10100B - WASHER-PLAIN
- Поз.: 20
50 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 21
51 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 21
52 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 21
53 S017-20065D
- S017-20065D - BOLT-HEX
- Поз.: 22
54 S403-201006
- S403-201006 - WASHER-PLAIN
- Поз.: 23
55 31L7-10210
- 31L7-10210 - CLAMP-TUBE INS
- Поз.: 24
56 31L7-10210
- 31L7-10210 - CLAMP-TUBE INS
- Поз.: 24
57 31L7-10210
- 31L7-10210 - CLAMP-TUBE INS
- Поз.: 24
58 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 25
59 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 26
60 31L7-10240
- 31L7-10240 - CLAMP-TUBE INS
- Поз.: 27
61 31L7-10220
- 31L7-10220 - CLAMP-TUBE
- INS SINGLE
- Поз.: 28
62 11QB-02130
- 11QB-02130 - NUT-STOPPER
- Поз.: 29
63 11QB-02131
- 11QB-02131 - STOPPER
- Поз.: 29
64 S275-20000B
- S275-20000B - NUT-SELF LOCKING
- Поз.: 29
65 11QE-00180
- 11QE-00180 - NUT-STOPPER
- Поз.: 29
66 11QB-02140
- 11QB-02140 - NUT-STOPPER
- Поз.: 30
67 11QB-02141
- 11QB-02141 - STOPPER
- Поз.: 30
68 11QA-01100
- 11QA-01100 - NUT-STOPPER
- Поз.: 30
69 11QB-00130
- 11QB-00130 - BRACKET-FILTER
- Поз.: 31
70 11QB-00110
- 11QB-00110 - SPACER
- Поз.: 32
71 S087-060566
- S087-060566 - BOLT-HEX
- UNIFIED
- Поз.: 33
72 S087-060726
- S087-060726 - BOLT-HEX
- UNIFIED
- Поз.: 33
73 S441-220006
- S441-220006 - WASHER-HARDENED
- Поз.: 34
74 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 35
